Analog Devices Quadrature Demodulator ADL5387 Evaluation Board 30 MHz → 2 GHz ADL5387-EVALZ
- RS-artikelnummer:
- 832-9564
- Tillv. art.nr:
- ADL5387-EVALZ
- Tillverkare / varumärke:
- Analog Devices
1 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
2 756,31 kr
(exkl. moms)
3 445,39 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 1 | 2 756,31 kr |
| 2 - 4 | 2 685,67 kr |
| 5 + | 2 618,57 kr |
- RS-artikelnummer:
- 832-9564
- Tillv. art.nr:
- ADL5387-EVALZ
- Tillverkare / varumärke:
- Analog Devices
Lagstiftning och ursprungsland
Produktdetaljer

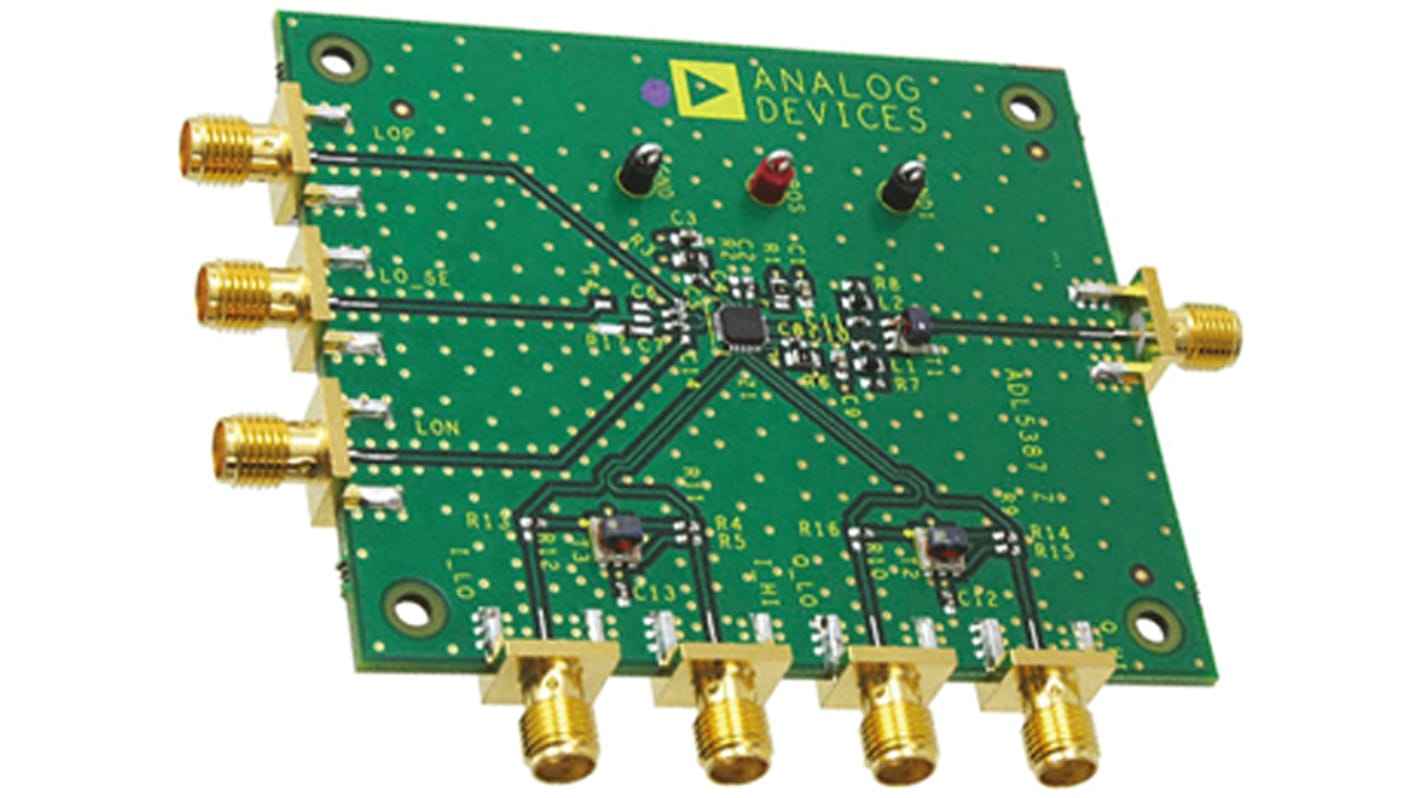

Evaluation Board for ADL5387 Quadrature Demodulator
The ADL5387-EVALZ is an evaluation board for the ADL5387 broadband quadrature I/Q demodulator. The ADL5387 covers an RF/IF input frequency range from 30 MHz to 2 GHz. The board is designed for easy evaluation of the features of the ADL5387 device.
The ADL5387-EVALZ is a fully populated, 4-layer, FR4-based board. The evaluation board integrates bypassable transformers to allow single ended or differential baseband I and Q outputs and the evaluation board requires only a single supply within the range of 4.75 V to 5.25 V.
The ADL5387-EVALZ is a fully populated, 4-layer, FR4-based board. The evaluation board integrates bypassable transformers to allow single ended or differential baseband I and Q outputs and the evaluation board requires only a single supply within the range of 4.75 V to 5.25 V.
RF & Microwave, Analog Devices
Specifikationer
Attribute | Value |
|---|---|
| Kit Classification | Evaluation Board |
| Featured Device | ADL5387 |
| Frequency | 30 MHz → 2 GHz |
| Kit Name | Quadrature Demodulator |
