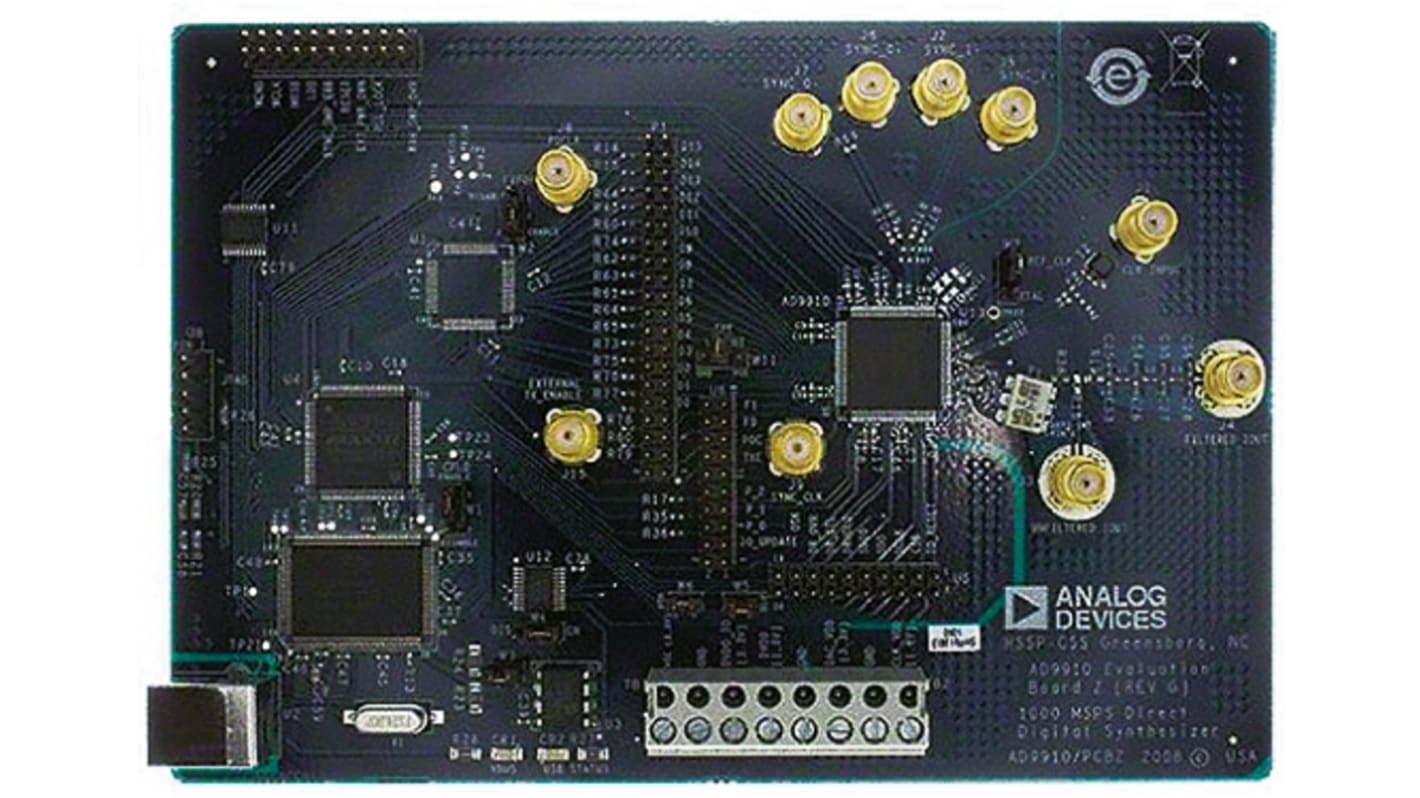

Analog Devices AD9910/PCBZ, AD9910 Direct Digital Synthesiser (DDS) Evaluation Board

  • RS-artikelnummer 758-9531
  • Tillv. art.nr AD9910/PCBZ
  • Tillverkare / varumärke Analog Devices
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

Evaluation Board for AD9910, 1GSPS DDS with 14-Bit DAC

Full-featured evaluation board for the AD9910
The AD9910 is a 1 GSPS Direct Digital Synthesis (DDS) with a 14-bit Digital-to-Analogue Converter (DAC)
PC evaluation software for control and measurement of the AD9910
USB interface
Graphic user interface (GUI) software with frequency sweep capability for board control and data analysis

RF & Microwave, Analog Devices

Specifikationer
Attribute Value
RF Technology Direct Digital Synthesiser (DDS)
Kit Classification Evaluation Kit
Featured Device AD9910
10 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
6 191,80 kr
(exkl. moms)
7 739,75 kr
(inkl. moms)
Enheter
Per unit
1 +
6 191,80 kr
