Seeed Studio Grove - Optocoupler Relay M281 Module 101020603
- RS-artikelnummer:
- 188-7075
- Tillv. art.nr:
- 101020603
- Tillverkare / varumärke:
- Seeed Studio
4 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
72,68 kr
(exkl. moms)
90,85 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 72,68 kr |
| 5 - 9 | 67,83 kr |
| 10 + | 63,25 kr |
- RS-artikelnummer:
- 188-7075
- Tillv. art.nr:
- 101020603
- Tillverkare / varumärke:
- Seeed Studio
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer

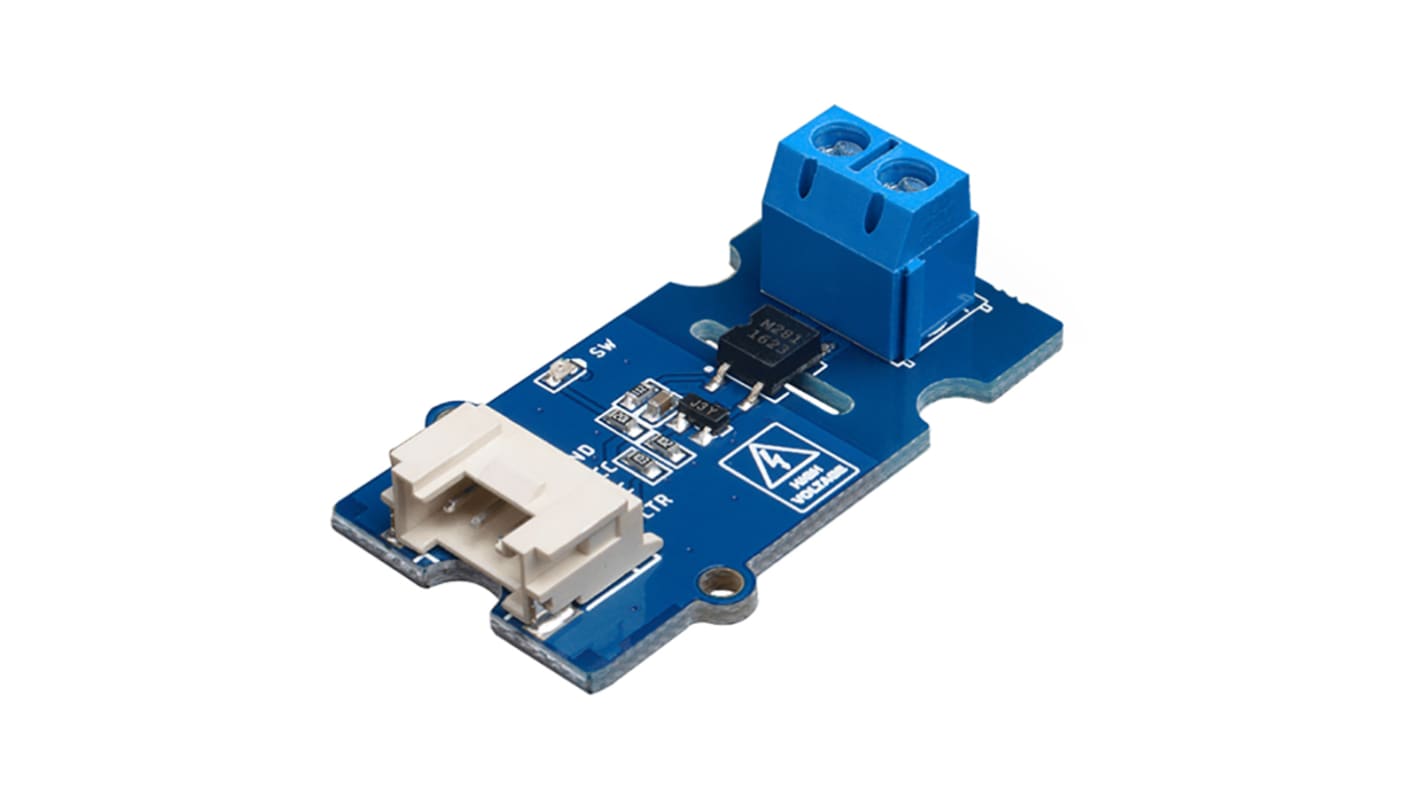

This module is a bi-directional SPSD(single-pole, single-throw), normally open solid state relay(SSR). The Grove Optocoupler Relay (M281) offers very low on-resistance, which allowing a high load current rating. Unlike the other TRIAC SSR in our website, this relay is based on MOSFET, so it can carry both AC load and DC load.
Low on-resistance(0.5Ω MAX.)
1A continuous load current
60V load voltage rating
Low input control current(3mA TYP.)
High input-to-output isolation(1.5kV MIN.)
Applications
Automated Test Equipment
Meter reading systems
Medical equipment
Battery monitoring
Multiplexers
1A continuous load current
60V load voltage rating
Low input control current(3mA TYP.)
High input-to-output isolation(1.5kV MIN.)
Applications
Automated Test Equipment
Meter reading systems
Medical equipment
Battery monitoring
Multiplexers
Specifikationer
Attribute | Value |
|---|---|
| Kit Classification | Module |
| Featured Device | M281 |
| Kit Name | Grove - Optocoupler Relay |
