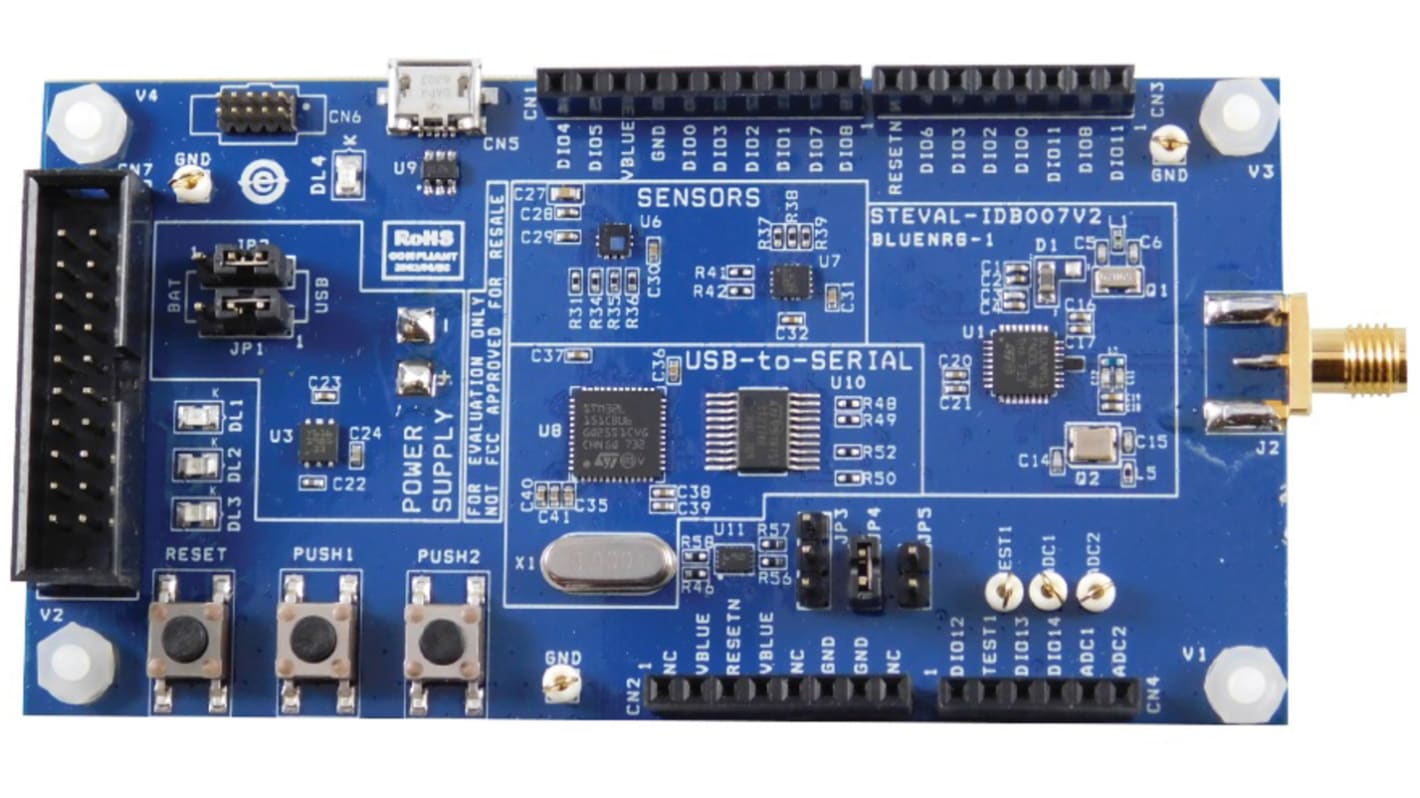

STMicroelectronics Evaluation Board
The STMicroelectronics evaluation board is a platform based on the BlueNRG-1, low power Bluetooth smart system on a chip, compliant with the Bluetooth® specification and supporting master, slave and simultaneous master-and-slave roles. It has three power options (USB only, battery-only and external power supply plus USB) for high application development and testing flexibility. This contains a battery holder and comes with a JTAG debug connector.
Features and Benefits:
• 3D digital accelerometer and 3D digital gyroscope
• Associated BlueNRG-1 development kit SW package including firmware and documentation
• Bluetooth low energy compliant, supports master, slave and simultaneous master-and-slave roles
• Excellent receiver sensitivity (-88dBm)
• Jumper for measuring current for BlueNRG-1 only
• MEMS pressure sensor with an embedded temperature sensor
• New integrated balun BALF-NRG-02D3 that integrates a matching network and harmonics filter
• SMA connector for antenna or measuring equipment
• Up to +8dBm available output power (at antenna connector)
• USB to the serial bridge for providing I/O channel with the BlueNRG-1 device
• Very low power consumption: 7.7mA RX and 8.2mA TX at +0dBm
• Associated BlueNRG-1 development kit SW package including firmware and documentation
• Bluetooth low energy compliant, supports master, slave and simultaneous master-and-slave roles
• Excellent receiver sensitivity (-88dBm)
• Jumper for measuring current for BlueNRG-1 only
• MEMS pressure sensor with an embedded temperature sensor
• New integrated balun BALF-NRG-02D3 that integrates a matching network and harmonics filter
• SMA connector for antenna or measuring equipment
• Up to +8dBm available output power (at antenna connector)
• USB to the serial bridge for providing I/O channel with the BlueNRG-1 device
• Very low power consumption: 7.7mA RX and 8.2mA TX at +0dBm
Applications:
• Debug message management through USB
• Remote control (buttons and LEDs)
• Sensor data (accelerometer, pressure and temperature sensor),
• Remote control (buttons and LEDs)
• Sensor data (accelerometer, pressure and temperature sensor),
Specifikationer
Attribute | Value |
---|---|
Kit Classification | Development Kit |
For Use With | BlueNRG-1 |
Featured Device | STEVAL-IDB007V2 |
Kit Name | Evaluation Board |
