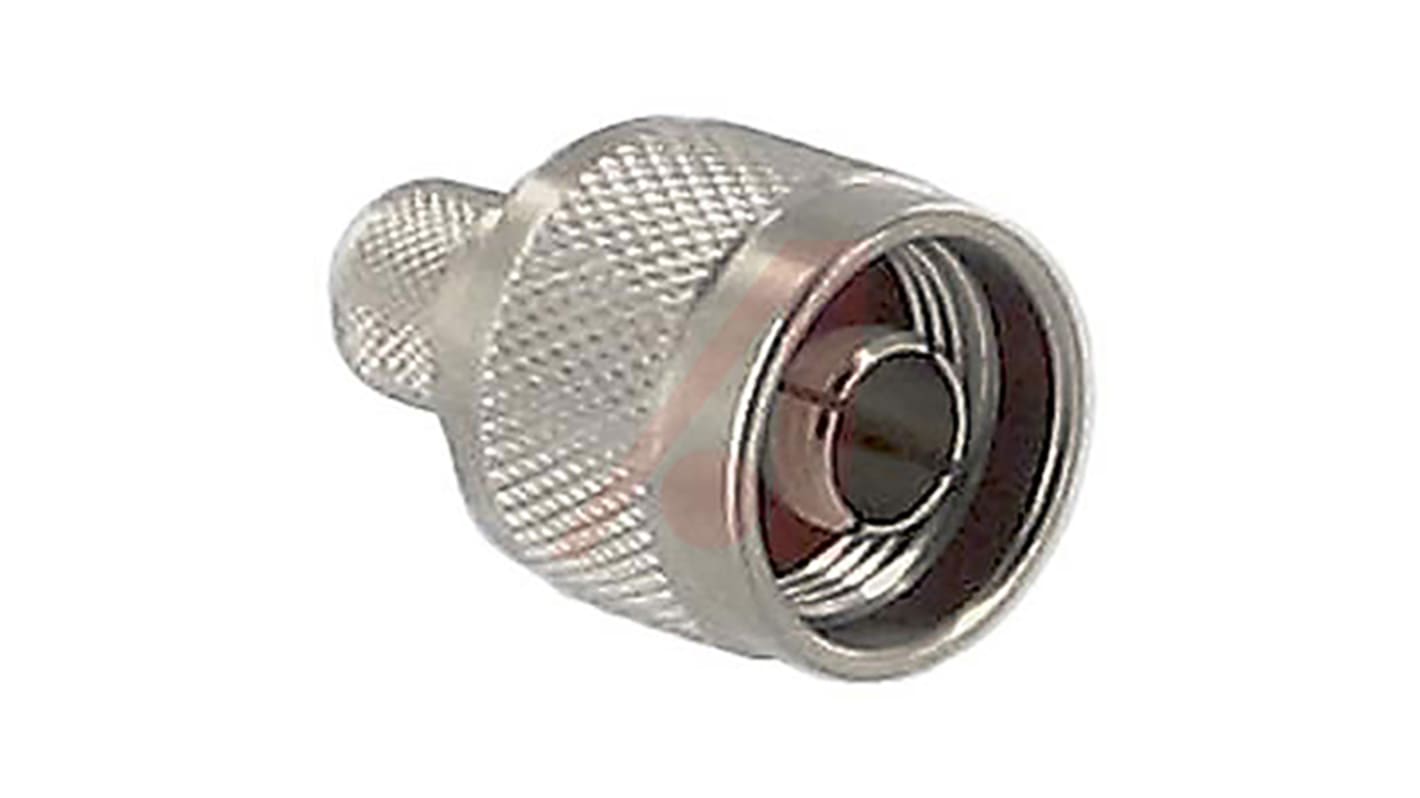

Cinch Connectors 50Ω Straight Cable Mount N Connector, Plug, RG8

  • RS-artikelnummer 885-8453
  • Tillv. art.nr CPN688
  • Tillverkare / varumärke Cinch Connectors
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): TW
Produktdetaljer

Type N Cable Crimp Connectors

Cinch Connectivity range of N type crimp RF coaxial connectors have a brass body and gold plated centre contact. These N type RF coax connectors are available in a variety of configurations for a wide range of applications.

Max Frequency - 11 GHz
Impedance - 50 Ohm
Operating Temperature - 65°C to + 165°C

Cinch N Type Connectors

Specifikationer
Attribute Value
Coaxial Connector Type N Connector
Gender Male
Mounting Type Cable Mount
Impedance 50Ω
Termination Method Crimp
Body Orientation Straight
Cable Type RG8
Operating Frequency 0 to 11GHz
Body Plating Nickel
Contact Material Brass
Contact Plating Gold, Nickel
Tillfälligt slut i lager – restorder för leverans 2020-12-30
Pris (ex. moms) Each (In a Pack of 10)
75,792 kr
(exkl. moms)
94,74 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
10 - 10
75,792 kr
757,92 kr
20 - 40
64,418 kr
644,18 kr
50 - 90
56,849 kr
568,49 kr
100 - 240
49,249 kr
492,49 kr
250 +
45,486 kr
454,86 kr
