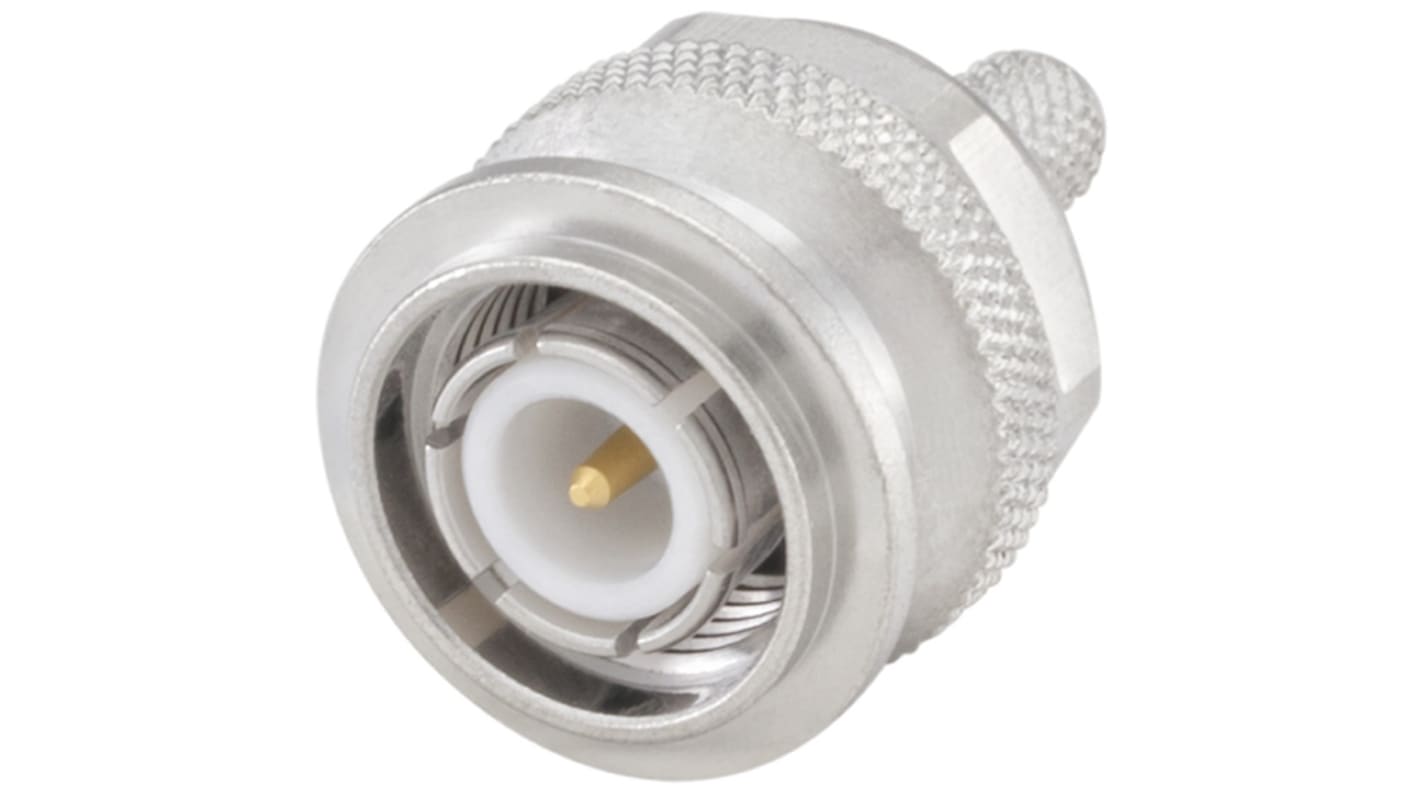

Rosenberger, Plug Cable Mount TNC Connector, 50Ω, Crimp Termination, Straight Body
- RS-artikelnummer:
- 819-4428
- Tillv. art.nr:
- 56S107-106N5
- Tillverkare / varumärke:
- Rosenberger
128 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
136,42 kr
(exkl. moms)
170,52 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 9 | 136,42 kr |
| 10 - 24 | 128,76 kr |
| 25 - 49 | 122,31 kr |
| 50 - 99 | 115,53 kr |
| 100 + | 112,14 kr |
- RS-artikelnummer:
- 819-4428
- Tillv. art.nr:
- 56S107-106N5
- Tillverkare / varumärke:
- Rosenberger
Lagstiftning och ursprungsland
- COO (Country of Origin):
- HU
Produktdetaljer
Rosenberger TNC RF Coaxial Plug Cable Mount Connectors
A range of 50 OHM TNC straight and right angle RF coaxial plug connectors for use with a variety of coaxial cable types. These 50 OHM TNC RF coaxial cable plug connectors have a flash white bronze over silver plated brass body and a mating interface according to IEC 60169-17, MIL-PRF-39012, DIN EN 122200. TNC coax connectors with crimp terminations are supplied with a crimp ferrule. For suitable RF cable type please refer to additional data table
Rosenberger TNC RF Coaxial Connectors
Specifikationer
Attribute | Value |
|---|---|
| Coaxial Connector Type | TNC Connector |
| Gender | Male |
| Mounting Type | Cable Mount |
| Impedance | 50Ω |
| Termination Method | Crimp |
| Body Orientation | Straight |
| Cable Type | Flexible |
| Operating Frequency | 0 to 10GHz |
| Body Plating | Flash White Bronze |
| Contact Material | Copper Zinc Alloy |
| Contact Plating | Nickel/White Bronze |
