- RS-artikelnummer:
- 718-2581
- Tillv. art.nr:
- 1052552-1
- Tillverkare / varumärke:
- TE Connectivity
- RS-artikelnummer:
- 718-2581
- Tillv. art.nr:
- 1052552-1
- Tillverkare / varumärke:
- TE Connectivity
Lagstiftning och ursprungsland
Produktdetaljer

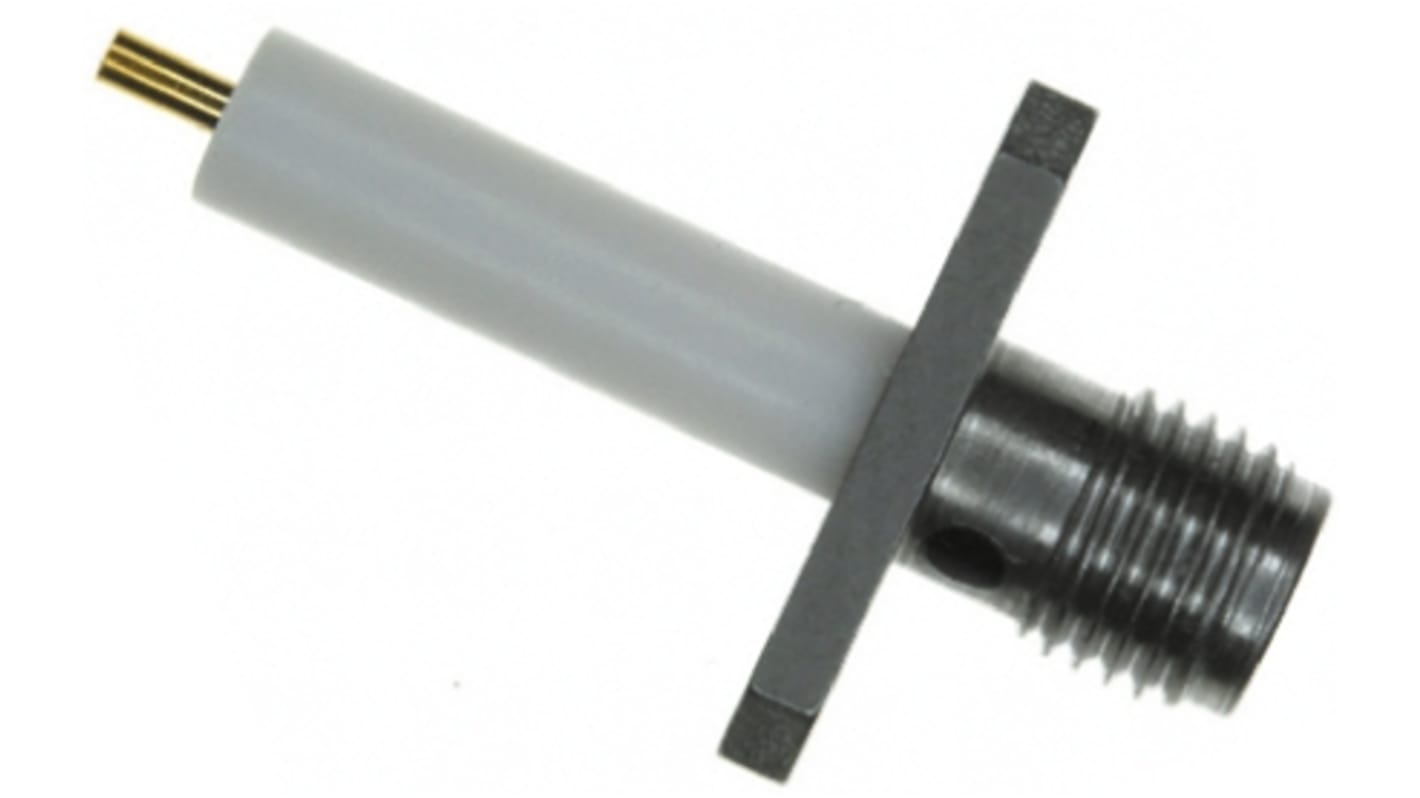

TE Connectivity Panel Mount SMA Connectors
Rear panel mount SMA connectors with a passivated stainless body, gold plated contact and solder cable termination.
Panel mount SMA connector stock number 718-2581 has a straight body, 2 hole flange, epoxy contact captivation, PTFE dielectric and an RF leakage of -(60-fGHz) dB
Panel mount SMA connector stock number 718-2572 has a right angle body, 4 hole flange, mechanical contact captivation, TFE dielectric and an RF leakage of -(90-fGHz) dB
Panel mount SMA connector stock number 718-2581 has a straight body, 2 hole flange, epoxy contact captivation, PTFE dielectric and an RF leakage of -(60-fGHz) dB
Panel mount SMA connector stock number 718-2572 has a right angle body, 4 hole flange, mechanical contact captivation, TFE dielectric and an RF leakage of -(90-fGHz) dB
TE Connectivity SMA Passivated Finish
Specifikationer
Attribute | Value |
---|---|
Coaxial Connector Type | SMA Connector |
Gender | Female |
Mounting Type | Flange Mount |
Impedance | 50Ω |
Termination Method | Solder |
Body Orientation | Straight |
Size | Subminiature |
Bulkhead | No |
Operating Frequency | 0 to 18GHz |
Body Plating | Passivated Stainless Steel |
Polarity | Normal |
Contact Material | Beryllium Copper |
Contact Plating | Gold |
