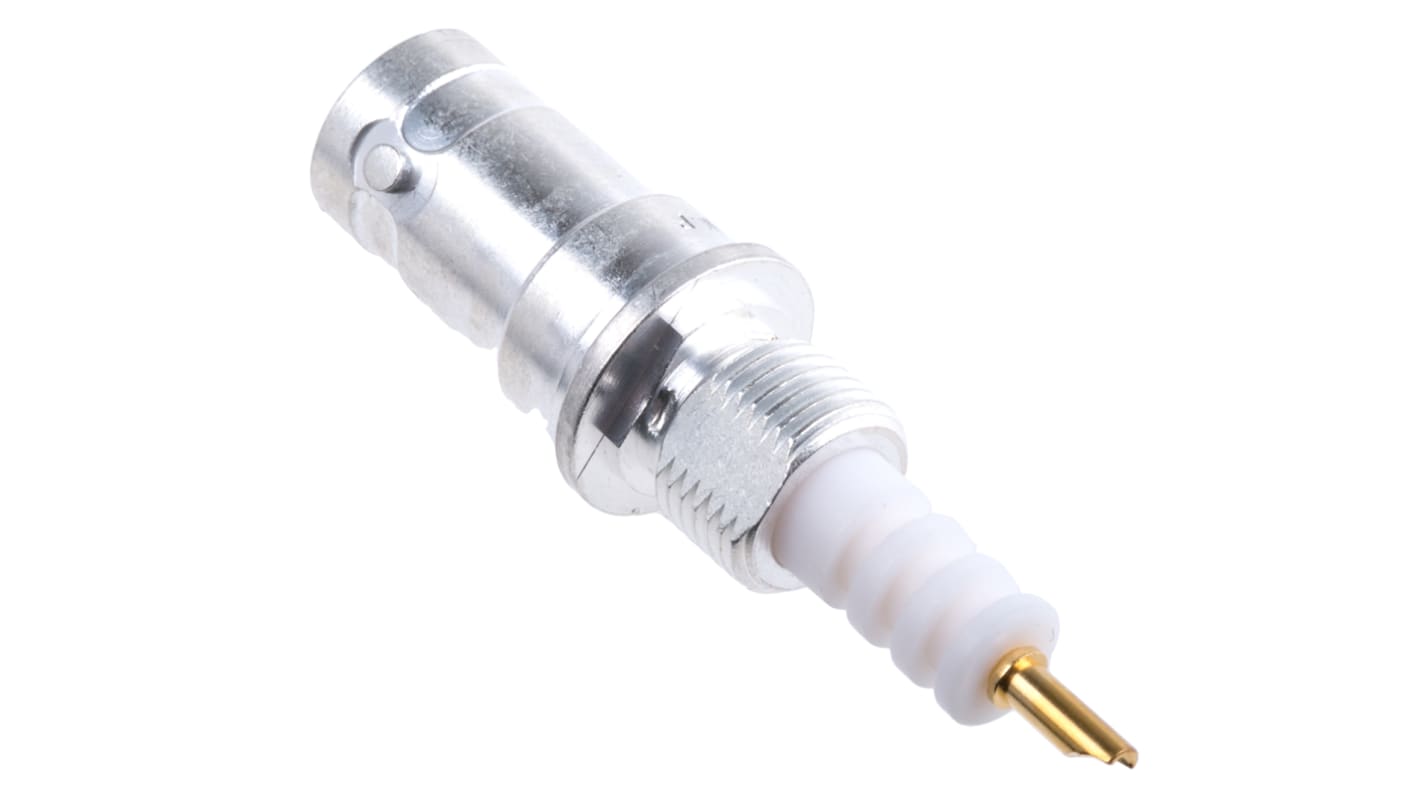

TE Connectivity, Plug Panel Mount SHV Connector, Solder Termination, Straight Body
- RS-artikelnummer:
- 713-1013
- Tillv. art.nr:
- 5051494-1
- Tillverkare / varumärke:
- TE Connectivity
15 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
403,58 kr
(exkl. moms)
504,48 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 14 | 403,58 kr |
| 15 - 49 | 363,97 kr |
| 50 - 99 | 349,10 kr |
| 100 - 249 | 331,37 kr |
| 250 + | 314,74 kr |
- RS-artikelnummer:
- 713-1013
- Tillv. art.nr:
- 5051494-1
- Tillverkare / varumärke:
- TE Connectivity
Lagstiftning och ursprungsland
- COO (Country of Origin):
- MX
Produktdetaljer
SHV Jacks Panel Mount
SHV Series - TE Connectivity
SHV Connectors are lightweight, weatherproof connectors designed to provide shielded disconnects for high-voltage applications up to 5,000 volts DC. They can be used with a wide range of small coaxial cables. This connector has non-constant impedance characteristics and features polarized centre contacts which are recessed in the dielectric. The connector also has a bayonet-locking coupling similar to BNC connectors; however, the SHV connector will not inter-mate with the standard bayonet-type connector.
Specifikationer
Attribute | Value |
|---|---|
| Gender | Male |
| Coaxial Connector Type | SHV Connector |
| Mounting Type | Panel Mount |
| Termination Method | Solder |
| Body Orientation | Straight |
| Body Plating | Silver |
| Contact Plating | Gold |
