TE Connectivity, jack Panel Mount N Connector, 50Ω, Solder Termination, Straight Body

RS-artikelnummer:: 713-0984
Tillv. art.nr:: 1057290-1
Tillverkare / varumärke:: TE Connectivity

TE Connectivity, jack Panel Mount N Connector, 50Ω, Solder Termination, Straight Body

38 I lager för avsändande samma dag

Lagt till varukorgen

Pris (ex. moms) Varje

320,54 kr

(exkl. moms)

400,68 kr

(inkl. moms)

Enheter	Per unit
1 - 14	320,54 kr
15 - 49	311,57 kr
50 - 99	303,15 kr
100 - 249	295,16 kr
250 +	287,61 kr

RS-artikelnummer:: 713-0984
Tillv. art.nr:: 1057290-1
Tillverkare / varumärke:: TE Connectivity

Datablad

N type flange mount Jack solder 50ohm

Lagstiftning och ursprungsland

Produktdetaljer

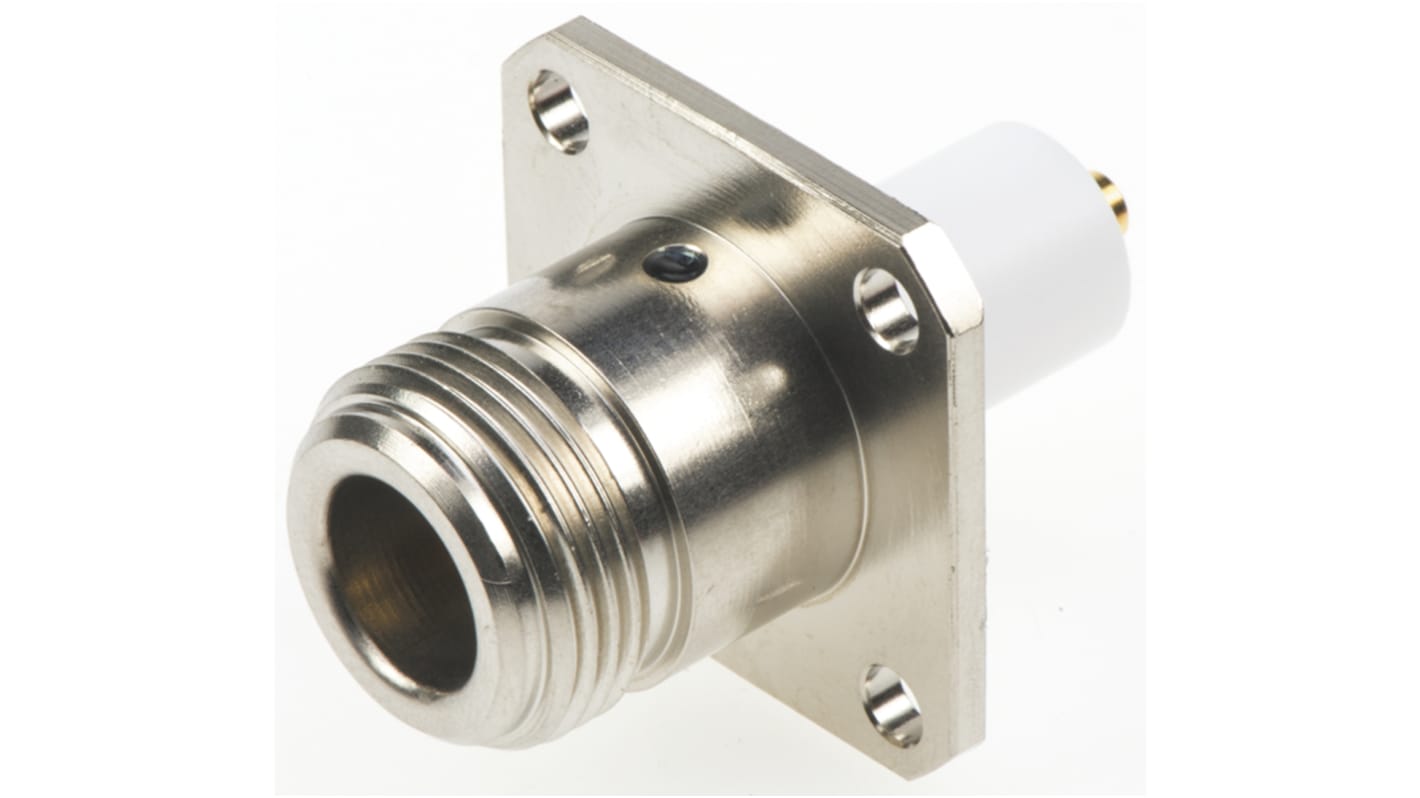

TE Connectivity Type N RF Coaxial Flange Mount PCB Jacks

Type N RF coaxial flange mount PCB jacks with 4 mounting holes. These Type N RF coaxial flange mount PCB jacks have a TFE fluorocarbon dielectric and gold plated contacts. Stock numbers 713-0975 and 713-0984 are MIL type.
Stock number 713-0975 is a MIL type Type N flange mount PCB jack receptacle with a nickel plated stainless steel body
Stock number 713-0984 is a MIL type Type N flange mount PCB jack receptacle with a nickel plated brass body
Stock number 745-5081 has a passivated stainless steel body.

TE Connectivity N Series RF Coaxial Connectors

For information regarding appropriate crimp tooling refer to the Connector/Cable/Tooling Compatibility table at the beginning of this section, in the paper catalogue

Specifikationer

Attribute	Value
Gender	Female
Coaxial Connector Type	N Connector
Mounting Type	Panel Mount
Impedance	50Ω
Termination Method	Solder
Body Orientation	Straight
Operating Frequency	0 to 11GHz
Body Plating	Nickel
Minimum Operating Temperature	-65°C
Maximum Operating Temperature	+165°C
Contact Material	Beryllium Copper
Contact Plating	Gold

RS-artikelnummer:: 713-0984
Tillv. art.nr:: 1057290-1
Tillverkare / varumärke:: TE Connectivity

N type flange mount Jack solder 50ohm
