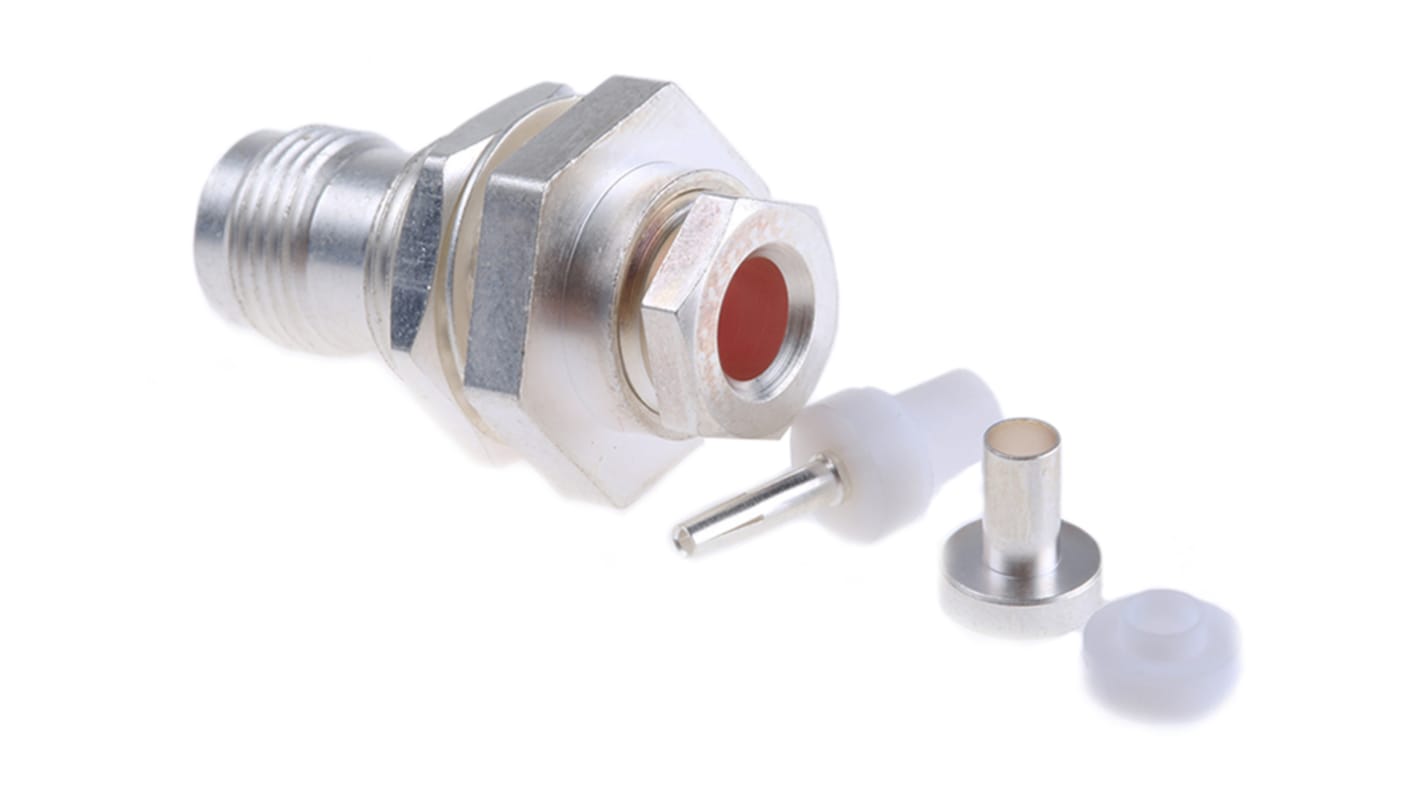

RS PRO 50Ω Straight Bulkhead Mount TNC ConnectorBulkhead Fitting, jack, URM 43, URM 46

  • RS-artikelnummer 546-5222
  • Tillverkare / varumärke RS PRO
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): TW
Produktdetaljer

Bulkhead socket (clamp)

//media.rs-online.com/t_line/L456920-01.gif

Approvals

7777

RS TNC RF Coaxial Connectors

A selection of popular cable and panel mount 50Ω TNC Connectors

Specifikationer
Attribute Value
Gender Female
Coaxial Connector Type TNC Connector
Mounting Type Bulkhead Mount
Impedance 50Ω
Termination Method Clamp
Body Orientation Straight
Cable Type URM 43, URM 46
Bulkhead Yes
Contact Plating Beryllium Copper
686 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
64,73 kr
(exkl. moms)
80,91 kr
(inkl. moms)
Enheter
Per unit
1 - 9
64,73 kr
10 - 24
58,42 kr
25 - 49
52,42 kr
50 - 99
47,15 kr
100 +
42,29 kr
