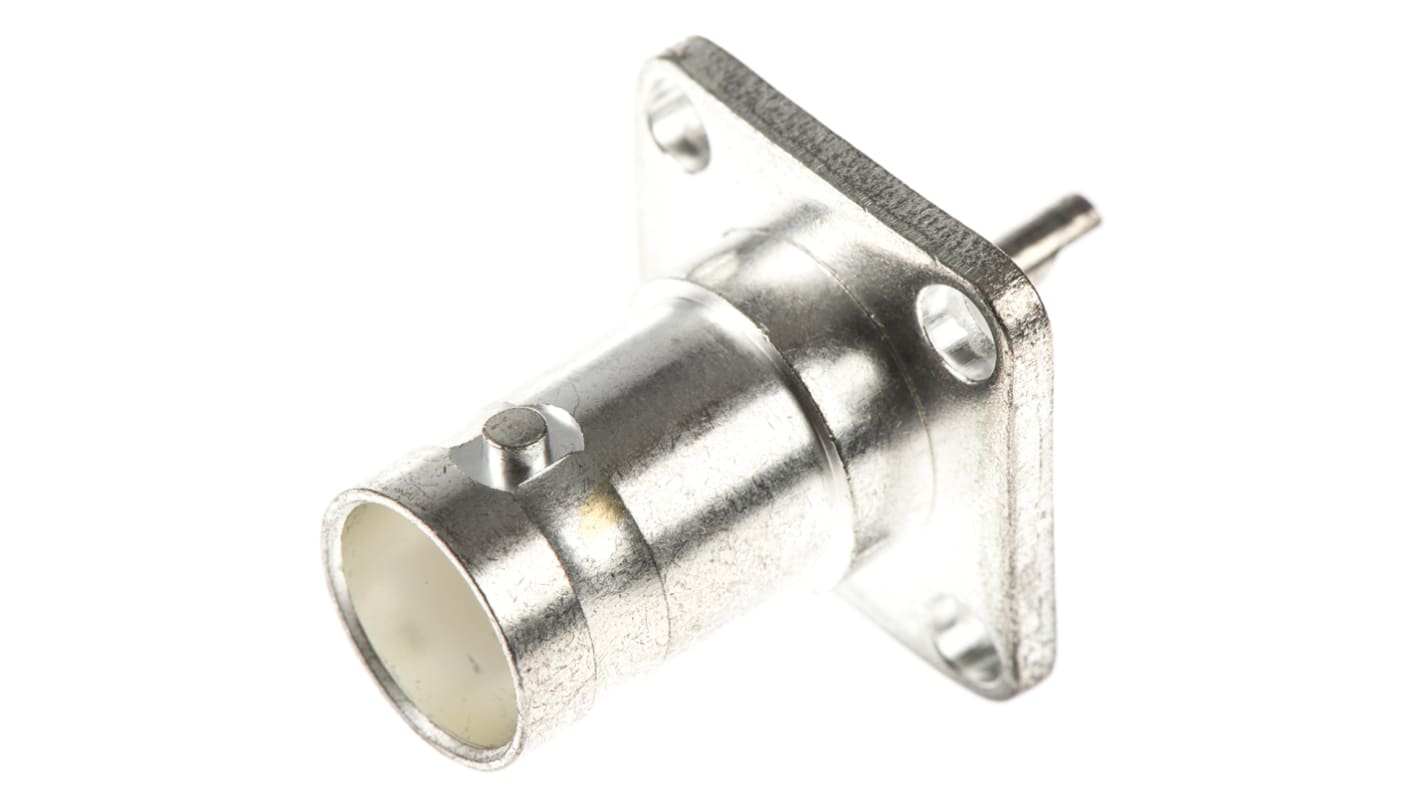

TE Connectivity Greenpar Series Straight 50Ω Panel Mount Bulkhead Fitting BNC Connector, jack, Silver

  • RS-artikelnummer 394-0715
  • Tillv. art.nr 1-1337446-0
  • Tillverkare / varumärke TE Connectivity
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

TE Connectivity 50 Ohm BNC Connectors - Professional Grade Panel Mount Solder Jack

Professional grade 50 Ohm panel mount solder jacks with PTFE dielectric, brass body and brass centre contact. These 50 Ohm RF coaxial solder sockets are front and rear panel mounting and have a 17.5mm2 flange with 4 x 3.2mm diameter mounting holes.
Stock number 394-0715 has a silver plated body and a silver plated centre contact
Stock number 718-2534 has a nickel plated body and gold plated centre contact

//media.rs-online.com/t_line/LD455674-03.gif
//media.rs-online.com/t_line/LD455674-04.gif
//media.rs-online.com/t_line/LE455674-04.gif
//media.rs-online.com/t_line/LE455674-05.gif
//media.rs-online.com/t_line/LI455674-02.gif
//media.rs-online.com/t_line/LI455674-04.gif

TE Connectivity BNC RF Coaxial Connectors

Specifikationer
Attribute Value
Gender Female
Mounting Type Panel Mount
Impedance 50Ω
Termination Method Solder
Body Orientation Straight
Bulkhead Yes
Operating Frequency 0 → 4GHz
Body Plating Silver
Minimum Operating Temperature -65 °C,
Maximum Operating Temperature +165 °C
Series Greenpar
Contact Material Brass
Contact Plating Silver
235 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
63,25 kr
(exkl. moms)
79,06 kr
(inkl. moms)
Enheter
Per unit
1 - 14
63,25 kr
15 - 49
42,99 kr
50 - 99
40,54 kr
100 - 249
35,92 kr
250 +
33,56 kr
