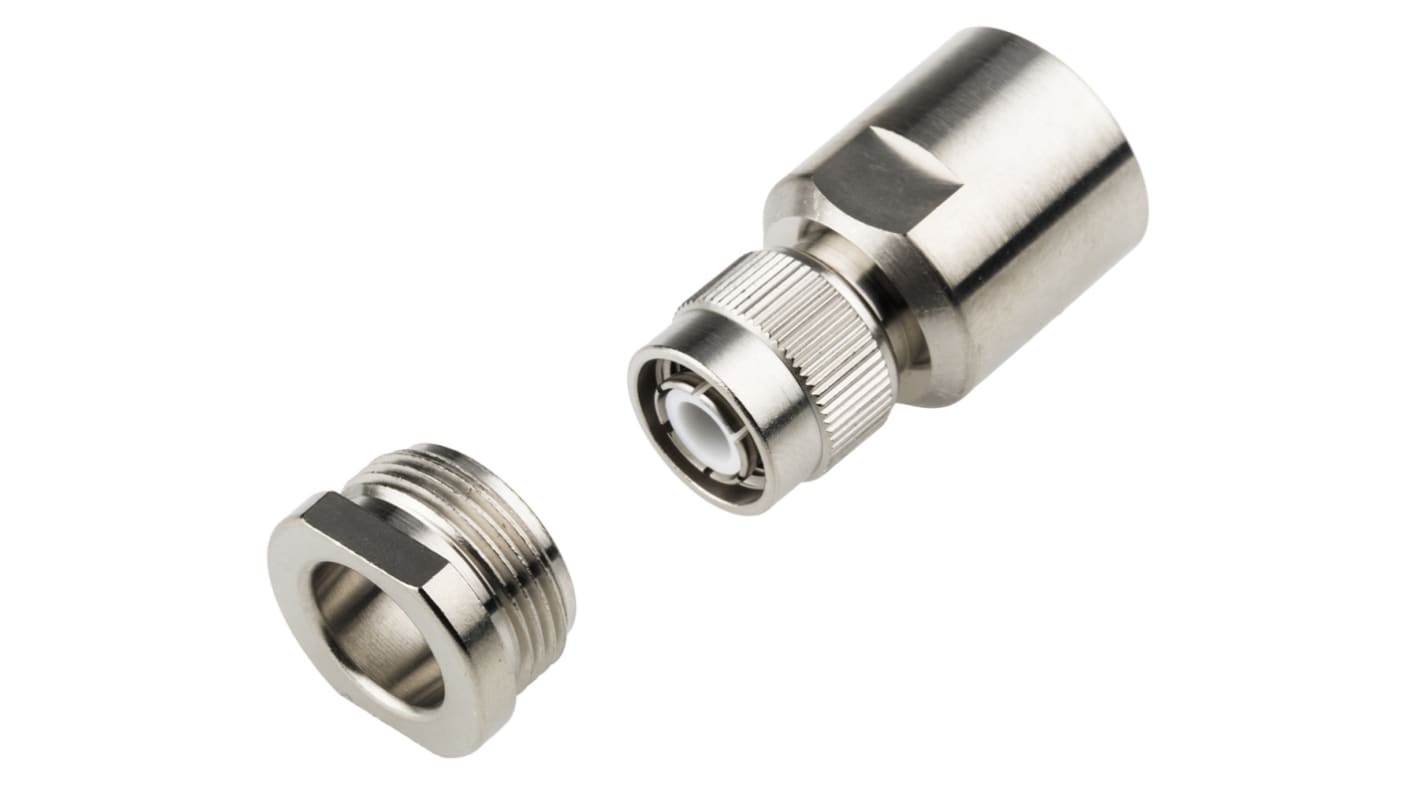

Radiall 50Ω Straight Cable Mount TNC Connector, Plug
198 I lager för leverans inom 1 arbetsdagar
Lagt till varukorgen
- RS-artikelnummer:
- 295-8232
- Tillv. art.nr:
- R143018000
- Tillverkare / varumärke:
- Radiall
| Enheter | Per unit |
| 1 - 14 | 169,66 kr |
| 15 - 49 | 152,60 kr |
| 50 - 99 | 144,18 kr |
| 100 - 249 | 127,33 kr |
| 250 + | 119,01 kr |
Radiall 50 Ohm TNC RF Coaxial Straight Cable Plug, Clamp Termination
Approvals
| Attribute | Value |
| Gender | Male |
| Coaxial Connector Type | TNC Connector |
| Mounting Type | Cable Mount |
| Impedance | 50Ω |
| Termination Method | Clamp |
| Body Orientation | Straight |
| Cable Type | RG213, RG214, RG225, RG393 |
| Size | Standard |
| Operating Frequency | 0 to 11GHz |
| Minimum Operating Temperature | -65°C |
| Body Plating | Nickel |
| Maximum Operating Temperature | +165°C |
| Contact Material | Brass |
| Contact Plating | Gold over Nickel |
