Radiall, Plug Cable Mount SMB Connector, 50Ω, Crimp Termination, Right Angle Body
- RS-artikelnummer:
- 295-5609
- Tillv. art.nr:
- R114186000W
- Tillverkare / varumärke:
- Radiall
Tillfälligt slut i lager – restorder för leverans 2024-07-03
Lagt till varukorgen
Pris (ex. moms) Varje
130,30 kr
(exkl. moms)
162,88 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 14 | 130,30 kr |
| 15 - 49 | 117,28 kr |
| 50 - 99 | 110,60 kr |
| 100 - 249 | 98,02 kr |
| 250 + | 91,46 kr |
Alternatives
Denna produkt är för närvarande inte tillgänglig. Vi rekommenderar dessa produkter istället.
- RS-artikelnummer:
- 295-5609
- Tillv. art.nr:
- R114186000W
- Tillverkare / varumärke:
- Radiall
Lagstiftning och ursprungsland
Produktdetaljer

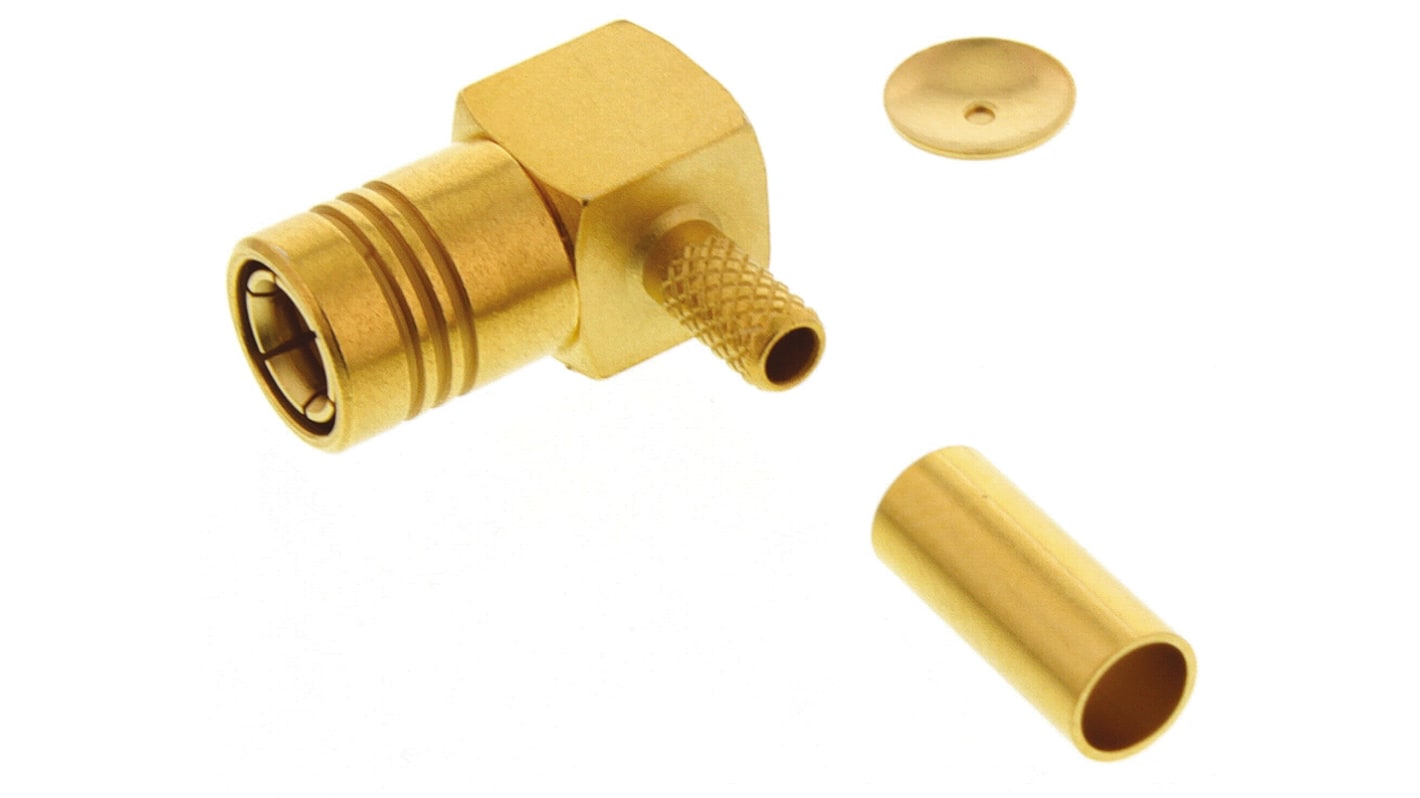

90° Crimp Plug
These Radiall SMB 90° crimp Plugs have gold plated contacts and bodies.
Note
Plug has female contact.
Approvals
MIL-C-309012
Radiall - SMB Gold Plated
Sub-miniature connectors to MIL-C-39012 with snap-on coupling for a reliable and quick/disconnect system. Both clamp and crimp termination versions available.
Clamp types have options for RG174 and RG178 cable types
Crimp types accept various cable types
Recommended crimp tool stock no. 456-778
Crimp types accept various cable types
Recommended crimp tool stock no. 456-778
Specifikationer
Attribute | Value |
|---|---|
| Coaxial Connector Type | SMB Connector |
| Gender | Male |
| Mounting Type | Cable Mount |
| Impedance | 50Ω |
| Termination Method | Crimp |
| Body Orientation | Right Angle |
| Cable Type | RG179, RG187, RG188, RG316 |
| Operating Frequency | 0 to 4GHz |
| Body Plating | Gold |
| Minimum Operating Temperature | -65°C |
| Maximum Operating Temperature | +165°C |
| Contact Material | Beryllium Copper |
| Contact Plating | Gold over Nickel |
