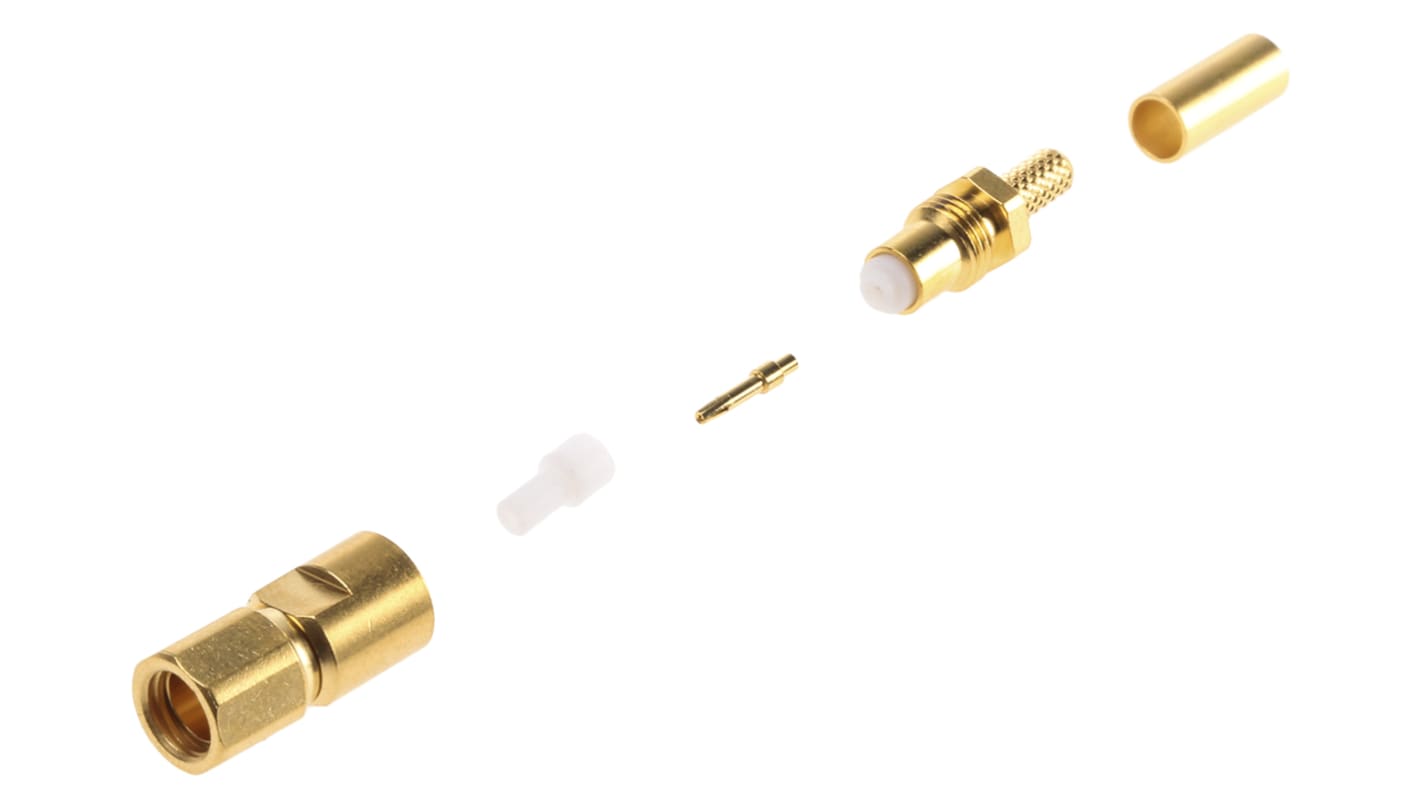

Radiall 50Ω Straight Cable Mount SMC Connector, Plug

  • RS-artikelnummer 295-5384
  • Tillv. art.nr R112075000
  • Tillverkare / varumärke Radiall
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

SMC female crimp plugs

SMC female crimp plugs, available in straight or right-angled versions.
Screw coupling.
Designed for flexible cable connection.
Identical technical specifications to the female plugs with cable gland (code: 295-5378).

Gold Plated - Radiall

Suitable for use with RG174 cable

Specifikationer
Attribute Value
Gender Male
Coaxial Connector Type SMC Connector
Mounting Type Cable Mount
Impedance 50Ω
Termination Method Crimp
Body Orientation Straight
Cable Type RG179, RG187, RG188, RG316
Operating Frequency 0 to 10GHz
Body Plating Gold
Minimum Operating Temperature -65°C
Maximum Operating Temperature +165°C
Contact Material Beryllium Copper
Contact Plating Gold over Nickel
310 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
124,08 kr
(exkl. moms)
155,10 kr
(inkl. moms)
Enheter
Per unit
1 - 14
124,08 kr
15 - 49
117,67 kr
50 - 99
114,36 kr
100 - 249
108,47 kr
250 +
102,99 kr
