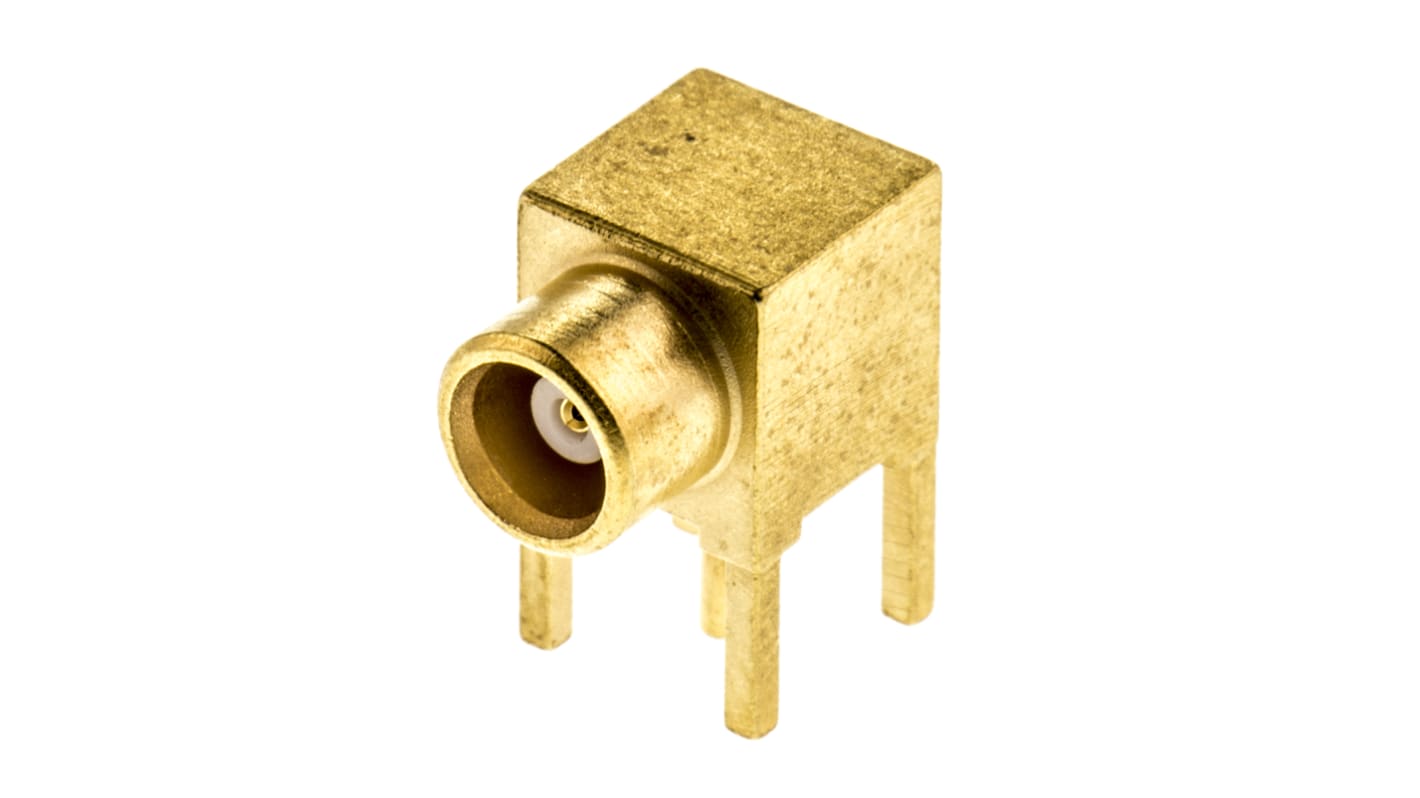

Radiall, jack Through Hole MCX Connector, 50Ω, Solder Termination, Right Angle Body
- RS-artikelnummer:
- 245-5137
- Tillv. art.nr:
- R113665000W
- Tillverkare / varumärke:
- Radiall
367 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
72,20 kr
(exkl. moms)
90,25 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 14 | 72,20 kr |
| 15 - 49 | 64,87 kr |
| 50 - 99 | 61,26 kr |
| 100 - 249 | 54,15 kr |
| 250 + | 50,65 kr |
- RS-artikelnummer:
- 245-5137
- Tillv. art.nr:
- R113665000W
- Tillverkare / varumärke:
- Radiall
Lagstiftning och ursprungsland
Produktdetaljer
90° PCB skt
Approvals
-
Radiall MCX
Microminiature coaxial connectors suitable for industrial and military communication applications
Rapid push-pull snap-on mating action compatible with 75Ω versions
Similar to SMB but 30% smaller in size, ideal for use in equipments with restricted space
Available with gold or nickel plating (cable types only)
Tooling as for 75Ω version
Rapid push-pull snap-on mating action compatible with 75Ω versions
Similar to SMB but 30% smaller in size, ideal for use in equipments with restricted space
Available with gold or nickel plating (cable types only)
Tooling as for 75Ω version
MCX 50Ω
Specifikationer
Attribute | Value |
|---|---|
| Gender | Female |
| Coaxial Connector Type | MCX Connector |
| Mounting Type | Through Hole |
| Impedance | 50Ω |
| Termination Method | Solder |
| Body Orientation | Right Angle |
| Operating Frequency | 0 to 6GHz |
| Minimum Operating Temperature | -55°C |
| Body Plating | Gold over Nickel |
| Maximum Operating Temperature | +155°C |
| Contact Material | Beryllium Copper |
| Contact Plating | Gold over Nickel |
