Wurth Elektronik 50Ω Right Angle Cable Mount MCX Connector, Plug, RG405

  • RS-artikelnummer 194-6005
  • Tillv. art.nr 60639031210820
  • Tillverkare / varumärke Wurth Elektronik
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): TW
Produktdetaljer

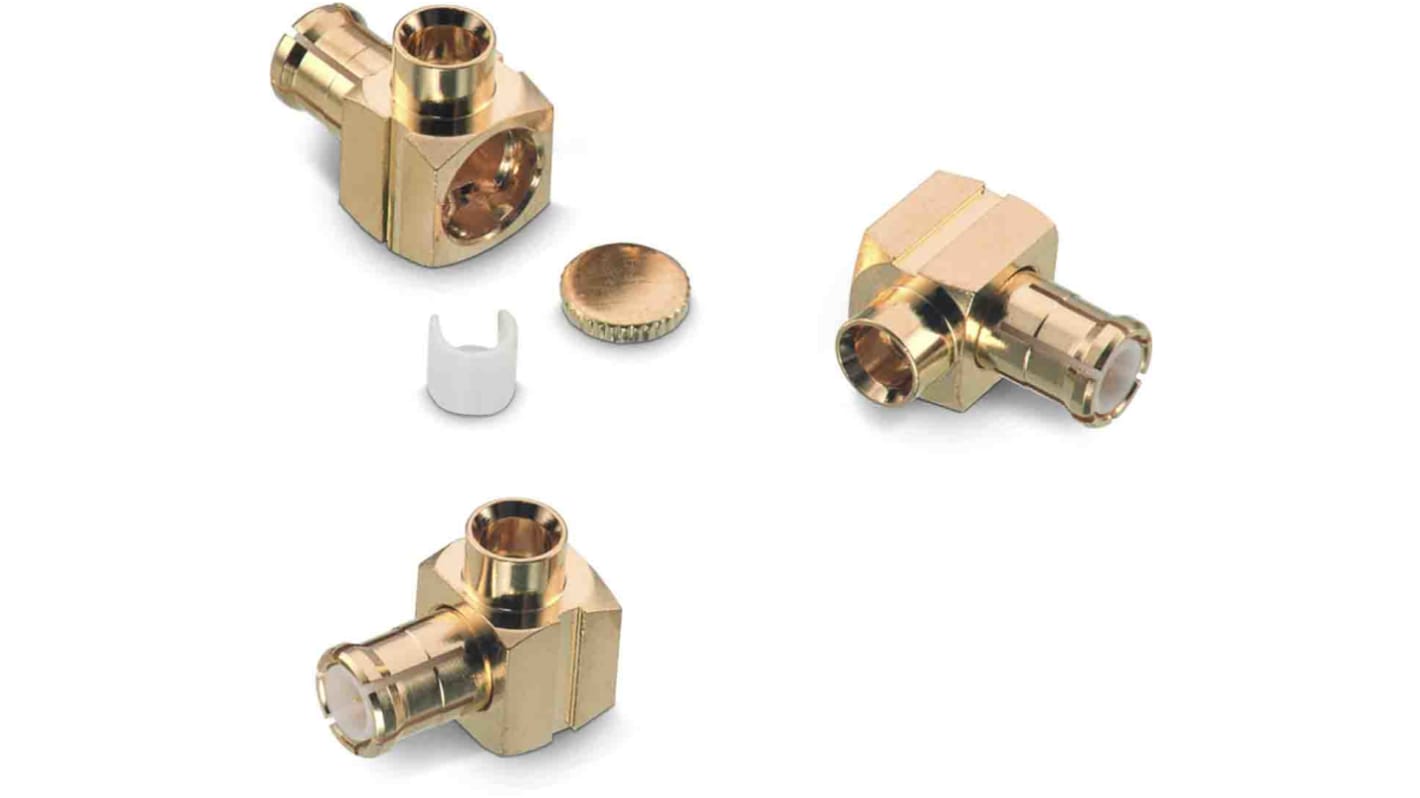

The Right Angle MCX Plug Coaxial Adapter for Hand-Formable Cable RG405/.085" is a coaxial connector designed for any wire-to-board application where easy and quick snap-on mating is needed. The RF connectors are available in 50 Ohm and frequencies up to 6 GHz. They are used in applications like:
Telecommunication, base stations and telecom boxes
Industrial machine-to-machine communication and automation
Data communication and wireless LAN
Measurement & test system and network analyzer

Specifikationer
Attribute Value
Gender Male
Coaxial Connector Type MCX Connector
Mounting Type Cable Mount
Impedance 50Ω
Termination Method Solder
Body Orientation Right Angle
Cable Type RG405
Operating Frequency 6GHz
Body Plating Gold over Nickel
Minimum Operating Temperature -55°C
Maximum Operating Temperature +155°C
Series WR-MCX
Contact Material Brass
Contact Plating Gold over Nickel
62 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Bag of 2)
79,36 kr
(exkl. moms)
99,20 kr
(inkl. moms)
Enheter
Per unit
Per Bag*
2 - 8
79,36 kr
158,72 kr
10 - 18
72,12 kr
144,24 kr
20 - 38
66,125 kr
132,25 kr
40 - 98
58,785 kr
117,57 kr
100 +
52,89 kr
105,78 kr
