Wurth Elektronik WR-SMA Series, jack Flange Mount SMA Connector, Solder Termination, Straight Body
- RS-artikelnummer:
- 181-0015
- Tillv. art.nr:
- 60312522114519
- Tillverkare / varumärke:
- Wurth Elektronik
126 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
171,32 kr
(exkl. moms)
214,15 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 9 | 171,32 kr |
| 10 - 49 | 157,75 kr |
| 50 - 99 | 146,27 kr |
| 100 - 499 | 136,42 kr |
| 500 + | 127,56 kr |
- RS-artikelnummer:
- 181-0015
- Tillv. art.nr:
- 60312522114519
- Tillverkare / varumärke:
- Wurth Elektronik
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TW
Produktdetaljer

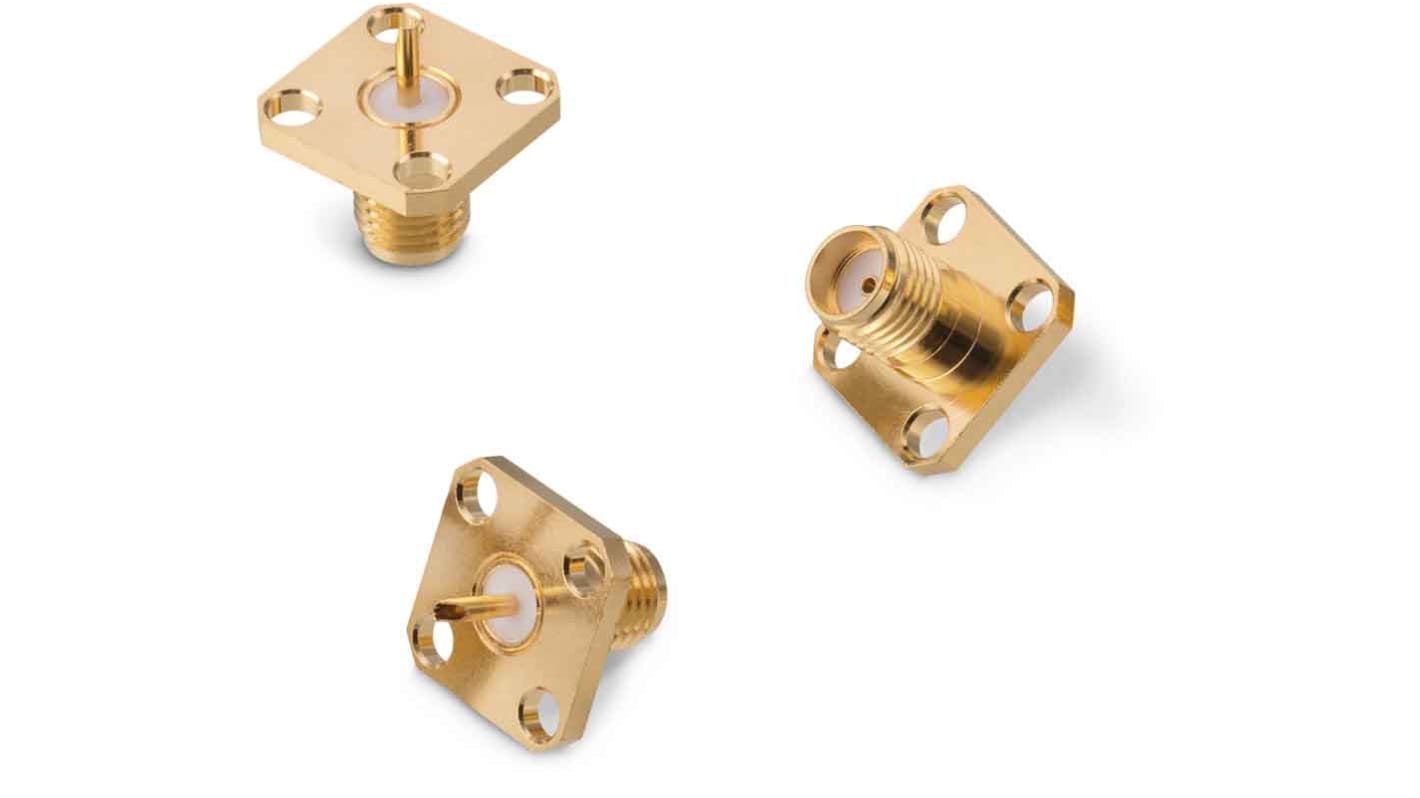

The Wurth Elektronik WR-SMA is a straight oriented, Jack SMA connector having 4-Hole flange solder cup.
RoHS compliant
Operating temperature ranges between -65°C up to +165°C
500 mating cycles
Brass body material
Operating temperature ranges between -65°C up to +165°C
500 mating cycles
Brass body material
Specifikationer
Attribute | Value |
|---|---|
| Coaxial Connector Type | SMA Connector |
| Gender | Female |
| Mounting Type | Flange Mount |
| Termination Method | Solder |
| Body Orientation | Straight |
| Size | Standard |
| Operating Frequency | 18GHz |
| Body Plating | Gold over Nickel |
| Minimum Operating Temperature | -65°C |
| Maximum Operating Temperature | +165°C |
| Series | WR-SMA |
| Contact Material | Beryllium Copper |
| Contact Plating | Gold over Nickel |
| Mating Type | Threaded |
