Wurth Elektronik WR-SMA Series, jack Flange Mount SMA Connector, Solder Termination, Straight Body
- RS-artikelnummer:
- 180-9918
- Tillv. art.nr:
- 60312512114515
- Tillverkare / varumärke:
- Wurth Elektronik
Tillfälligt slut i lager – restorder för leverans 2024-07-29
Lagt till varukorgen
Pris (ex. moms) Var (i en bricka med 60)
64,831 kr
(exkl. moms)
81,039 kr
(inkl. moms)
| Enheter | Per unit | Per Tray* |
| 60 + | 64,831 kr | 3 889,86 kr |
- RS-artikelnummer:
- 180-9918
- Tillv. art.nr:
- 60312512114515
- Tillverkare / varumärke:
- Wurth Elektronik
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TW
Produktdetaljer

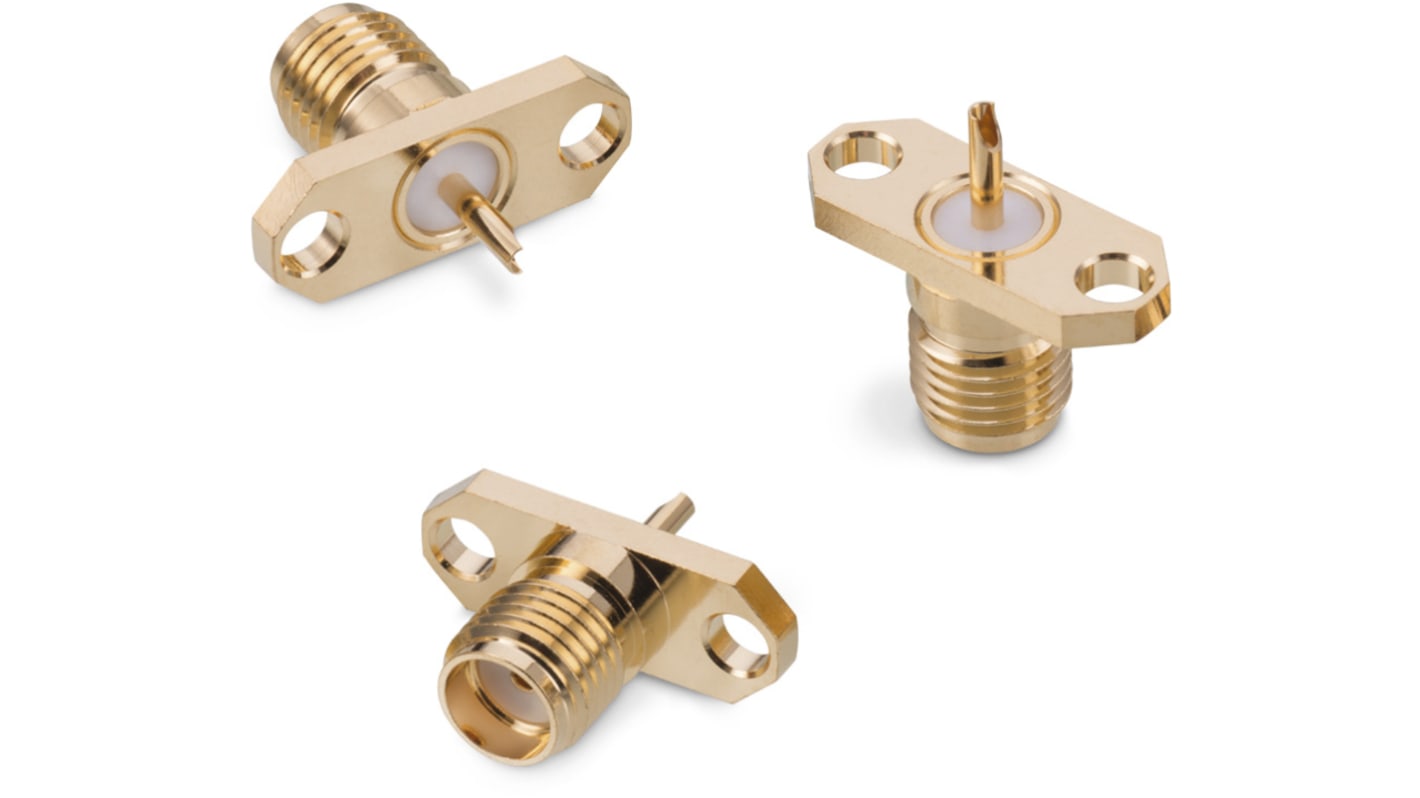

The Wurth Elektronik WR-SMA is a straight oriented, Jack SMA connector having 2-Hole flange solder cup.
RoHS compliant
Operating temperature ranges between -65°C up to +165°C
500 mating cycles
Brass body material
Operating temperature ranges between -65°C up to +165°C
500 mating cycles
Brass body material
Specifikationer
Attribute | Value |
|---|---|
| Gender | Female |
| Coaxial Connector Type | SMA Connector |
| Mounting Type | Flange Mount |
| Termination Method | Solder |
| Body Orientation | Straight |
| Size | Standard |
| Operating Frequency | 18GHz |
| Minimum Operating Temperature | -65°C |
| Body Plating | Gold over Nickel |
| Maximum Operating Temperature | +165°C |
| Series | WR-SMA |
| Contact Material | Beryllium Copper |
| Contact Plating | Gold over Nickel |
| Mating Type | Threaded |
