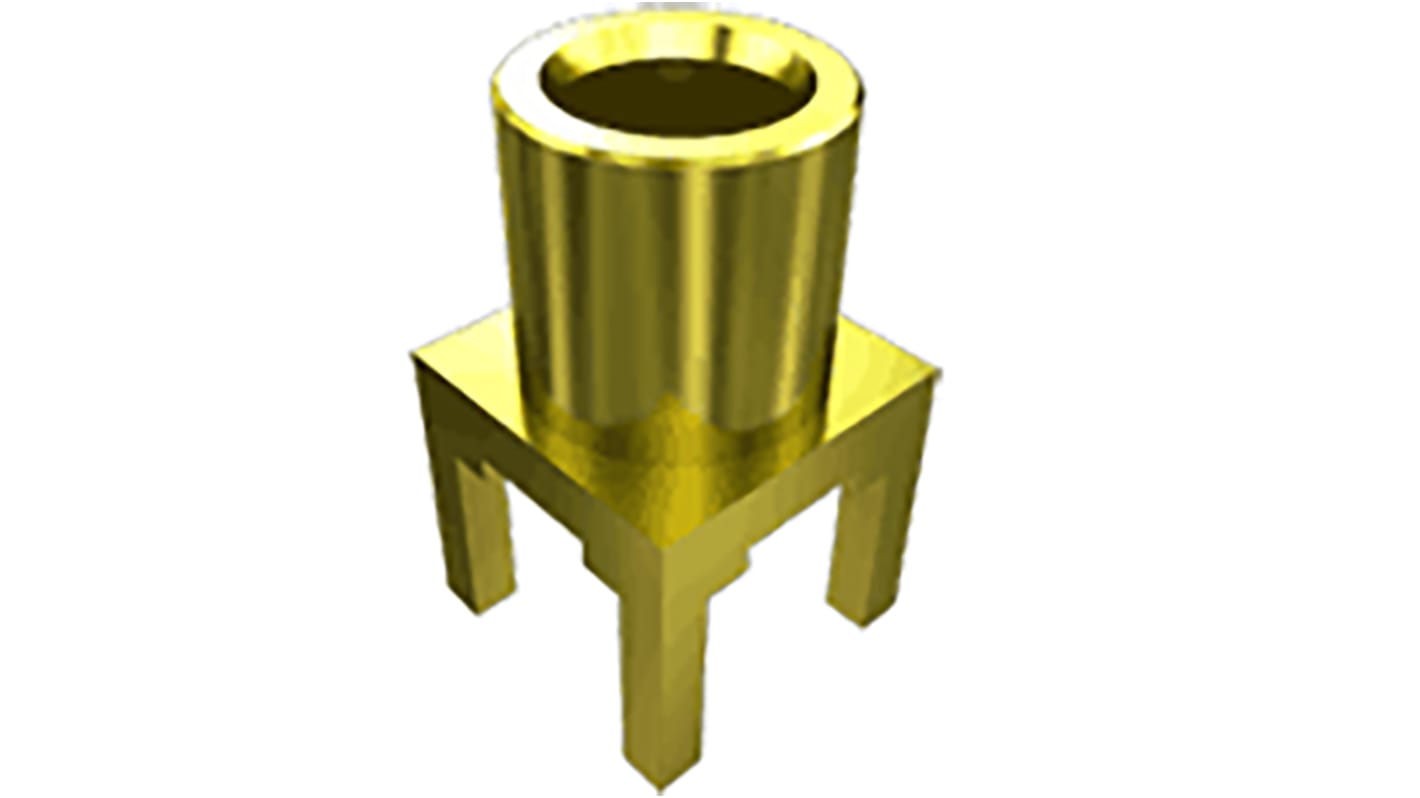

Samtec MCX7 Series, jack PCB Mount MCX Connector, 75Ω, Through Hole Termination, Straight Body
- RS-artikelnummer:
- 180-0033
- Tillv. art.nr:
- MCX7-J-P-H-ST-TH1
- Tillverkare / varumärke:
- Samtec
19 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
49,78 kr
(exkl. moms)
62,22 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 24 | 49,78 kr |
| 25 - 99 | 46,06 kr |
| 100 - 249 | 42,78 kr |
| 250 - 499 | 40,15 kr |
| 500 + | 37,52 kr |
- RS-artikelnummer:
- 180-0033
- Tillv. art.nr:
- MCX7-J-P-H-ST-TH1
- Tillverkare / varumärke:
- Samtec
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
75 ohm impedance
Optimized for 3G SDI solutions
Vertical or right-angle through-hole
Optimized for 3G SDI solutions
Vertical or right-angle through-hole
Specifikationer
Attribute | Value |
|---|---|
| Coaxial Connector Type | MCX Connector |
| Gender | Female |
| Mounting Type | PCB Mount |
| Impedance | 75Ω |
| Termination Method | Through Hole |
| Body Orientation | Straight |
| Size | Standard |
| Operating Frequency | 0 to 6GHz |
| Body Plating | Gold |
| Minimum Operating Temperature | -65°C |
| Maximum Operating Temperature | +125°C |
| Series | MCX7 |
| Contact Material | Beryllium Copper |
| Contact Plating | Gold |
