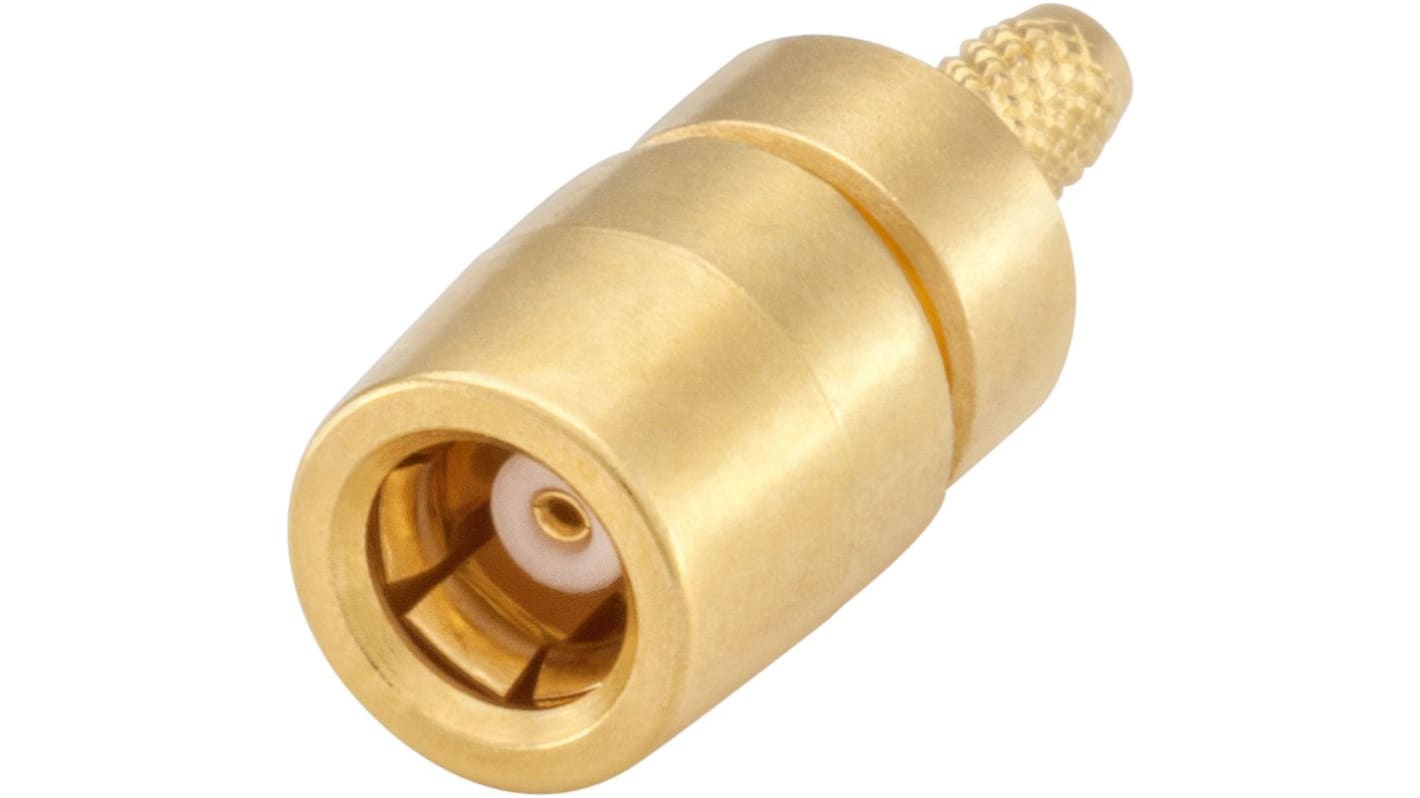

Rosenberger, jack Cable Mount SMB Connector, 50Ω, Crimp Termination, Straight Body
- RS-artikelnummer:
- 122-2185
- Tillv. art.nr:
- 171475
- Tillverkare / varumärke:
- Rosenberger
3184 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
76,69 kr
(exkl. moms)
95,86 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 76,69 kr |
| 5 - 9 | 69,03 kr |
| 10 - 24 | 65,53 kr |
| 25 - 49 | 61,26 kr |
| 50 + | 57,44 kr |
- RS-artikelnummer:
- 122-2185
- Tillv. art.nr:
- 171475
- Tillverkare / varumärke:
- Rosenberger
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- HU
Produktdetaljer
Rosenberger 50Ω SMB Cable Mount Jacks
From Rosenberger, a series of superior quality 50 Ω SMB cable mount jacks. This range of SMB jacks have gold plated bodies and gold plated brass centre contacts. These female SMB connectors feature a snap-on coupling for easy mating and are available in straight and right angled options.
Features and Benefits
Frequency range DC to 4 GHz
Interface according to IEC 60169-10, CECC 22130, and MIL-PRF-39012
Snap-on Coupling
Interface according to IEC 60169-10, CECC 22130, and MIL-PRF-39012
Snap-on Coupling
Applications
Antennas
GPS
PC/LAN
Base Stations
Radio boards
GPS
PC/LAN
Base Stations
Radio boards
Rosenberger 50Ω SMB Range
Specifikationer
Attribute | Value |
|---|---|
| Coaxial Connector Type | SMB Connector |
| Gender | Female |
| Mounting Type | Cable Mount |
| Impedance | 50Ω |
| Termination Method | Crimp |
| Body Orientation | Straight |
| Cable Type | RG174 A/U, RG188 A/U, RG316/U |
| Size | Subminiature |
| Bulkhead | Yes |
| Operating Frequency | DC to 4GHz |
| Body Plating | Gold |
| Contact Material | Brass |
| Contact Plating | Gold |
| Mating Type | Snap On |
| Series Number | 59 |
