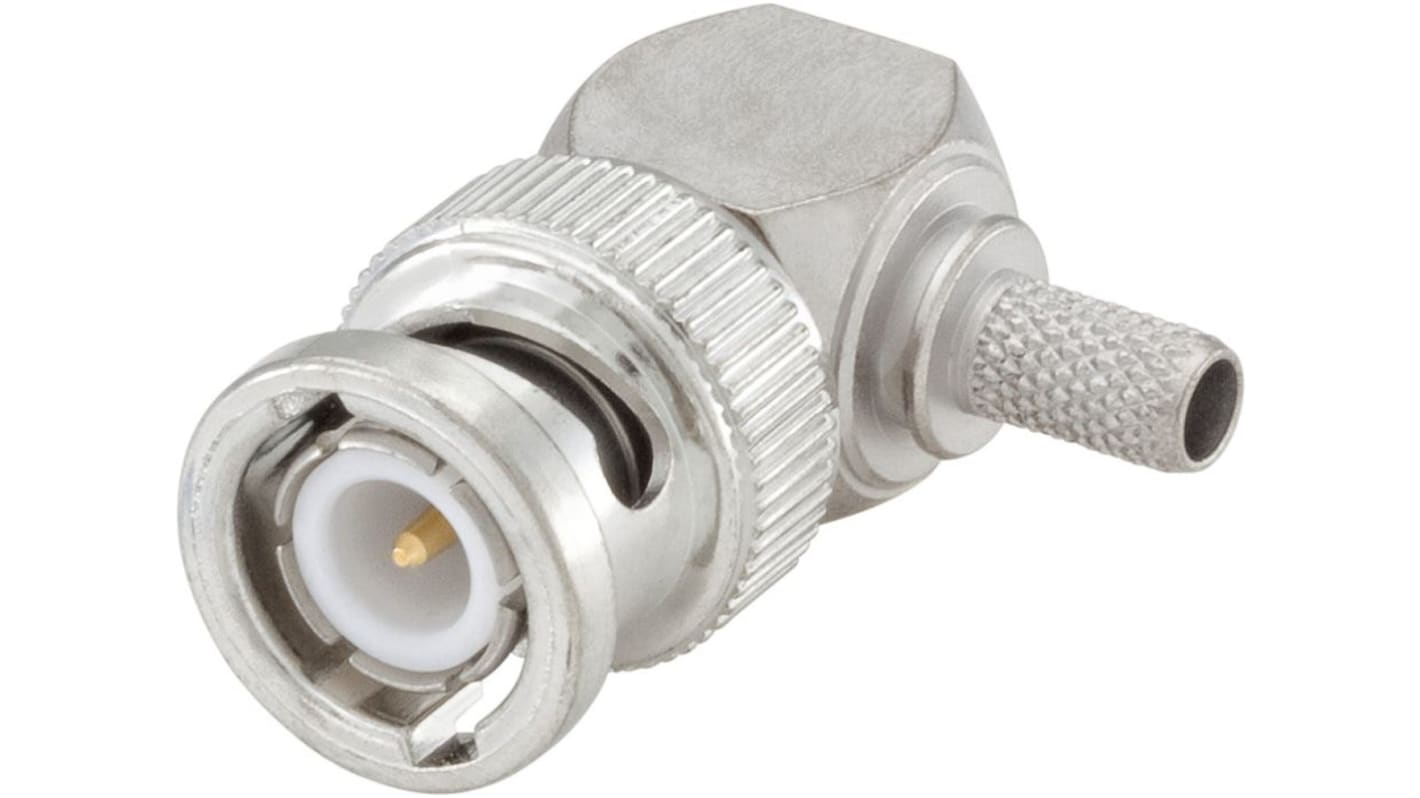

Rosenberger Right Angle 50Ω Cable Mount BNC Connector, Plug, Crimp Termination, Flexible

  • RS-artikelnummer 122-2176
  • Tillv. art.nr 51S207-308N5
  • Tillverkare / varumärke Rosenberger
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): HU
Produktdetaljer

Rosenberger BNC 50Ω Cable Mount Plugs

From Rosenberger, a series of superior quality 50 Ω cable mount plugs. This range of BNC plugs have gold plated centre contacts and white bronze plated brass bodies. These male BNC connectors feature a bayonet coupling mechanism requiring only a quarter turn to connect and disconnect. The easy to use coupling make BNC connectors one of the most popular general purpose connectors around.

Features and Benefits

Interface according to IEC 61169-8, MIL-PRF-39012 and CECC 22120
Frequency range DC to 10 GHz
Bayonet coupling

Applications

Antennas
Telecom
Automotive
Medical Equipment
Base Stations
Cable Modems
Instrumentation

Rosenberger BNC Range 50Ω

Specifikationer
Attribute Value
Coaxial Connector Type BNC Connector
Gender Male
Mounting Type Cable Mount
Impedance 50Ω
Termination Method Crimp
Body Orientation Right Angle
Cable Type Flexible
Size Standard
Bulkhead No
Operating Frequency DC to 10GHz
Polarity Normal
Contact Material Brass
Contact Plating Gold
Series Number 51
193 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
88,72 kr
(exkl. moms)
110,90 kr
(inkl. moms)
Enheter
Per unit
1 - 4
88,72 kr
5 - 9
79,93 kr
10 - 24
75,17 kr
25 - 49
71,14 kr
50 +
66,69 kr
