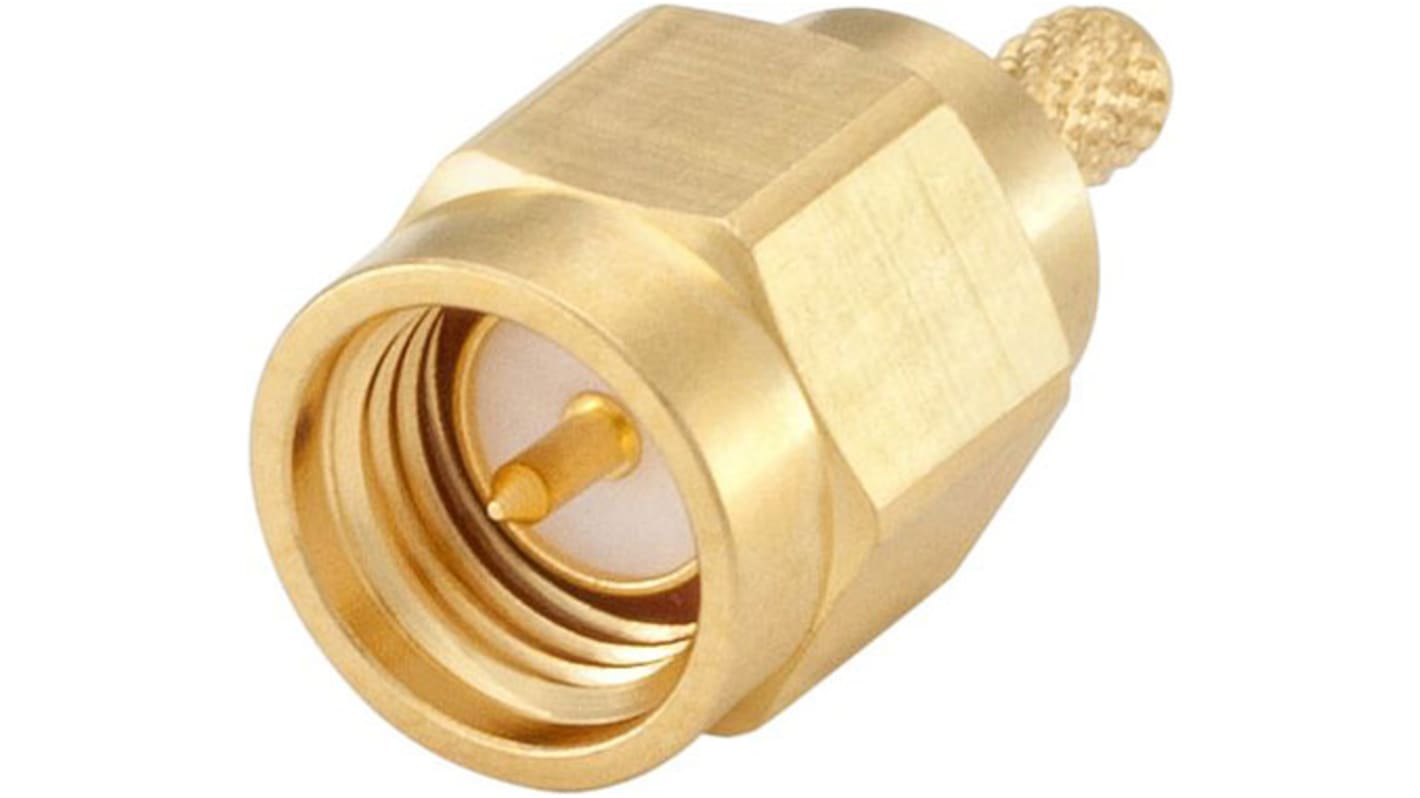

Rosenberger 50Ω Straight Cable Mount SMA Connector, Plug, Flexible

  • RS-artikelnummer 122-2166
  • Tillv. art.nr 183429
  • Tillverkare / varumärke Rosenberger
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): HU
Produktdetaljer

Rosenberger SMA 50Ω Cable Mount Plugs

From Rosenberger, a series of superior quality 50 Ω SMA cable mount plugs. This range of SMA plugs have gold plated bodies and gold plated brass centre contacts. These subminiature connectors feature a screw coupling mechanism ensuring a secure connection and high performance.

Features and Benefits

Interface according to IEC 60169-15, EN122110, MIL-STD-348A
Frequency range DC- 12.4 GHz
Secure screw coupling
Compact size
Excellent RF Performance

Applications

Instrumentation
Base stations
PC/LAN

Rosenberger SMA Range

Specifikationer
Attribute Value
Gender Male
Coaxial Connector Type SMA Connector
Mounting Type Cable Mount
Impedance 50Ω
Termination Method Crimp
Body Orientation Straight
Cable Type Flexible
Size Subminiature
Bulkhead No
Operating Frequency DC to 18GHz
Body Plating Gold
Polarity Normal
Contact Material Brass
Contact Plating Gold
Series Number 32
11 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
47,87 kr
(exkl. moms)
59,84 kr
(inkl. moms)
Enheter
Per unit
1 - 4
47,87 kr
5 - 9
43,22 kr
10 - 24
40,74 kr
25 - 49
38,36 kr
50 +
35,98 kr
