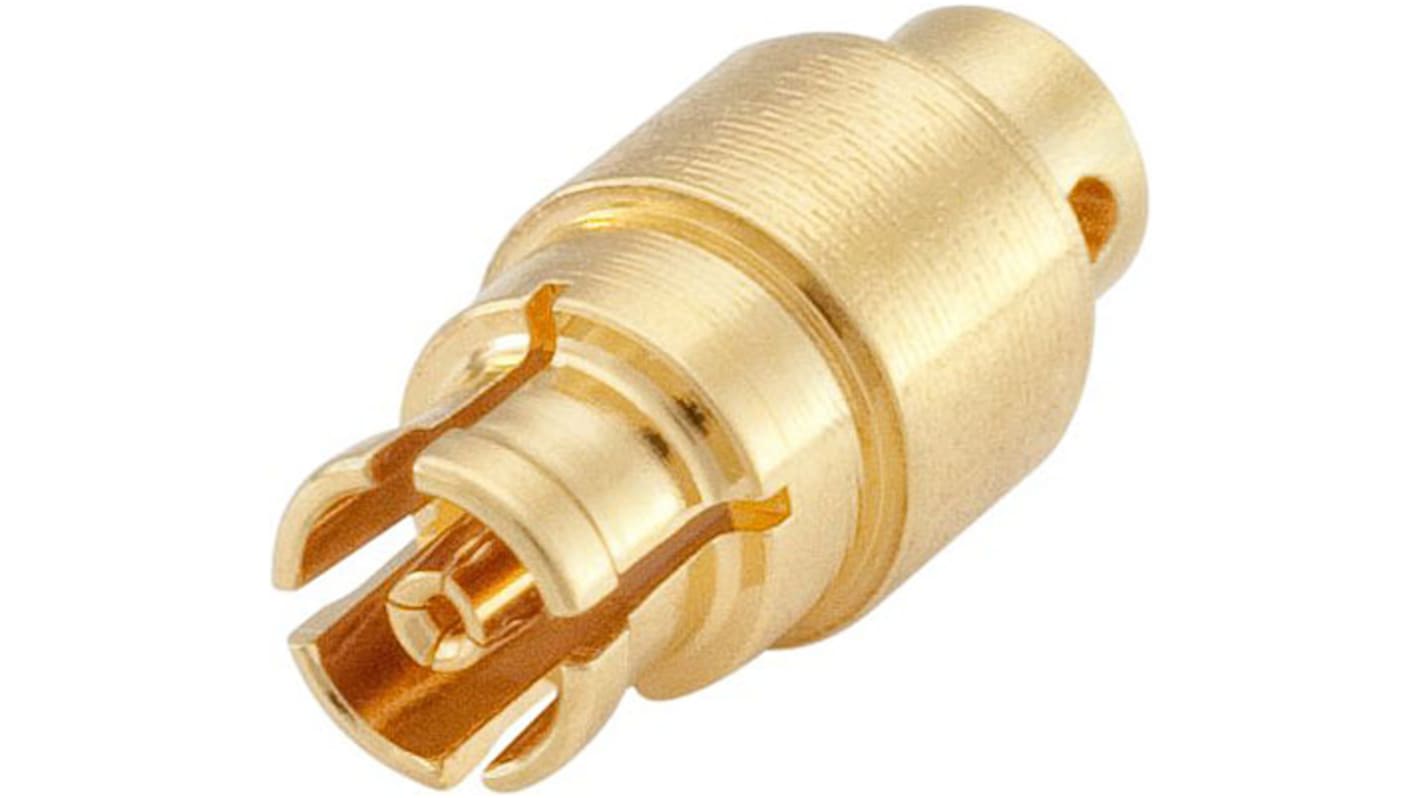

Rosenberger 50Ω Cable Mount SMP Connector jack, Crimp Termination Bulkhead Fitting Semi Rigid Gold

  • RS-artikelnummer 122-2156
  • Tillv. art.nr 186729
  • Tillverkare / varumärke Rosenberger
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): HU
Produktdetaljer

Rosenberger Mini SMP 50Ω Cable Mount Jacks

From Rosenberger, a series of superior quality 50 Ω mini SMP cable mount jacks. This range of SMP jacks have gold plated centre contacts and a PTFE dielectric. These miniature connectors feature snap together couplings providing a secure reliable connection. Compact in design they make ideal connectors for space limited applications requiring high frequency solutions.

Features and Benefits

Interface according to MIL-STD 348
Frequency range DC to 40 GHz
Compact size
Snap-on coupling

Applications

Broadband
Antennas
Instrumentation
Military

Rosenberger Mini SMP Range

Specifikationer
Attribute Value
Gender Female
Mounting Type Cable Mount
Impedance 50Ω
Termination Method Crimp
Body Orientation Straight
Cable Type Semi Rigid
Size Subminiature
Bulkhead Yes
Operating Frequency DC to 65GHz
Body Plating Gold
Contact Material Beryllium Copper, Brass
Contact Plating Gold
109 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
68,66 kr
(exkl. moms)
85,82 kr
(inkl. moms)
Enheter
Per unit
1 - 4
68,66 kr
5 - 9
61,42 kr
10 - 24
58,01 kr
25 - 49
54,60 kr
50 +
51,60 kr
