Belden Coaxial Cable, 500m, URM76 Coaxial, Unterminated
- RS-artikelnummer:
- 521-8357
- Tillverkare / varumärke:
- Belden
Tillfälligt slut i lager – restorder för leverans 2024-06-21
Lagt till varukorgen
Pris (ex. moms) 1 rulle med 500 meter
10 442,78 kr
(exkl. moms)
13 053,48 kr
(inkl. moms)
| Rulle(ar) | Per Reel | Per Metre* |
| 1 + | 10 442,78 kr | 20,886 kr |
Alternativ
Denna produkt är för närvarande inte tillgänglig. Vi rekommenderar denna produkt istället.
- RS-artikelnummer
- 521-8177
Pris (ex. moms) 1 rulle med 100 meter
2 062,19 kr
(exkl. moms)
2 577,74 kr
(inkl. moms)
- RS-artikelnummer:
- 521-8357
- Tillverkare / varumärke:
- Belden
Lagstiftning och ursprungsland
- COO (Country of Origin):
- NL
Produktdetaljer

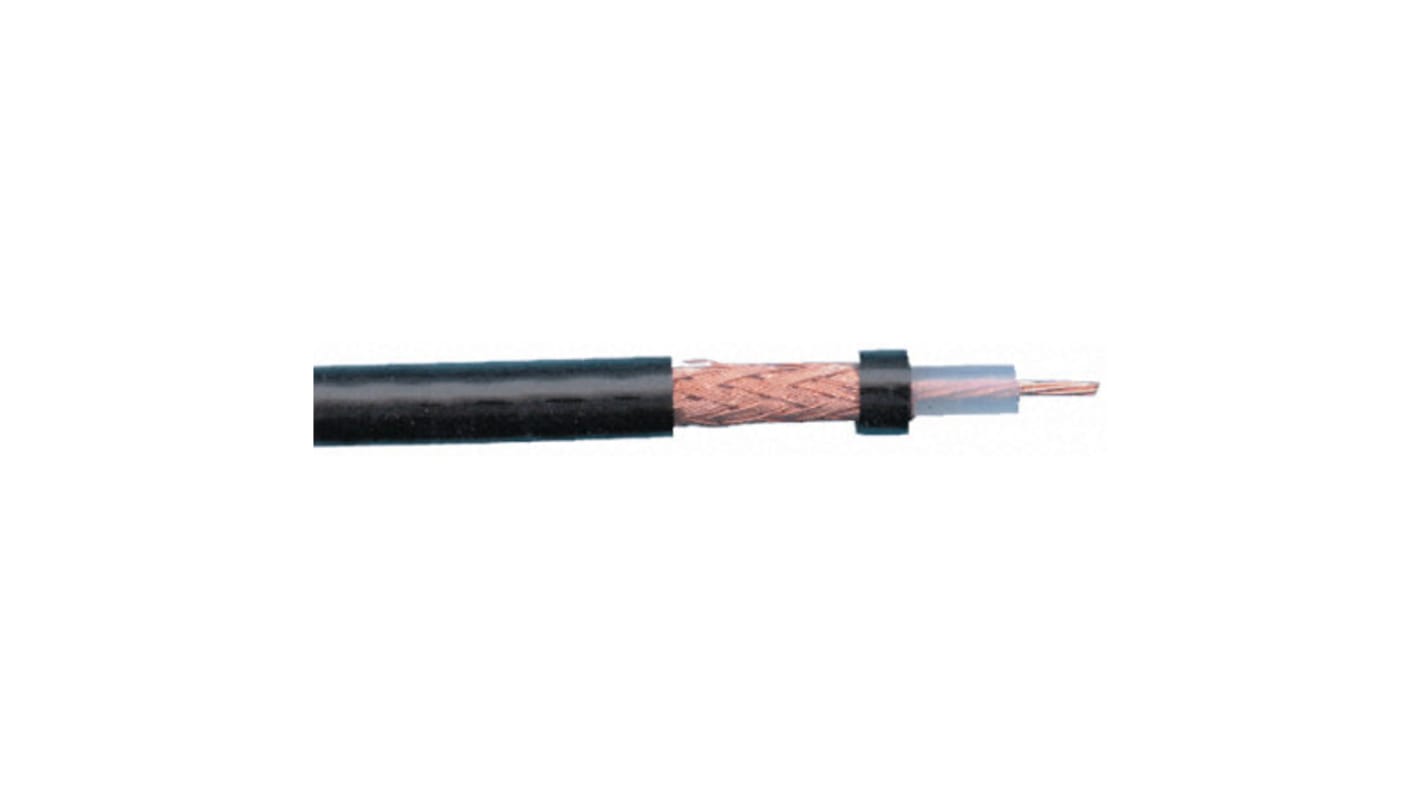

RS PRO Black Unterminated to Unterminated URM76 Coaxial Cable, 50 Ω, 5 mm O.D, 500 m
Need a reliable coaxial cable that can handle high power? This URM76 coaxial cable from RS PRO has an impedance of 50 Ω, so it's useful for carrying high voltage and high power over long runs. It's commonly used for data and wireless communication and with radio and TV transmitters.
The cable's tinned copper strands offer great conductivity along with corrosion resistance. They're insulated with a polyethylene (PE) dielectric layer and sheathed in flame-retardant polyvinyl chloride (PVC), which will help slow the spread of flames in the event of a fire.
The cable's tinned copper strands offer great conductivity along with corrosion resistance. They're insulated with a polyethylene (PE) dielectric layer and sheathed in flame-retardant polyvinyl chloride (PVC), which will help slow the spread of flames in the event of a fire.
Features and Benefits
• Attenuation of 15.5 dB/100 m at 100 MHz, 22.2 dB/100 m at 200 MHz, 39.8 dB/100 m at 600 MHz, 52.7 dB/100 m at 1 GHz
• Coaxial cable shape
• Capacitance of 98 pF/m
• Characteristic impedance of 50 Ω
• URM76 coaxial type
• Tinned copper conductor material
• Stranded conductor type
• Connector A is an unterminated connector type
• Connector B is an unterminated connector type
• A connector type
• Seven core strands of 0.3 mm
• PE (polyethylene) insulation material
• Length of 500 m
• Maximum operating temperature of +70°C
• Minimum operating temperature of -40°C
• Seven strands
• Outer diameter of 5 mm
• Reel length of 500 m
• Black sheath colour
• Polyvinyl chloride (PVC) sheath material
• Strand size of 0.32 mm
• Unterminated
• Velocity ratio of 0.66
• Coaxial cable shape
• Capacitance of 98 pF/m
• Characteristic impedance of 50 Ω
• URM76 coaxial type
• Tinned copper conductor material
• Stranded conductor type
• Connector A is an unterminated connector type
• Connector B is an unterminated connector type
• A connector type
• Seven core strands of 0.3 mm
• PE (polyethylene) insulation material
• Length of 500 m
• Maximum operating temperature of +70°C
• Minimum operating temperature of -40°C
• Seven strands
• Outer diameter of 5 mm
• Reel length of 500 m
• Black sheath colour
• Polyvinyl chloride (PVC) sheath material
• Strand size of 0.32 mm
• Unterminated
• Velocity ratio of 0.66
Specifikationer
Attribute | Value |
|---|---|
| Terminated/Unterminated | Unterminated |
| Coaxial Type | URM76 |
| Outer Diameter | 5mm |
| CPR Certification | Eca |
| Characteristic Impedance | 50 Ω |
| Attenuation | 15.5 dB/100m @ 100MHz, 22.2 dB/100m @ 200MHz, 39.8 dB/100m @ 600MHz, 52.7 dB/100m @ 1GHz |
| Length | 500m |
| Sheath Colour | Black |
| Conductor Strand Type | Stranded |
| Velocity ratio | 66% |
| Insulation Material | PE |
| Sheath Material | Polyvinyl Chloride PVC |
| Minimum Operating Temperature | -40°C |
| Core Strands | 7/0.3 |
| Size of Strands | 0.32 mm |
| Maximum Operating Temperature | +70°C |
| Capacitance | 98pF/m |
| Conductor Material | Tinned Copper |
| Number of Strands | 7 |
| Operating Temperature Range | -40 → +70 °C |
