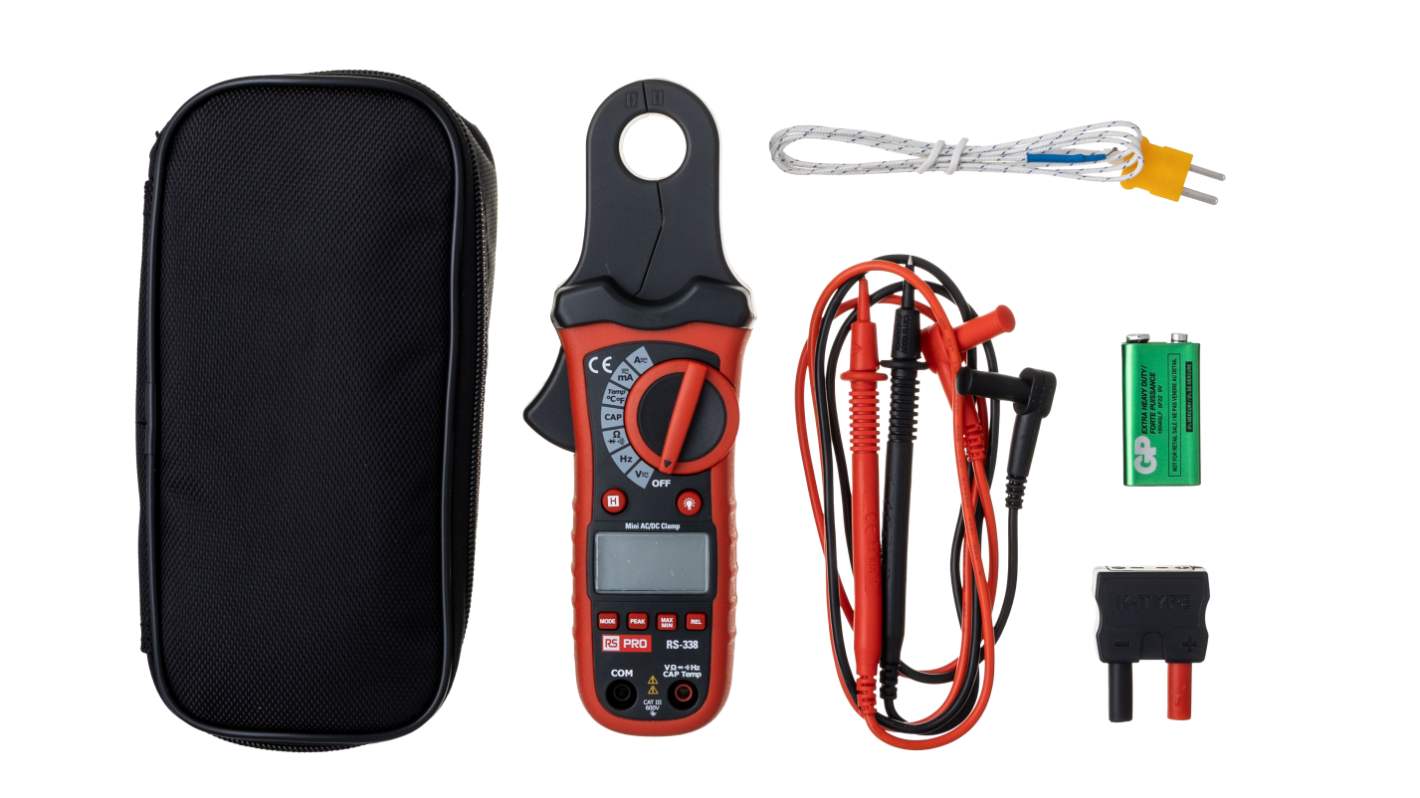

RS PRO Clamp Meter, 80A dc, Max Current 80A ac CAT III 600V With RS Calibration
- RS-artikelnummer:
- 146-9131
- Tillverkare / varumärke:
- RS PRO
166 I lager för leverans inom 3-5 arbetsdagar
Nästa dag-leverans inte möjlig
Lagt till varukorgen
Pris (ex. moms) Varje
1 984,93 kr
(exkl. moms)
2 481,16 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 1 984,93 kr |
- RS-artikelnummer:
- 146-9131
- Tillverkare / varumärke:
- RS PRO
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer
Designed to verify the presence of load current, voltage and resistence, etc.
The small bodies and jaws fit perfectly in your hand and a large backlit display is easy to read.
Test lead mA range with high 1 mA resolution for HVAC and process control applications Data
Digital clamp tester for AC/DC current measurement
Providing wide measuring range from very small to large current
AUTO power off & data hold function
The small bodies and jaws fit perfectly in your hand and a large backlit display is easy to read.
Test lead mA range with high 1 mA resolution for HVAC and process control applications Data
Digital clamp tester for AC/DC current measurement
Providing wide measuring range from very small to large current
AUTO power off & data hold function
Specifikationer
Attribute | Value |
|---|---|
| Absolute Maximum AC Current Measurement | 80A ac |
| Absolute Maximum DC Current Measurement | 80A dc |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Absolute Maximum DC Voltage Measurement | 600V dc |
| Absolute Maximum Resistance Measurement | 40MΩ |
| Calibrated | RSCAL |
| AC Current Measurement Resolution | 1mA |
| DC Current Measurement Resolution | 1mA |
| Best DC Current Accuracy | ±2.5 % |
| Clamp Meter Type | Mini AC/DC Clamp Meter |
| Best AC Current Accuracy | ±2.5 % |
| Best AC Voltage Accuracy | ±2 % |
| Jaw Capacity Busbars | 20mm |
| True RMS | Yes |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Duty Cycle, Frequency, Resistance, Temperature |
| Best DC Voltage Accuracy | ±1.5 % |
| Power Source | Battery |
| Absolute Maximum Temperature Measurement | +760°C |
| Battery Type | 9V |
| Safety Category Voltage | 600V |
| Temperature Measurement Resolution | 0.1°C |
| Resistance Measurement Resolution | 100mΩ |
| Best Temperature Measurement Accuracy | ±2 °C |
| Width | 37mm |
| Length | 70mm |
| Safety Category | CAT III 600V |
| Best Resistance Measurement Accuracy | ±1.5 % |
| DC Voltage Measurement Resolution | 0.1mV |
| Display Type | Backlight |
| Weight | 200g |
| Safety Category Level | CAT III |
| Dimensions | 70 x 37 x 210mm |
| AC Voltage Measurement Resolution | 0.1mV |
| Height | 210mm |
