ITT Cannon T2P Series, size 20 Male Crimp Contact for use with Trident T2P Contact System, Wire size 22 → 20 AWG

  • RS-artikelnummer 484-6579
  • Tillv. art.nr 192922-1460
  • Tillverkare / varumärke ITT Cannon
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): DE
Produktdetaljer

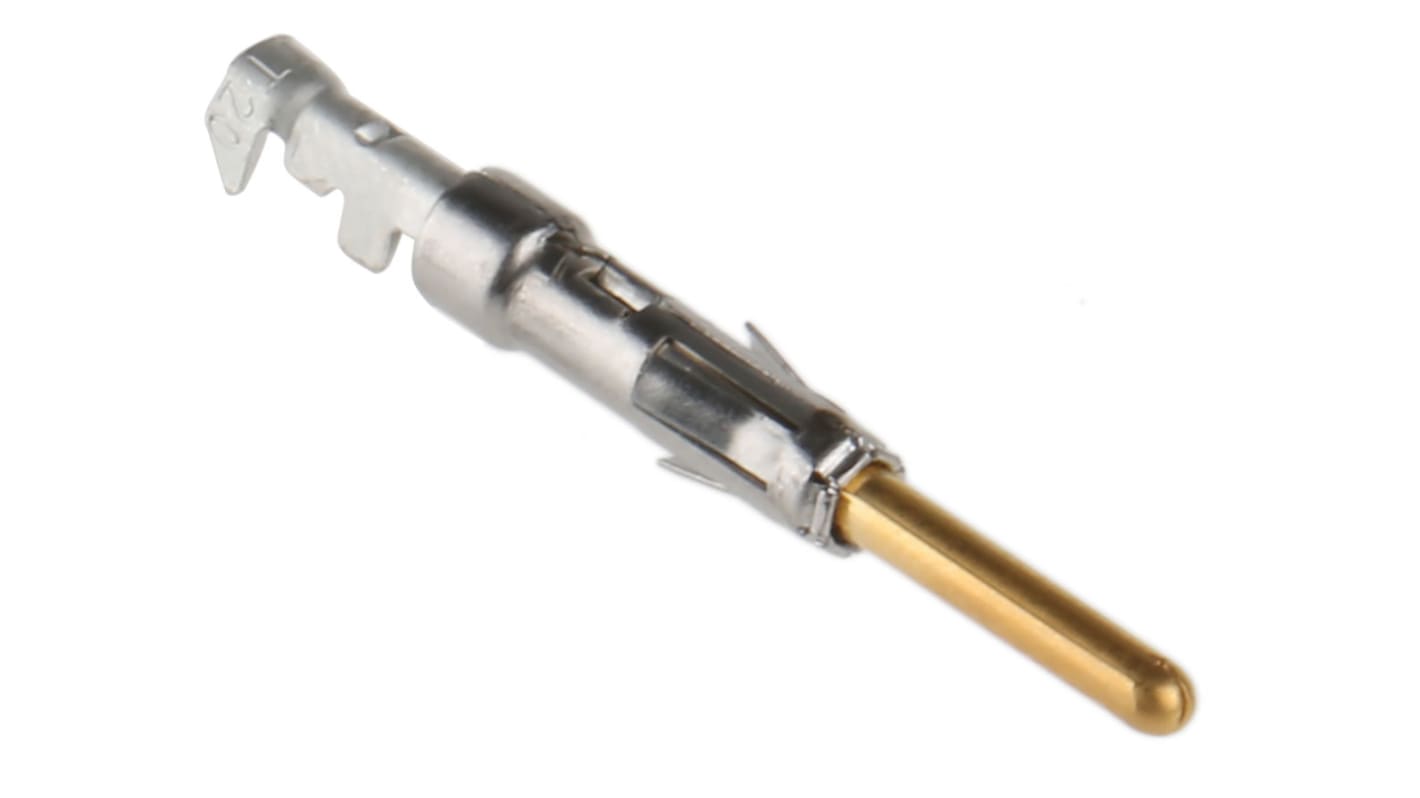

ITT Cannon Pin Contact

The ITT Cannon T2P series male pin contact has wire size ranging between 20AWG and 22AWG. This contact is made from brass and has gold plating. It can be used with the Trident T2P contact system.
QM Range Contacts and Tooling
The current rating quoted is for a single contact pair in isolation. When more than one pair of contacts in a connector is carrying appreciable current, the maximum permissible current per contact must be reduced to take the cumulative heating effect into account. This multi-way de-rating factor is established from similar factors established for multi-core cables.

Features and Benefits

Current rating is 13A
Initial contact resistance 5mohm
Contact area selectively gold plated
Up to 200 mating cycles
Cable mount
Crimp termination
Operating temperature ranging between -55°C and 125°C

Specifikationer
Attribute Value
Gender Male
Contact Size 20
Wire Size 22 → 20 AWG
Termination Method Crimp
Series T2P
For Use With Trident T2P Contact System
Contact Type Signal
Contact Plating Gold
Contact Material Brass
Minimum Operating Temperature -55°C
Maximum Operating Temperature +125°C
3550 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Pack of 10)
6,948 kr
(exkl. moms)
8,685 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
10 - 10
6,948 kr
69,48 kr
20 - 30
6,742 kr
67,42 kr
40 - 50
6,535 kr
65,35 kr
60 +
6,328 kr
63,28 kr
