QM THREE-PIECE SOCKET CONTACT,SIZE 20

  • RS-artikelnummer 190-3418
  • Tillv. art.nr 192991-0497
  • Tillverkare / varumärke ITT Cannon
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

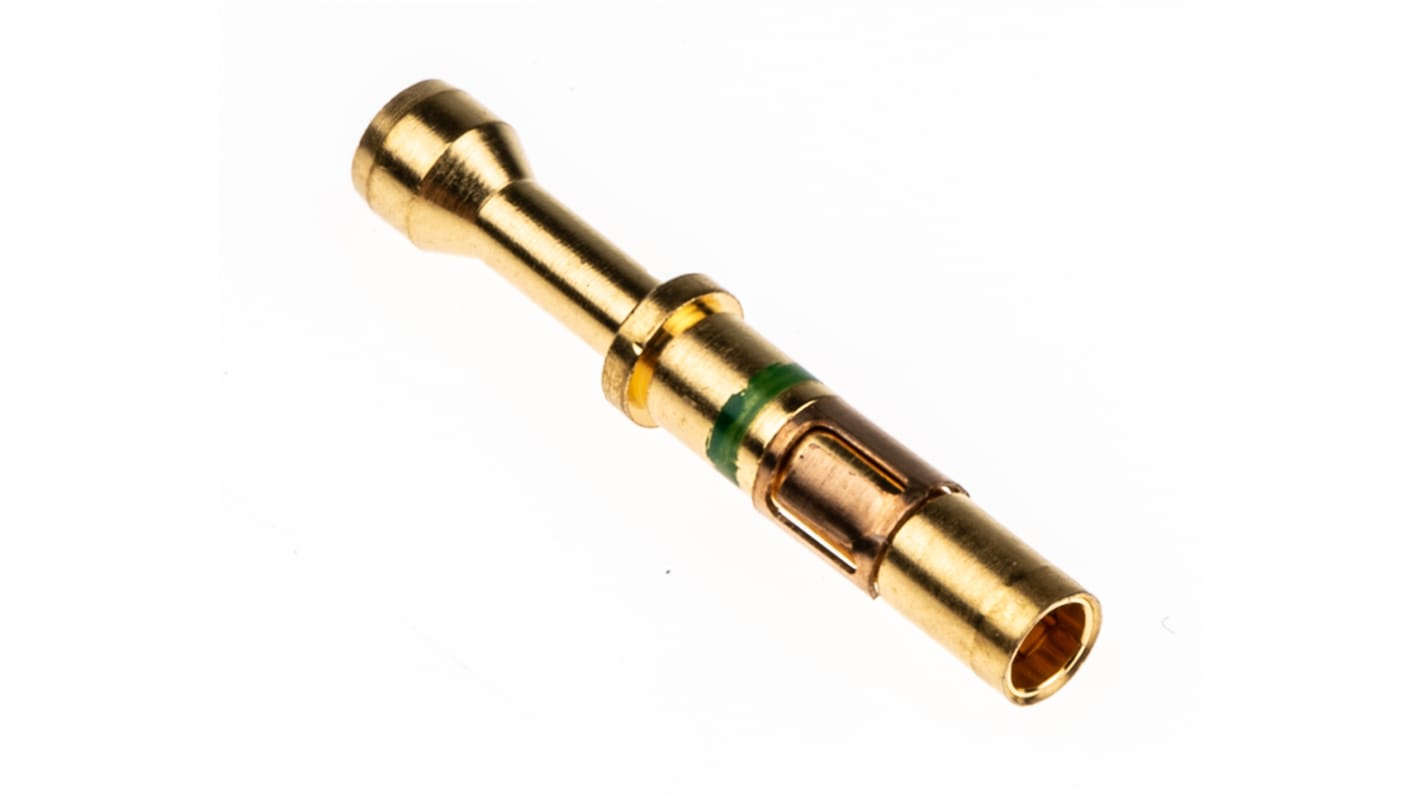

ITT Cannon Socket Contact

The ITT Cannon QM series female socket contact has a size 20 and wire size is 20AWG. This contact is made of brass and has gold plating. It can be used with the TNM connectors.
ITT TNM shielded
The TNM connector range builds on the popular Trident and Neptune ranging from ITT Cannon. They feature full metal construction, giving high reliability and durability.
RF shielding inherent in the full metal construction
Backshells enable cable braid termination so meeting EMC requirements
Signal versions have the same planform and contact arrangements as the QM range, so upgrading and interchangeability can be achieved.
Includes a rear rubber seal that enables to maintain if only some contacts are used. The rubber seal can be discarded if a backshell is to be used.
Cable, chassis and jam nut configurations available in standard and reversed formats.
One, two or three-part crimp contacts, also solder cup and PCB terminating contacts available for signal transfer. Power contacts are only required for power/signal connector types.

Features and Benefits

Current rating is 13A
Voltage rating is 250VAC
Contact resistance is 5mohm
Cable mount
Crimp termination
Operating temperature ranging between -55°C and 125°C

Specifikationer
Attribute Value
Gender Female
Contact Size 20
Wire Size 20 AWG
Termination Method Crimp
Series QM
For Use With TNM Connector
Current Rating 13A
Length 18.2mm
Contact Plating Gold
Voltage Rating 250 V ac
Contact Material Brass
Maximum Contact Resistance 5mΩ
Minimum Operating Temperature -55°C
Maximum Operating Temperature +105°C
Mounting Type Chassis Mount
