ITT Cannon 13A Female Crimp Contact for use with Trident Ringlock Connector

  • RS-artikelnummer 167-9770
  • Tillv. art.nr 192991-0041
  • Tillverkare / varumärke ITT Cannon
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

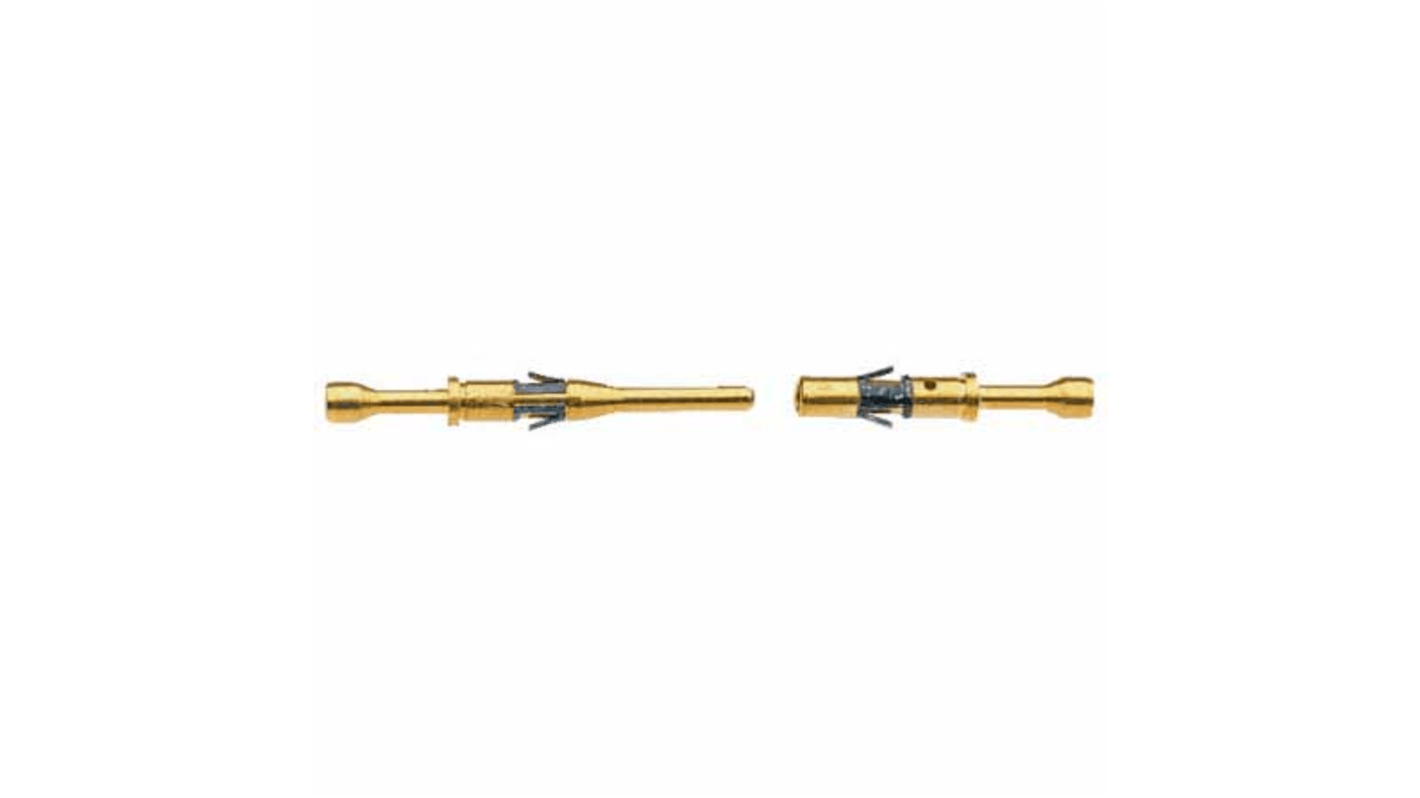

ITT Cannon Socket Contact

The ITT Cannon T3P series female socket contact has a wire size ranging size between 16AWG and 18AWG. This contact is made of brass and has gold flash plating. It can be used with the Trident T3P system.
ITT TNM shielded
The TNM connector range builds on the popular Trident and Neptune ranging from ITT Cannon. They feature full metal construction, giving high reliability and durability.
RF shielding inherent in the full metal construction
Backshells enable cable braid termination so meeting EMC requirements
Signal versions have the same planform and contact arrangements as the QM range, so upgrading and interchangeability can be achieved.
Includes a rear rubber seal that enables IP67 rating to be maintained if only some contacts are used. The rubber seal can be discarded if a backshell is to be used. Both are rated to IP67.
Cable, chassis and jam nut configurations available in standard and reversed formats.
One, two or three-part crimp contacts, also solder cup and PCB terminating contacts available for signal transfer. Power contacts are only required for power/signal connector types.

Features and Benefits

Current rating is 13A
Cable mount
Crimp termination

Specifikationer
Attribute Value
Gender Female
Termination Method Crimp
For Use With Trident Ringlock connector
Contact Type Signal
Current Rating 13A
Length 18.2mm
Contact Plating Gold
Contact Material Brass
Mounting Type Cable Mount
900 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Pack of 100)
12,522 kr
(exkl. moms)
15,652 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
100 - 400
12,522 kr
1 252,20 kr
500 - 2400
11,268 kr
1 126,80 kr
2500 +
10,142 kr
1 014,20 kr
