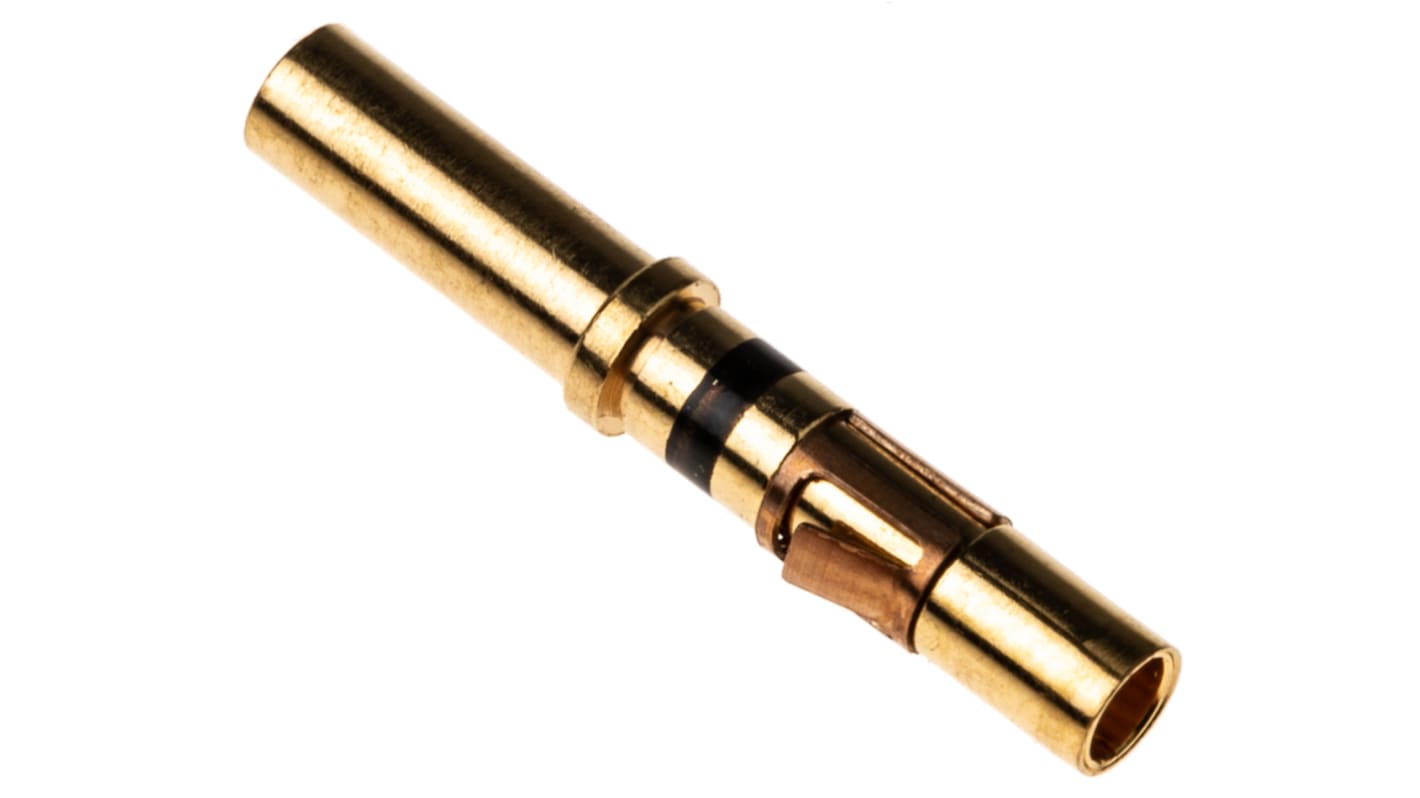

ITT Cannon T3P Series, 13A Female Crimp Contact for use with Trident T3P Contact System, Wire size 16 AWG

  • RS-artikelnummer 485-833
  • Tillv. art.nr 192991-0041/T3P16FC1LZ
  • Tillverkare / varumärke ITT Cannon
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

Three Piece Inserts (contacts)

Machined construction
Gold plated inserts
Resistant to damage from misalignment and the use of test probes
Colour-coded retention springs for easy identification
Current rating 13A

ITT TNM Shielded

The TNM connector range builds on the popular Trident and Neptune ranges from ITT Cannon. They feature full metal construction giving high reliability and durability.

RF shielding inherent in the full metal construction
Backshells enable cable braid termination so meeting EMC requirements
Signal versions have the same planform & contact arrangements as the QM range so upgrading and interchangeability can be achieved
Includes a rear rubber seal that enables IP67 rating to be maintained if only some contacts are used. The rubber seal can be discarded if a backshell is to be used. Both are rated to IP67
Cable, chassis and jam nut configurations available in standard and reversed formats
One, two or three part crimp contacts, also solder cup and PCB terminating contacts available for signal transfer. Power contacts are only required for power/signal connector types

Specifikationer
Attribute Value
Gender Female
Wire Size 16 AWG
Termination Method Crimp
Series T3P
For Use With Trident T3P Contact System
Contact Type Signal
Current Rating 13A
Length 18.2mm
Contact Plating Gold
Contact Material Brass
Mounting Type Cable Mount
9460 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Pack of 10)
11,633 kr
(exkl. moms)
14,541 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
10 - 190
11,633 kr
116,33 kr
200 - 390
10,777 kr
107,77 kr
400 +
9,699 kr
96,99 kr
