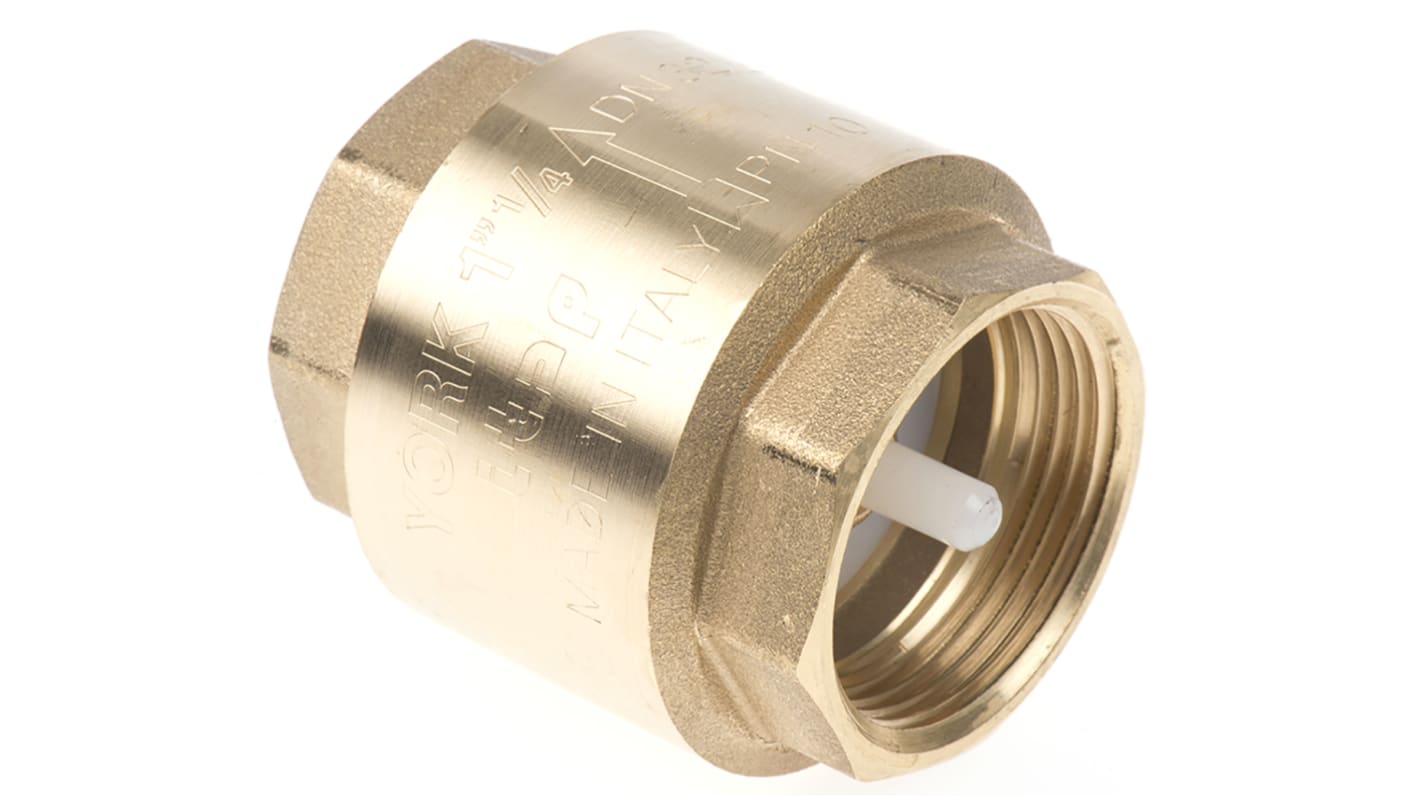

RS PRO Brass Single Non Return Valve 1-1/4 in BSPP

  • RS-artikelnummer 486-160
  • Tillverkare / varumärke RS PRO
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): IT
Produktdetaljer

S.120 spring loaded non return brass valve

Application : Industry, pneumatics, hydraulic, plumbing installations
Operating Temperature : -20゚C / +100゚C
Operating pressure : see non-shock cold working pressure chart on data sheet
Threads : ISO 228 parallel female by female threads
Stem : Nylon
NBR 65 SH/PS seal on nylon holder
Stainless steel spring
Performs well in any orientation
100% Made in Italy

Note

Approvals apply to specific configurations only

Approvals

GOST-R (Russia)
Expert Conclusion (Russia)
EAC Conforming (Russia)
RoHS Compliant

Standards

BS 2779

Warning

  • Freezing of the fluid in the installation may severely damage the valve
Specifikationer
Attribute Value
Type Single
Connection 1-1/4 in BSPP
Body Material Brass
Maximum Working Pressure 12 bar
Thread Size 1-1/4in
Thread Standard BSPP
40 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
228,92 kr
(exkl. moms)
286,15 kr
(inkl. moms)
Enheter
Per unit
1 - 4
228,92 kr
5 +
214,69 kr
