Martindale FD550 Fuse Finder, Cable Detection Depth 10cm CAT III 300 V, Maximum Safe Working Voltage 230V

  • RS-artikelnummer 719-0898
  • Tillv. art.nr RSFD550
  • Tillverkare / varumärke Martindale
Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
COO (Country of Origin): GB
Produktdetaljer

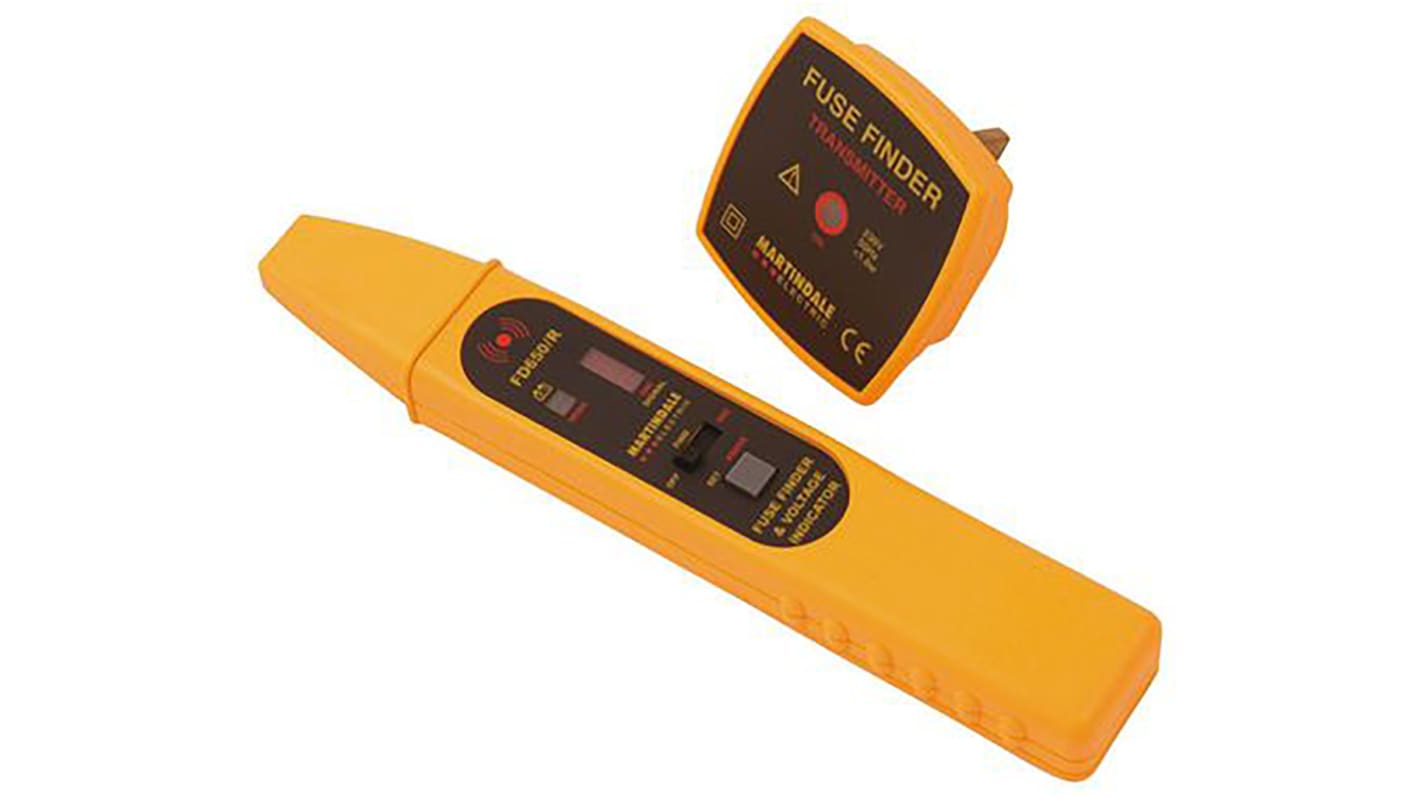

Elite Fuse Finder Martindale FD550

This microprocessor-controlled instrument quickly and accurately identifies which fuse or circuit breaker protects which circuit, avoiding accidentally isolating the wrong circuit

LED bargraph signal strength indicator
Automatic mode - automatic sensitivity adjustment with memory for reliable circuit identification
Manual mode - manual adjustment for rapid fuse finding
Non-contact voltage indicator to show presence of voltages from 40 to 600Vac
Single person operation
Supplied with 13A plug in transmitter, Elite receiver & instructions.
Requires 1 off MN1604/PP3 alkaline battery (stock No.463-0712) - which is included

Specifikationer
Attribute Value
Display Type LED
Cable Detection Depth 10cm
Meter Type Fuse Finder
Safety Category CAT III 300 V
Battery Type 9V
Power Source Battery
Includes Battery, Receiver, Transmitter
Maximum Frequency 70Hz
Maximum Operating Temperature +40°C
Maximum Safe Working Voltage 230V
Minimum Frequency 30 Hz
Minimum Operating Temperature -10°C
Model Number p FD550
Safety Category Level CAT III
Safety Category Voltage 300V
14 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
1 085,70 kr
(exkl. moms)
1 357,12 kr
(inkl. moms)
Enheter
Per unit
1 +
1 085,70 kr
Note
Denna produkt har engelsk stickkontakt.
