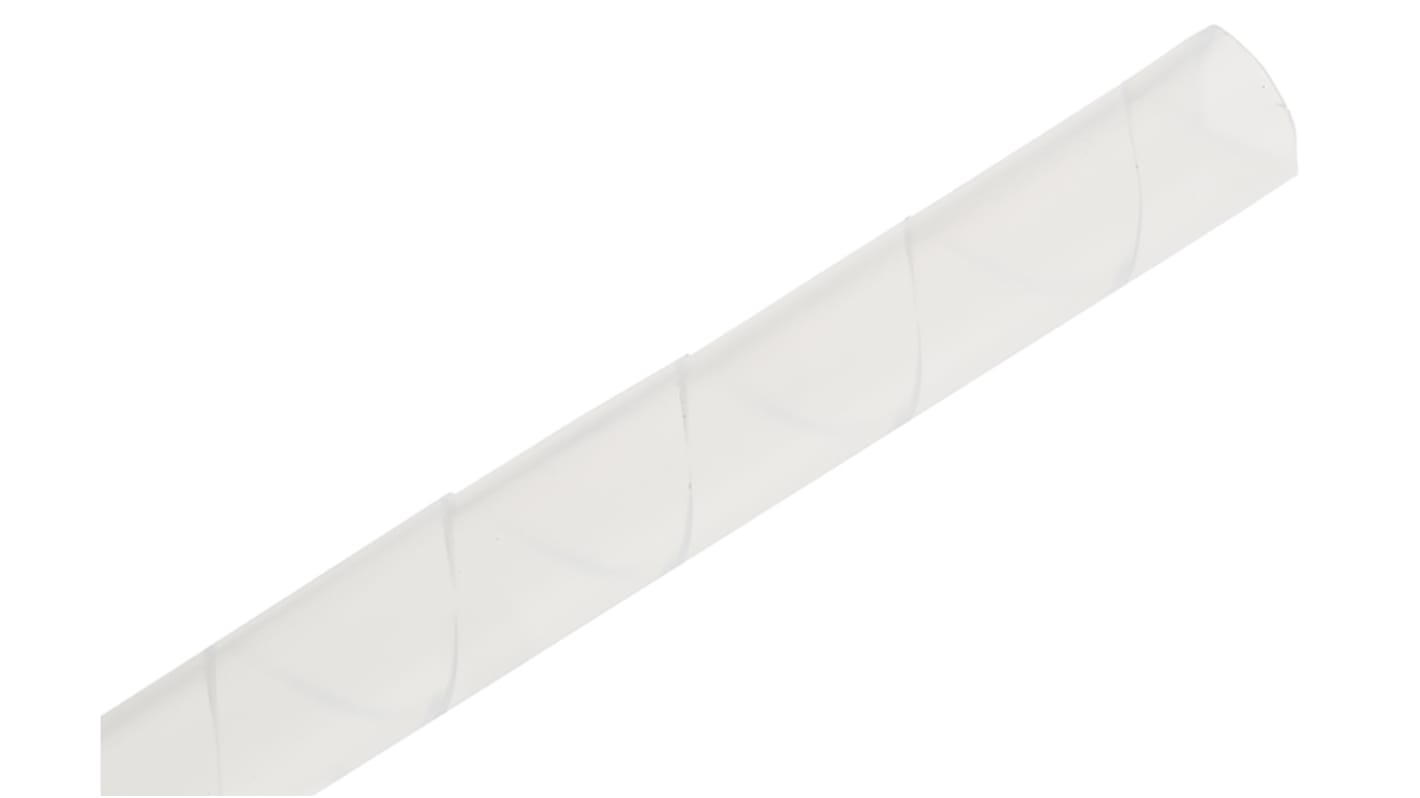

Richco Spiral Wrap, I.D 10.5mm 84.5mm polyethylene (PE)

  • RS-artikelnummer 102-5842
  • Tillv. art.nr SP-12-NAT (25 M)
  • Tillverkare / varumärke Richco
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): IT
Produktdetaljer

Spiral Tube

Features and Benefits

• Cable tie for flexible routing of cable harnesses
• Suitable for wires and cables of any kind
• Quick and easy assembly
• Wire ends can be withdrawn at any spot on the cable harness
• Good resistance to bases, weak acids and organic solvents
• Limited resistance to chlorate solvent
• Not UV stabilised

Standards

UL 94HB

//media.rs-online.com/t_line/LD102580-01.gif
Specifikationer
Attribute Value
Minimum Cable Diameter 11mm
Maximum Cable Diameter 84.5mm
Colour Natural
Internal Diameter 10.5mm
Material PE
Maximum Bundle Diameter 84.5mm
Minimum Operating Temperature -30°C
Maximum Operating Temperature +40°C
Length 25m
3 I lager för leverans inom 1 arbetsdagar
Inom 2 arbetsdag(ar) (UK lager)
Pris (ex. moms) Each
369,34 kr
(exkl. moms)
461,68 kr
(inkl. moms)
Enheter
Per unit
1 - 14
369,34 kr
15 - 49
350,89 kr
50 +
332,42 kr
