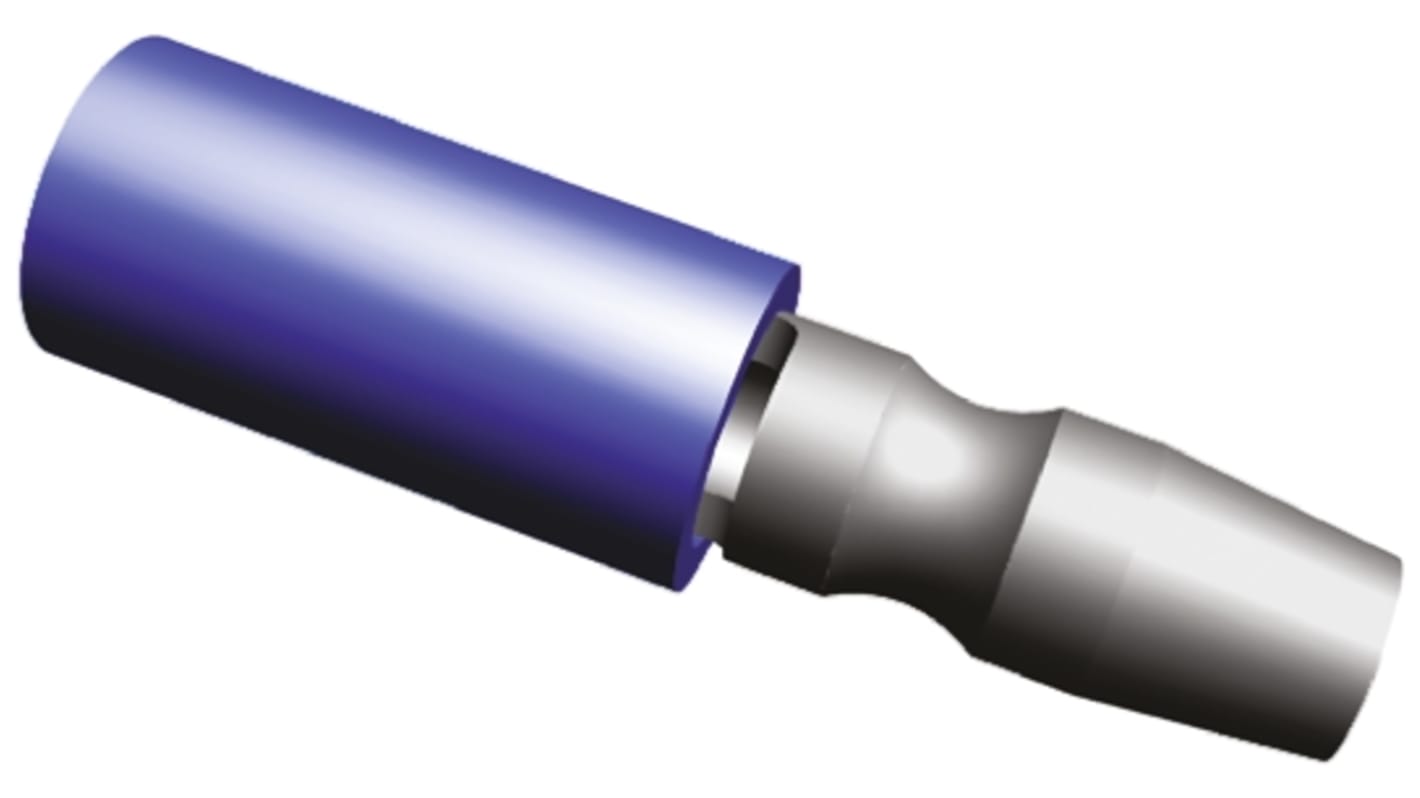

TE Connectivity, PIDG Insulated Male Crimp Bullet Connector, 1mm² to 2.6mm², 16AWG to 14AWG, 4mm Bullet diameter, Blue

  • RS-artikelnummer 795-2009
  • Tillv. art.nr 324225
  • Tillverkare / varumärke TE Connectivity
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): US
Produktdetaljer

TE Connectivity PIDG Crimp Bullet Connectors

PIDG (Pre-Insulated Diamond Grip) bullet connectors consisting of receptacle and plug terminals designed for uniform reliability in the most difficult circuit environments. These PIDG crimp bullet connectors consist of a precision-formed high conductivity copper body and barrel. Serrations inside the wire barrel provide maximum contact and tensile strength after crimping. The wire barrel is surrounded with a copper sleeve which provides wire insulation support. An outer colour coded nylon sleeve allows easy identification of wire size. These PIDG crimp bullet connectors also feature a funnelled wire entry which allows fast wire insertion during high-speed production. The construction of these PIDG terminals and the use of specialised tool dies allows a uniform and reliable crimp to be achieved
Available with various wire, barrel and stud sizes, these PIDG bullet terminals offer a versatile solution to a wide range of wiring applications

Features and Benefits

• High conductivity copper body
• Copper sleeve for improved wire insulation support
• Serrations in wire barrel for maximum contact and tensile strength
• Colour coded sleeves for easy wire size and tooling identification
• Funnelled wire entry for easy wire insertion
• Design enables a reliable and uniform crimp

Application

These PIDG crimp bullet connectors are suitable for use in a wide range of applications with many terminals meeting or exceeding the requirements of MIL-T-7928, Type II, Class 1 and 2. Applications include instruments/control, lighting, power supplies, panel boxes, transportation, lifting equipment, motors, aerospace and appliances.

TE Connectivity PIDG Terminals

Specifikationer
Attribute Value
Series PIDG
Insulation Insulated
Insulation Material Nylon
Overall Length 20.07mm
Gender Male
Minimum Wire Size mm² 1mm²
Maximum Wire Size mm² 2.6mm²
Minimum Wire Size AWG 16AWG
Maximum Wire Size AWG 14AWG
Bullet Diameter 4mm
Shrouded/Unshrouded Unshrouded
Colour Blue
Contact Plating Tin
Contact Material Copper
650 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Pack of 25)
9,262 kr
(exkl. moms)
11,578 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
25 +
9,262 kr
231,55 kr
Förpackningsalternativ:
