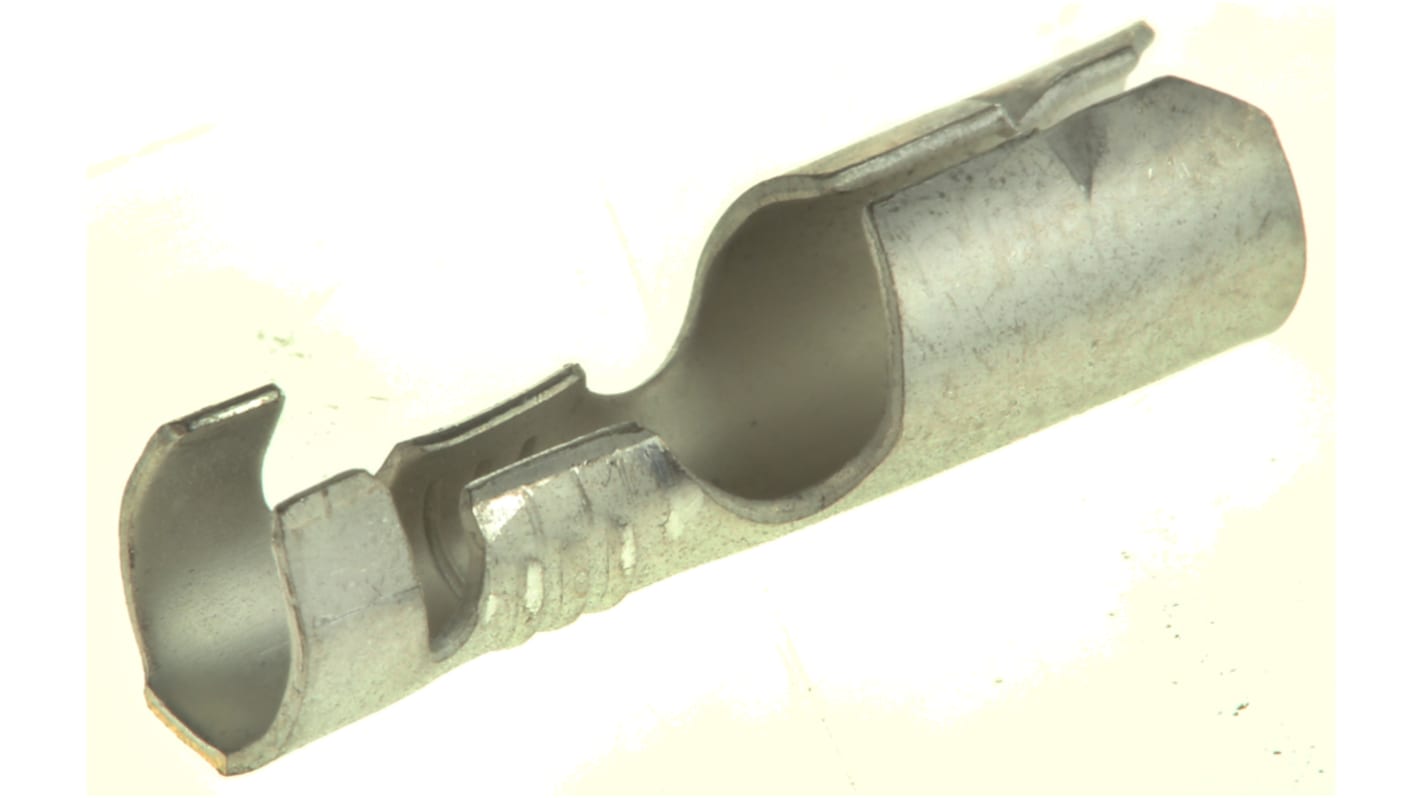

TE Connectivity Uninsulated Female Crimp Bullet Connector, 0.5mm² to 2.27mm², 20AWG to 14AWG, 4mm Bullet diameter


7450 I lager för leverans inom 1 arbetsdagar
Add to Basket

Pris (ex. moms) Each (In a Pack of 50)

2,175 kr

(exkl. moms)

2,719 kr

(inkl. moms)

Enheter

Lagt till varukorgen

Förpackningsalternativ:
RS-artikelnummer:
712-1558
Tillv. art.nr:
170021-2
Tillverkare / varumärke:
TE Connectivity
EnheterPer unitPer Pack*
50 - 2002,175 kr108,75 kr
250 - 12001,849 kr92,45 kr
1250 - 24501,525 kr76,25 kr
2500 - 49501,306 kr65,30 kr
5000 +1,087 kr54,35 kr
*price indicative

TE Connectivity SHUR-PLUG Bullet Receptacle Terminals


SHUR-PLUG bullet crimp receptacle terminals made from brass with a variety of platings. These SHUR-PLUG bullet receptacle connectors are for use with SHUR-PLUG bullet plug crimp terminals with a 3.96mm pin diameter apart from stock number 795-6449 which is for use with a 4.57mm diameter SHUR-PLUG bullet connector.


TE Connectivity Female Crimp Bullet Connector


The TE Connectivity SHUR-PLUG series is an uninsulated female crimp bullet connector. Its socket terminals are made from brass with a variety of plating.


Features and Benefits


• Bullet diameter 3.96mm
• Contact material brass
• Tin contact plating
• Mounting angle straight
• Unshrouded
• Wire gauge 14-20AWG


Shur Plugs and Shur Plug Receptacles

AttributeValue
InsulationUninsulated
GenderFemale
Overall Length18.5mm
Minimum Wire Size mm²0.5mm²
Maximum Wire Size mm²2.27mm²
Minimum Wire Size AWG20AWG
Maximum Wire Size AWG14AWG
Bullet Diameter4mm
Shrouded/UnshroudedUnshrouded
Contact PlatingTin
Contact MaterialBrass
