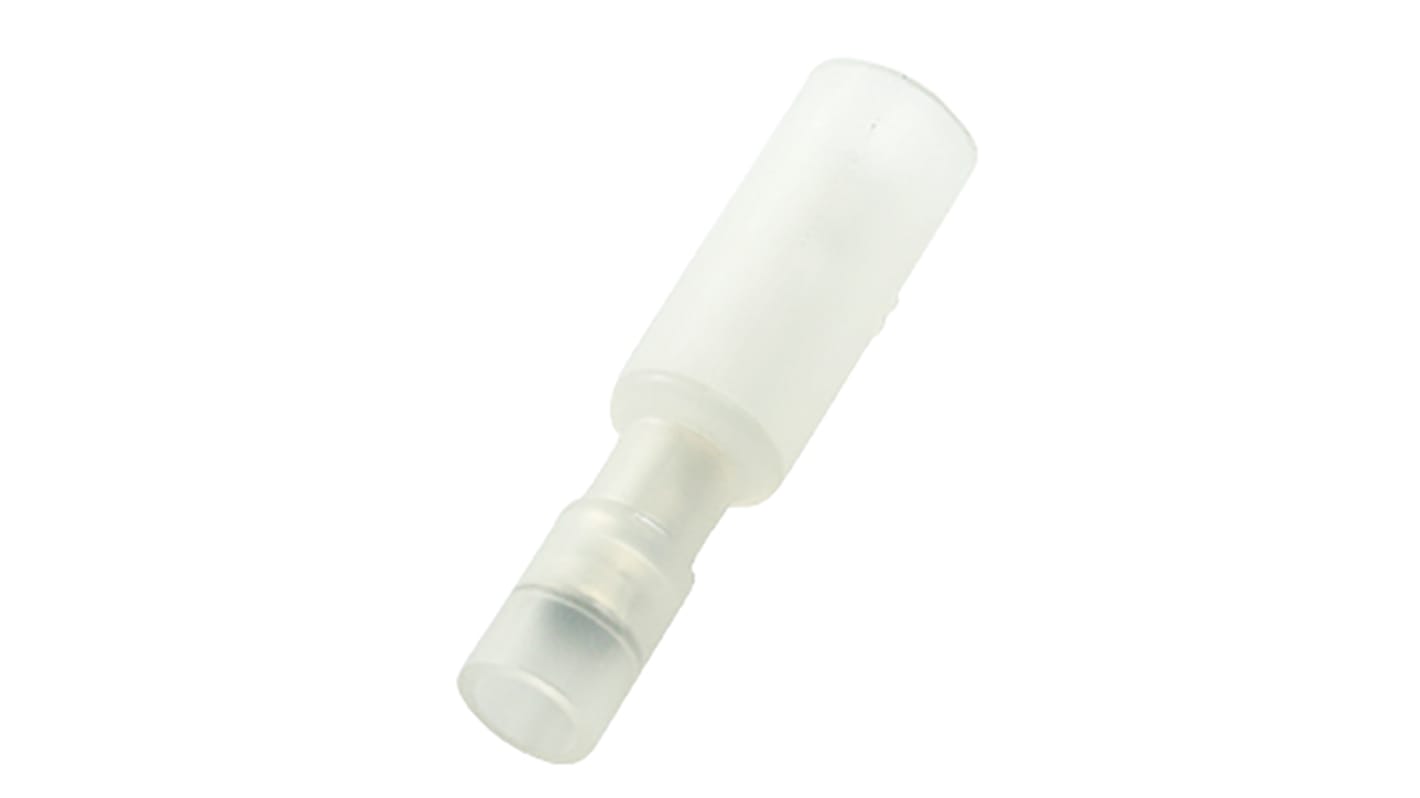

RS PRO Insulated Crimp Bullet Connector, 0.5mm² to 0.75mm², 22AWG to 18AWG, 2 mm, 3.5 mm Bullet diameter, Clear
- RS-artikelnummer:
- 178-8386
- Tillverkare / varumärke:
- RS PRO
Tillfälligt slut i lager – restorder för leverans 2024-07-23
Lagt till varukorgen
Pris (ex. moms) Var (i en påse med 100)
2,758 kr
(exkl. moms)
3,448 kr
(inkl. moms)
Enheter | Per unit | Per Bag* |
100 - 900 | 2,758 kr | 275,80 kr |
1000 - 1900 | 2,507 kr | 250,70 kr |
2000 - 4900 | 2,301 kr | 230,10 kr |
5000 - 9900 | 2,124 kr | 212,40 kr |
10000 + | 1,924 kr | 192,40 kr |
- RS-artikelnummer:
- 178-8386
- Tillverkare / varumärke:
- RS PRO
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TW
Produktdetaljer
RS PRO Insulated Double Crimp Bullet Disconnector
From our trusted and reliable own brand RS PRO, a range of high quality and affordable bullet disconnectors, ideal for applications that require solderless crimping of wire strands. These robust bullet disconnectors feature a brass construction, offering excellent connectivity with great resistance to corrosion. For enhanced safety, these double crimp bullet disconnectors also feature nylon insulation ensuring they can be handled safely whilst preventing the risk of electrical shock. RS PRO insulated double crimp bullet connectors are available in a variety of sizes offering flexibility for a range of applications.
Features and Benefits
- Quick and easy to install
- Cost effective solderless connection for wire strands
- Brass construction offering excellent corrosion resistance
- Nylon insulation to prevent the risk of electrical shock
- Transparent insulation allowing you to troubleshoot effectively
- Double crimp with copper sleeve on barrel
- Available in a range of AWG sizes
Applications
Bullet connectors are a type of crimping connector ideal for wire strand installations that require repetitive connect and disconnect solutions quickly and effectively. They are available in a wide range of AWG sizes with male and female options available and are commonly used in are such as:
- Automotive
- Audio and visual
- Automation
- Industrial
Why RS PRO?
RS PRO is our own brand range and brings you a wide selection of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards theyre only given the RS PRO seal of approval if were confident of their exceptional quality, which means you can be confident too.
Specifikationer
Attribute | Value |
---|---|
Insulation | Insulated |
Insulation Material | Nylon |
Overall Length | 27mm |
Minimum Wire Size mm² | 0.5mm² |
Maximum Wire Size mm² | 0.75mm² |
Minimum Wire Size AWG | 22AWG |
Maximum Wire Size AWG | 18AWG |
Bullet Diameter | 2 mm, 3.5 mm |
Colour | Clear |
Contact Material | Brass |
