TE Connectivity, 170020 Uninsulated Male Crimp Bullet Connector, 0.5mm² to 2.27mm², 20AWG to 14AWG, 4mm Bullet diameter
- RS-artikelnummer:
- 174-3207
- Tillv. art.nr:
- 170020-3
- Tillverkare / varumärke:
- TE Connectivity
Tillfälligt slut i lager – restorder för leverans 2024-04-22
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 50)
0,92 kr
(exkl. moms)
1,15 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 50 + | 0,92 kr | 46,00 kr |
- RS-artikelnummer:
- 174-3207
- Tillv. art.nr:
- 170020-3
- Tillverkare / varumärke:
- TE Connectivity
Lagstiftning och ursprungsland
Produktdetaljer

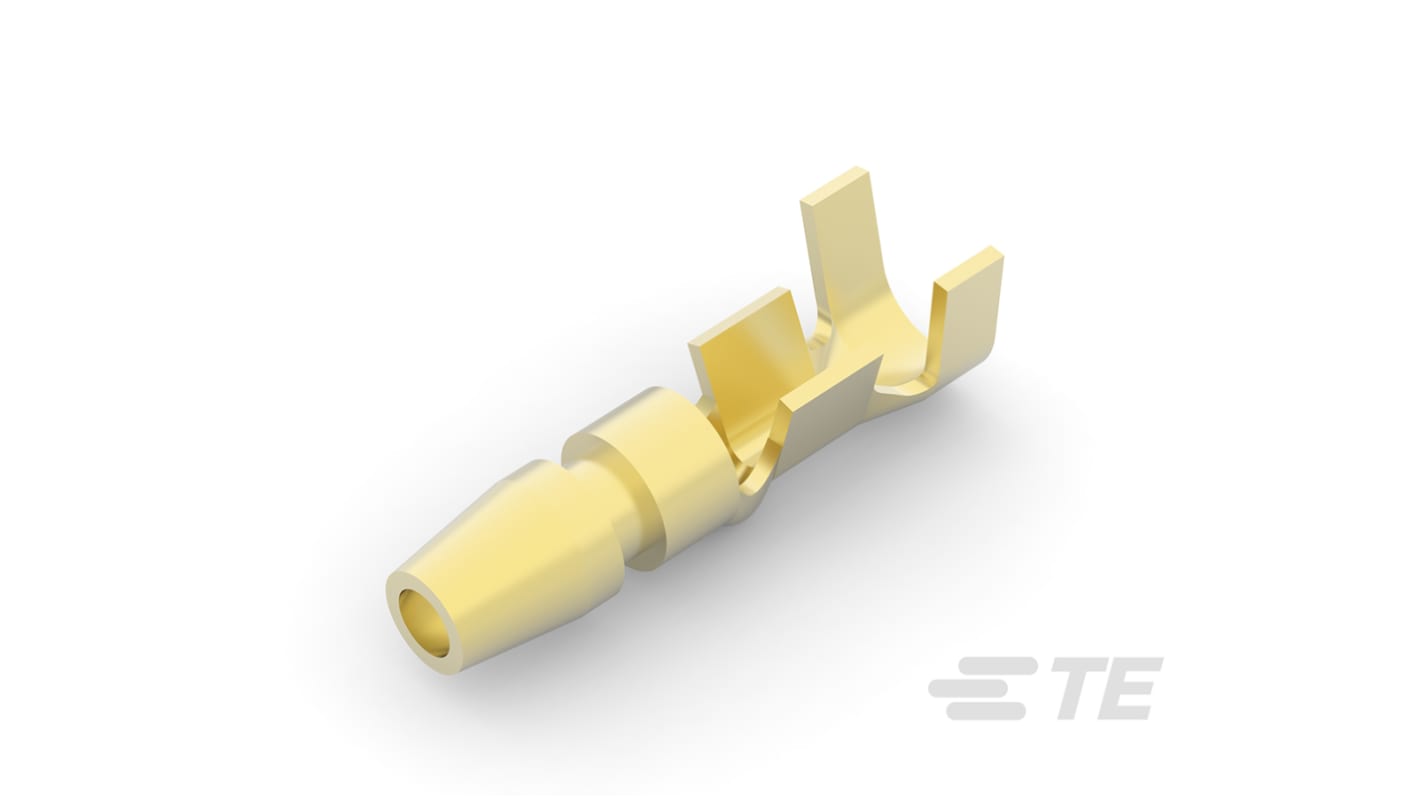

The TE Connectivity shur plug uninsulated male crimp bullet connector has 4mm pin diameter with brass and copper alloy contact material.
Shur-plug crimp wire pin, tab & ferrule terminal
Open barrel
Unplated terminal plating material
straight terminal orientation
wire insulation support
uninsulated insulation requirement
Open barrel
Unplated terminal plating material
straight terminal orientation
wire insulation support
uninsulated insulation requirement
Specifikationer
Attribute | Value |
|---|---|
| Series | 170020 |
| Insulation | Uninsulated |
| Overall Length | 18mm |
| Gender | Male |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 2.27mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 14AWG |
| Bullet Diameter | 4mm |
| Contact Material | Brass, Copper Alloy |
