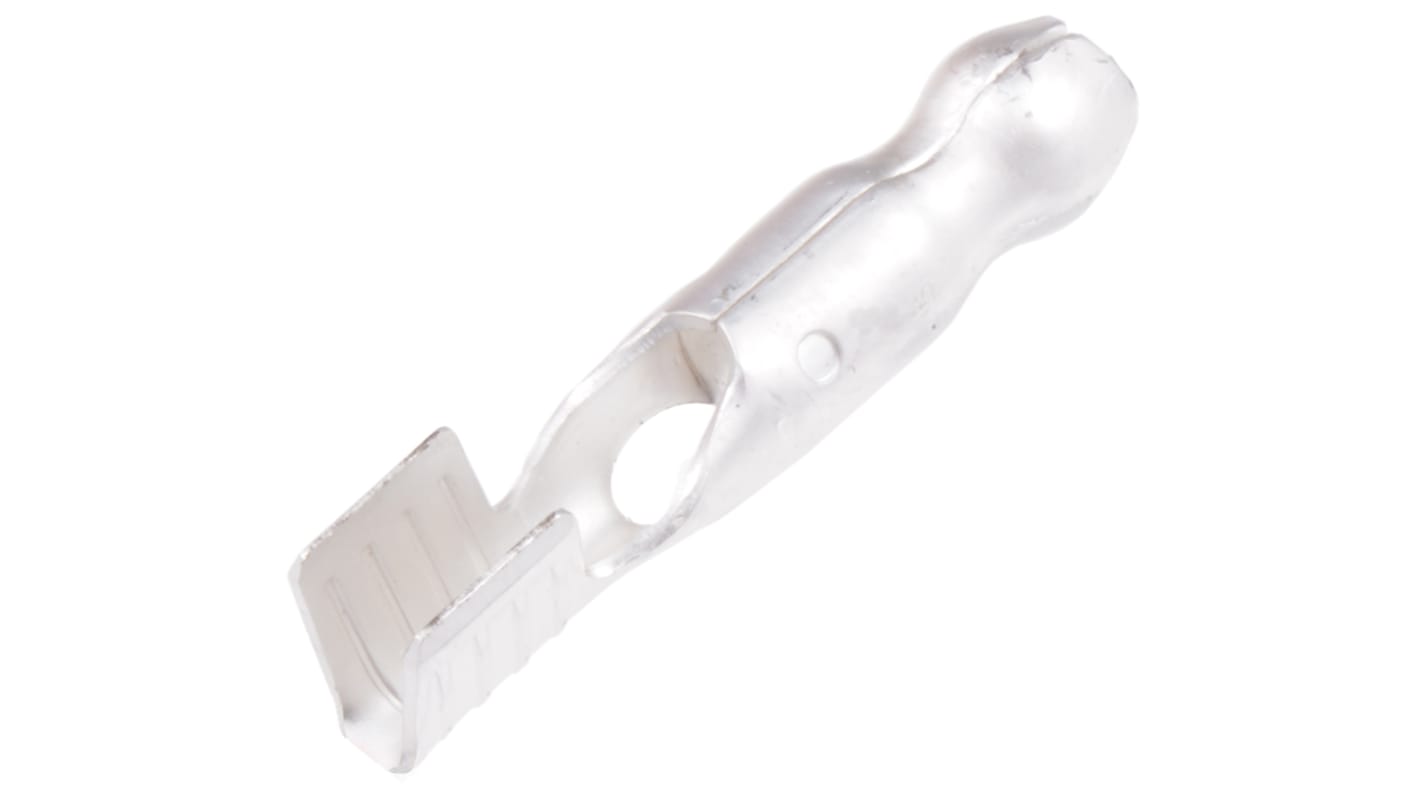

TE Connectivity Uninsulated Male Crimp Bullet Connector, 2mm² to 6mm², 14AWG to 10AWG, 4.57mm Bullet diameter

  • RS-artikelnummer 164-3278
  • Tillv. art.nr 42865-3
  • Tillverkare / varumärke TE Connectivity
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): US
Produktdetaljer

TE Connectivity Crimp Bullet Connectors

Crimp bullet connectors made from tin plated brass. These crimp bullet plug connectors have a 3.96mm pin diameter apart from stock number 719-6212 which has a 3.56mm pin diameter and stock number 795-6442 which has a 4.57mm pin diameter.

TE Connectivity Male Crimp Bullet Connector

The TE Connectivity SHUR-PLUG series is an uninsulated male crimp bullet connector. Its socket terminals are made from brass with a variety of plating.

Features and Benefits

• Bullet diameter 4.57mm
• Contact material brass
• Tin contact plating
• Mounting angle straight
• Unshrouded
• Wire gauge 10-14AWG

Shur Plugs and Shur Plug Receptacles

Specifikationer
Attribute Value
Insulation Uninsulated
Overall Length 21.97mm
Gender Male
Minimum Wire Size mm² 2mm²
Maximum Wire Size mm² 6mm²
Minimum Wire Size AWG 14AWG
Maximum Wire Size AWG 10AWG
Bullet Diameter 4.6mm
Shrouded/Unshrouded Unshrouded
Contact Plating Tin
Contact Material Brass
Tillfälligt slut i lager – restorder för leverans 2020-11-23
Pris (ex. moms) 1 Reel of 5000
4 550,69 kr
(exkl. moms)
5 688,36 kr
(inkl. moms)
Rulle(ar)
Per Reel
Per unit*
1 +
4 550,69 kr
0,91 kr
