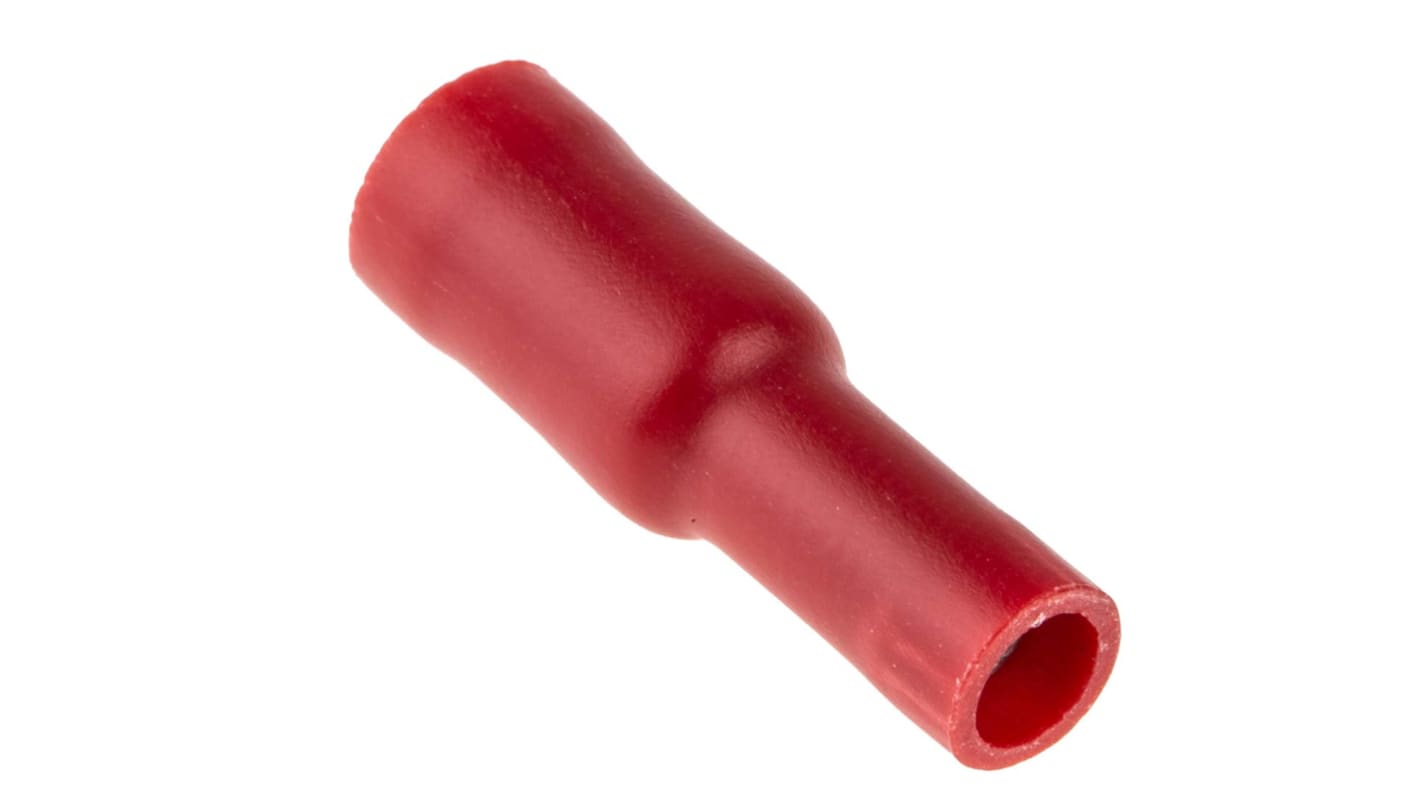

RS PRO Insulated Female Crimp Bullet Connector, 0.5mm² to 1.5mm², 22AWG to 16AWG, 4.3mm Bullet diameter, Red

  • RS-artikelnummer 534-317
  • Tillverkare / varumärke RS PRO
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): TW
Produktdetaljer

RS Pro Fully Insulated Double Crimp Female Bullet Terminals

A range of RS Pro fully insulated female double crimp bullet terminals with a copper sleeve and flared vinyl insulation. These insulated female crimp bullet wire terminals are colour coded for use with different wire sizes. All models are highly reliable and excellent quality.

Wire Sizes

Red 0.5 - 1.5 mm²
Blue 1.5 - 2.5 mm²
Yellow 2.5 - 6.5 mm²

RS Pro Range

Specifikationer
Attribute Value
Insulation Insulated
Insulation Material PVC
Overall Length 22.5mm
Gender Female
Minimum Wire Size mm² 0.5mm²
Maximum Wire Size mm² 1.5mm²
Minimum Wire Size AWG 22AWG
Maximum Wire Size AWG 16AWG
Bullet Diameter 4.3mm
Shrouded/Unshrouded Shrouded
Colour Red
Contact Plating Tin
Contact Material Brass
71000 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Pack of 100)
1,437 kr
(exkl. moms)
1,796 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
100 - 400
1,437 kr
143,70 kr
500 - 2400
1,294 kr
129,40 kr
2500 - 4900
1,149 kr
114,90 kr
5000 - 9900
0,285 kr
28,50 kr
10000 +
0,267 kr
26,70 kr
