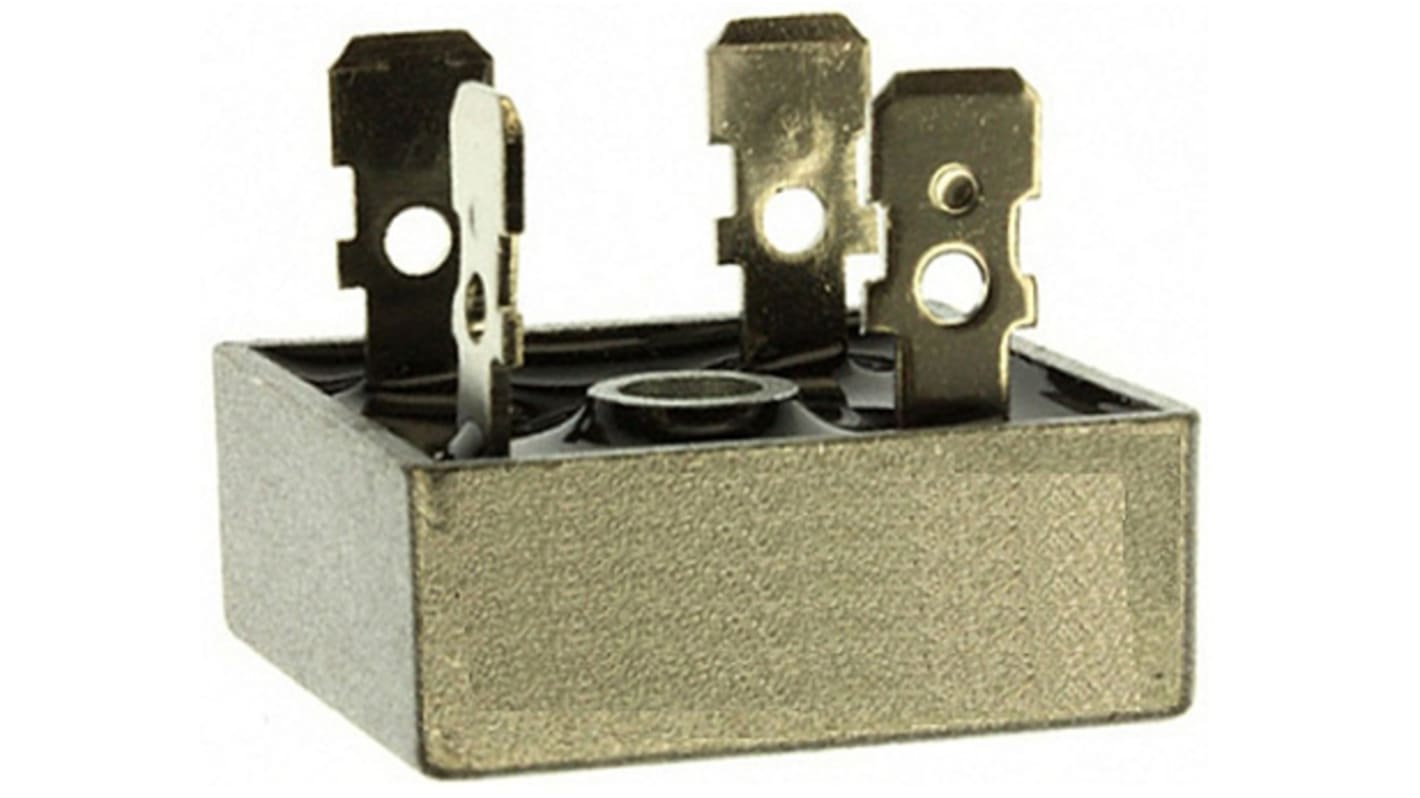

HY Electronic Corp Bridge Rectifier, 25A, 1000V, 4-Pin

RS-artikelnummer:: 917-9007P
Tillv. art.nr:: KBPC2510
Tillverkare / varumärke:: HY Electronic Corp

HY Electronic Corp Bridge Rectifier, 25A, 1000V, 4-Pin

810 I lager för avsändande samma dag

Lagt till varukorgen

Pris (ex. moms) Varje (levereras i en låda)

32,251 kr

(exkl. moms)

40,314 kr

(inkl. moms)

Enheter	Per unit
100 - 240	32,251 kr
250 - 990	31,42 kr
1000 +	30,632 kr

RS-artikelnummer:: 917-9007P
Tillv. art.nr:: KBPC2510
Tillverkare / varumärke:: HY Electronic Corp

Datablad

Lagstiftning och ursprungsland

COO (Country of Origin):: CN

Produktdetaljer

Bridge Rectifier - KBPC Series

The KBPC family of silicon bridge rectifiers has a reverse voltage of 600 V or 1000 V. The rectifiers offer different forward currents ranging from 15A to 50 A. There are two types available, the KBPC W and the KBPC series which comes with 0.25 in solder FAST ON terminals. They are used in AC to DC conversion and in printed circuit applications.

Surge overload: -240 A to 500 A peaks
Electrically isolated base -2000 V
Low forward voltage drop
Material: U/L recognition
Solder 0.25 FAST ON terminals (KBPC only)

Bridge Rectifiers - HY Electronic (Cayman) Limited

Specifikationer

Attribute	Value
Peak Average Forward Current	25A
Bridge Type	Single Phase
Peak Reverse Repetitive Voltage	1000V
Mounting Type	Through Hole
Package Type	KBPC
Pin Count	4
Diode Technology	Silicon Junction
Diode Type	Silicon Junction
Configuration	Single
Peak Non-Repetitive Forward Surge Current	400A
Maximum Operating Temperature	+150 °C
Minimum Operating Temperature	-55 °C
Peak Forward Voltage	1.1V
Peak Reverse Current	10µA
Length	28.8mm
Dimensions	28.8 x 28.8 x 11.23mm
Width	28.8mm
Height	11.23mm
