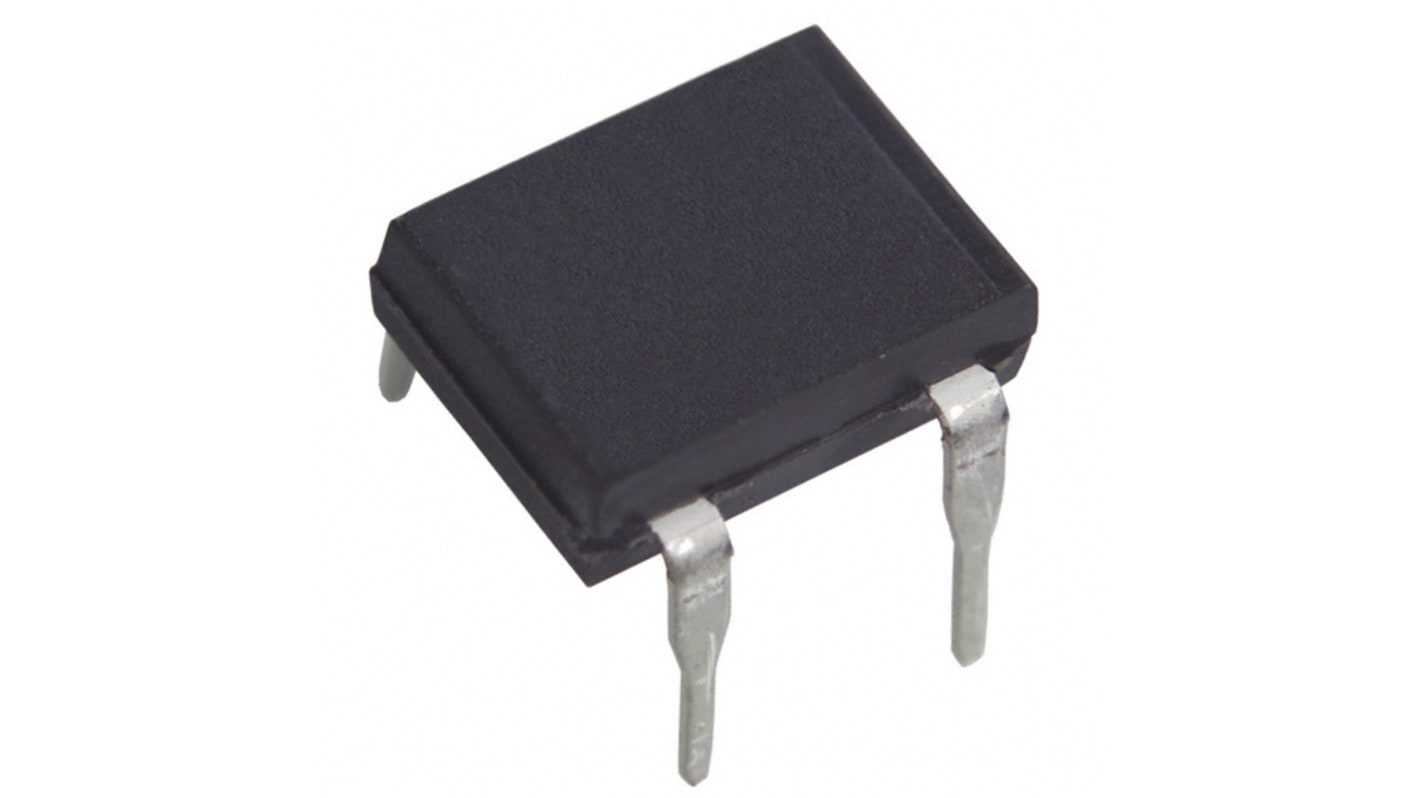

Diodes Inc Bridge Rectifier, 1A, 600V, 4-Pin
- RS-artikelnummer:
- 122-0921
- Tillv. art.nr:
- DF06M
- Tillverkare / varumärke:
- DiodesZetex
450 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett rör med 50)
4,074 kr
(exkl. moms)
5,092 kr
(inkl. moms)
| Enheter | Per unit | Per Tube* |
| 50 - 200 | 4,074 kr | 203,70 kr |
| 250 - 950 | 3,484 kr | 174,20 kr |
| 1000 - 2450 | 3,396 kr | 169,80 kr |
| 2500 + | 3,311 kr | 165,55 kr |
- RS-artikelnummer:
- 122-0921
- Tillv. art.nr:
- DF06M
- Tillverkare / varumärke:
- DiodesZetex
Lagstiftning och ursprungsland
Produktdetaljer
Bridge Rectifiers for PCB Mounting, DFxxM Series, Diodes Inc
Glass Passivated Die Construction
Low Forward Voltage Drop
High Current Capability
Low Forward Voltage Drop
High Current Capability
Approvals
UL E94661
Bridge Rectifiers - Diodes Inc
A Bridge Rectifier is a diode common application, known for converting an Alternating Current (AC) input into Direct Current a (DC) output. A diode bridge is an arrangement of four diodes in a bridge circuit configuration that provides the same polarity of output for either polarity of input.
Specifikationer
Attribute | Value |
|---|---|
| Bridge Type | Single Phase |
| Peak Average Forward Current | 1A |
| Peak Reverse Repetitive Voltage | 600V |
| Mounting Type | Through Hole |
| Package Type | DF-M |
| Pin Count | 4 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 50A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -65 °C |
| Peak Forward Voltage | 1.1V |
| Peak Reverse Current | 500µA |
| Dimensions | 8.51 x 6.5 x 3.4mm |
| Length | 8.51mm |
| Width | 6.5mm |
| Height | 3.4mm |
