- RS-artikelnummer:
- 188-5295
- Tillv. art.nr:
- CYBT-413034-02
- Tillverkare / varumärke:
- Infineon
218 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
78,73 kr
(exkl. moms)
98,41 kr
(inkl. moms)
Enheter | Per unit |
1 + | 78,73 kr |
- RS-artikelnummer:
- 188-5295
- Tillv. art.nr:
- CYBT-413034-02
- Tillverkare / varumärke:
- Infineon
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer

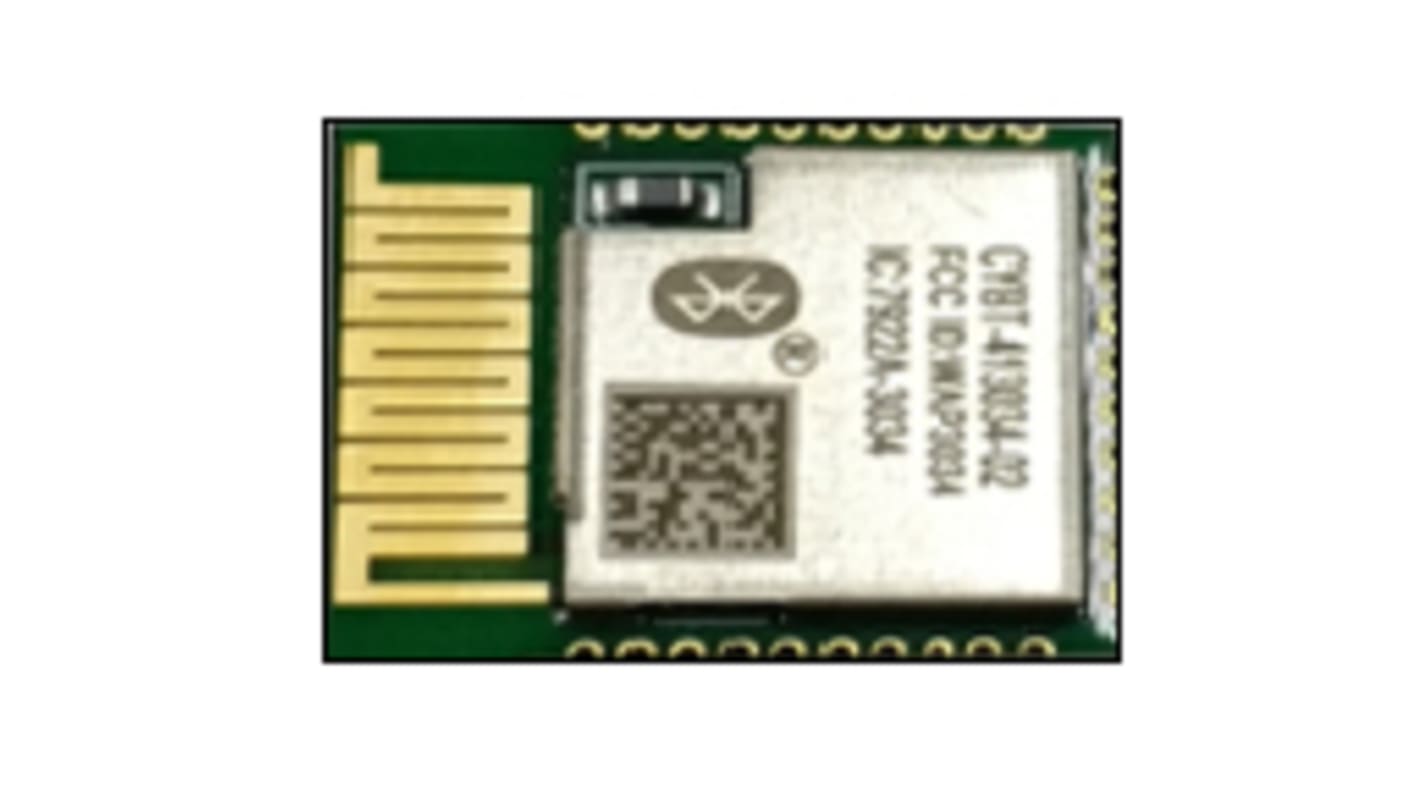

The CYBT-413034-02 is a dual-mode Bluetooth BR/EDR and Low Energy (BLE) wireless module solution. The CYBT-413034-02
includes onboard crystal oscillators, passive components, and the Cypress CYW20719 silicon device.
The CYBT-413034-02 supports a number of peripheral functions (ADC, PWM), as well as multiple serial communication protocols
(UART, SPI, I2C, I2S/PCM). The CYBT-413034-02 includes a royalty-free stack compatible with Bluetooth 5.0 in a small 12.0 ´ 16.3
´ 1.70 mm module form-factor.
The CYBT-413034-02 includes an integrated chip antenna, is qulaified by Bluetooth SIG, and includes regulatory certification approval
for FCC, ISED, MIC, and CE.
includes onboard crystal oscillators, passive components, and the Cypress CYW20719 silicon device.
The CYBT-413034-02 supports a number of peripheral functions (ADC, PWM), as well as multiple serial communication protocols
(UART, SPI, I2C, I2S/PCM). The CYBT-413034-02 includes a royalty-free stack compatible with Bluetooth 5.0 in a small 12.0 ´ 16.3
´ 1.70 mm module form-factor.
The CYBT-413034-02 includes an integrated chip antenna, is qulaified by Bluetooth SIG, and includes regulatory certification approval
for FCC, ISED, MIC, and CE.
Specifikationer
Attribute | Value |
---|---|
Bluetooth Class | Class 2 |
Bluetooth Version | 5 |
Maximum Output Power | 4dBm |
Receiver Sensitivity | -95dBm |
Supported I/O Interfaces | I2C, SPI, UART |
Dimensions | 16.3 x 12 x 1.7mm |
Height | 1.7mm |
Length | 16.3mm |
Maximum Operating Temperature | +85 °C |
Minimum Operating Temperature | -30 °C |
Width | 12mm |
