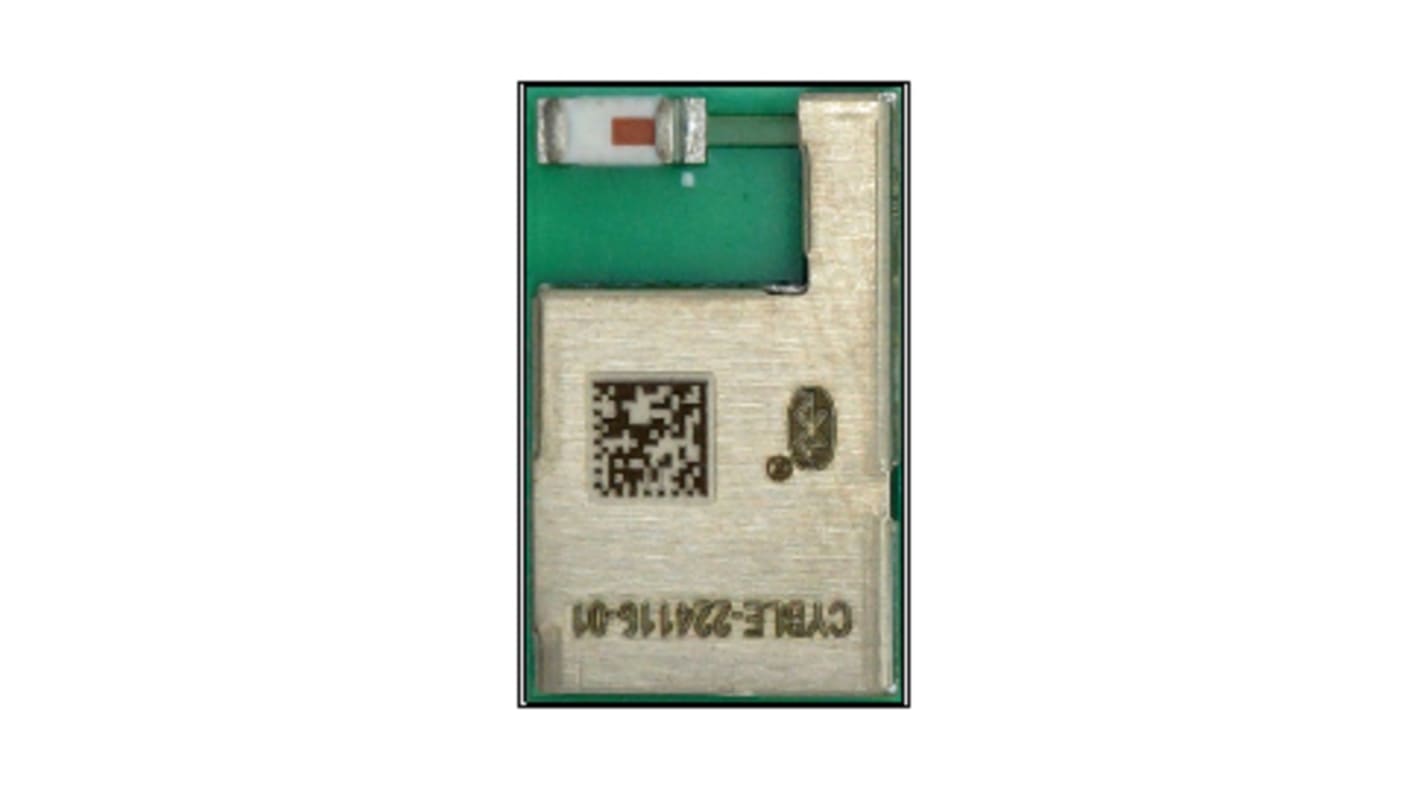

Infineon CYBLE-224116-01 Bluetooth Module 4.2
- RS-artikelnummer:
- 187-7656
- Tillv. art.nr:
- CYBLE-224116-01
- Tillverkare / varumärke:
- Infineon
Tillfälligt slut i lager – restorder för leverans 2025-04-30
Lagt till varukorgen
Pris (ex. moms) Var (i en rulle med 500)
177,59 kr
(exkl. moms)
221,99 kr
(inkl. moms)
| Enheter | Per unit | Per Reel* |
| 500 + | 177,59 kr | 88 795,00 kr |
- RS-artikelnummer:
- 187-7656
- Tillv. art.nr:
- CYBLE-224116-01
- Tillverkare / varumärke:
- Infineon
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Module size: 9.5 mm ´ 15.4 mm ´ 1.80 mm (with shield)
Extended Range: Up to 400 meters line-of-sight
Extended industrial temperature range: -40 °C to +105 °C
Up to 25 GPIOs
256-KB flash memory, 32-KB SRAM memory
32-bit processor (0.9 DMIPS/MHz) with single-cycle 32-bit multiply, operating at up to 48 MHz
Programmable Analogue
4 x Op amps
1 x 12-bit, 1-Msps SAR ADC
1 x Low-Power Comparators
1 x Cypress CapSense™ touch controller with SmartSense™ Auto-Tuning
Programmable digital
4 x universal digital blocks
4 x 16-bit configurable Timer/Counter/PWM blocks
2 x configurable serial communication blocks
Watchdog timer with dedicated internal low-speed oscillator (ILO)
Two-pin SWD for Programming
Extended Range: Up to 400 meters line-of-sight
Extended industrial temperature range: -40 °C to +105 °C
Up to 25 GPIOs
256-KB flash memory, 32-KB SRAM memory
32-bit processor (0.9 DMIPS/MHz) with single-cycle 32-bit multiply, operating at up to 48 MHz
Programmable Analogue
4 x Op amps
1 x 12-bit, 1-Msps SAR ADC
1 x Low-Power Comparators
1 x Cypress CapSense™ touch controller with SmartSense™ Auto-Tuning
Programmable digital
4 x universal digital blocks
4 x 16-bit configurable Timer/Counter/PWM blocks
2 x configurable serial communication blocks
Watchdog timer with dedicated internal low-speed oscillator (ILO)
Two-pin SWD for Programming
Specifikationer
Attribute | Value |
|---|---|
| Bluetooth Version | 4.2 |
| Maximum Output Power | 9.5dBm |
| Receiver Sensitivity | -95dBm |
| Supported I/O Interfaces | I2C, SPI, UART |
| Dimensions | 15.4 x 9.5 x 1.8mm |
| Height | 1.8mm |
| Length | 15.4mm |
| Maximum Operating Temperature | +105 °C |
| Minimum Operating Temperature | -40 °C |
| Width | 9.5mm |
