Cypress Semiconductor CYW954907AEVAL1F Bluetooth Chip

Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

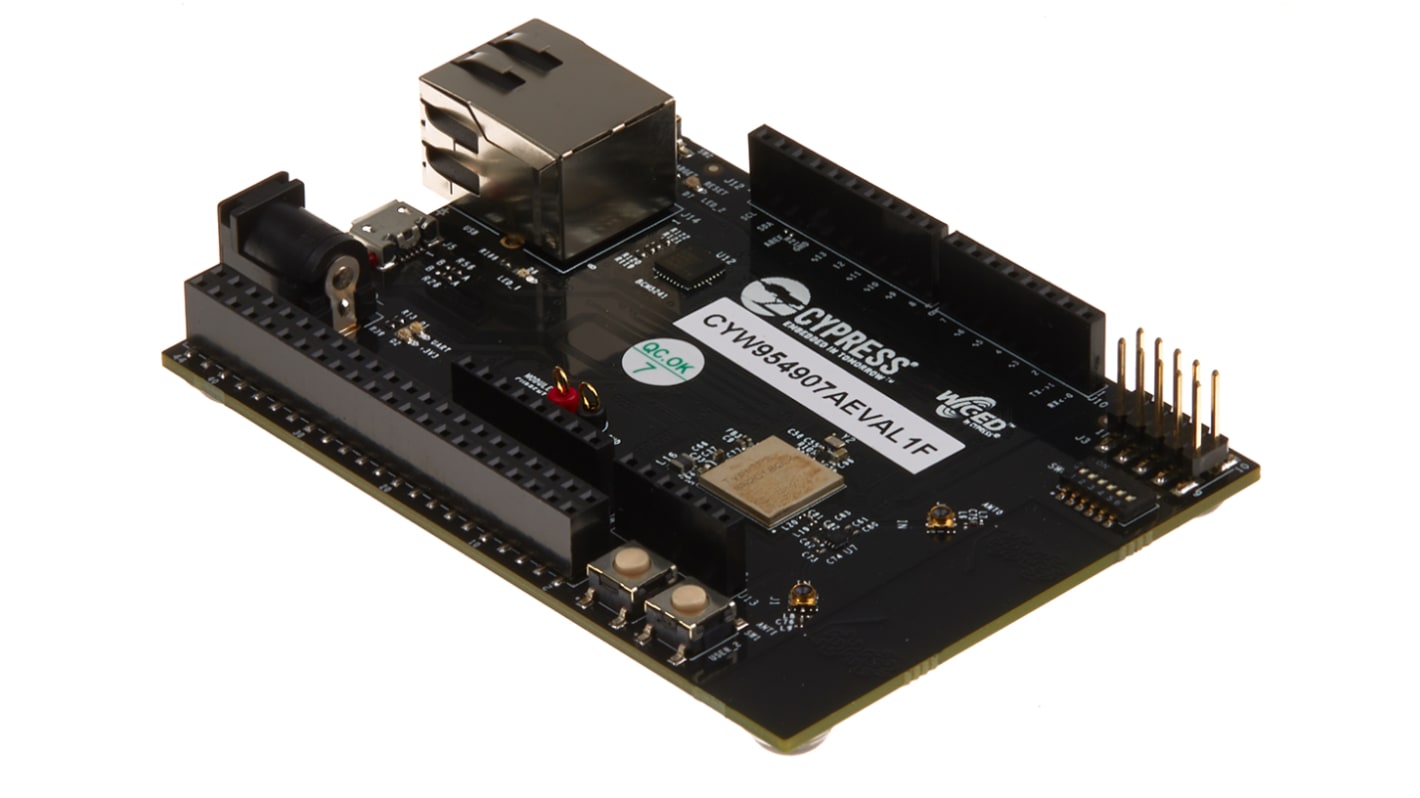

Cypress Semiconductor Bluetooth evaluation board

The Cypress semiconductor Bluetooth evaluation board is a device that enables you to evaluate and develop single-chip Wi-Fi applications using the CYW54907 device. It is single-chip 802.11ac dual-band (2.4 GHz and 5 GHz) Wi-Fi SoC that features 320-MHz Arm Cortex-R4 MCU device. This kit is supported in WICED Studio IDE. The Arduino compatibility allows to plugin off the shelf shields to expand hardware functionality for quick prototyping.

Features and Benefits

• 5V to 12V input using USB connector or power jack
• Arduino compatible headers for hardware expansion
• Custom header to bring out additional GPIOs (WICED header)
• On-board PCB antenna with an option to connect external antenna
• On-board programmer and debugger using USB interface and USB-UART bridge
• One USB 2.0 Type-A to Micro-B cable
• RJ45 connector for Ethernet
• User switches and LEDs

Applications

• Embedded
• IoT

Specifikationer
Attribute Value
Supported Bus Interfaces SPI, USB
5 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
923,26 kr
(exkl. moms)
1 154,08 kr
(inkl. moms)
Enheter
Per unit
1 - 1
923,26 kr
2 - 4
899,58 kr
5 +
877,14 kr
