- RS-artikelnummer:
- 223-6437
- Tillv. art.nr:
- MAX86140ENP+T
- Tillverkare / varumärke:
- Maxim Integrated
- RS-artikelnummer:
- 223-6437
- Tillv. art.nr:
- MAX86140ENP+T
- Tillverkare / varumärke:
- Maxim Integrated
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
The Maxim Integrated MAX86140 are ultra-low-power, completely integrated, optical data acquisition systems. On the transmitter side, the MAX86140 have three programmable high-current LED drivers that can be configured to drive up to six LEDs using an external 3x2:1 mux. With two MAX86140 devices working in master-slave mode, the LED drivers can drive up to twelve LEDs using an external 3x2:1 mux. . On the receiver side, MAX86140 consists of a single optical readout channel. The devices have low noise signal conditioning analog front-end (AFE) including 19-bit ADC, an industry-lead ambient light cancellation (ALC) circuit, and a picket fence detect and replace function.
Complete single and dual-channel optical data
Acquisition system
Optimized architecture for transmissive and reflective heart rate or SpO2 monitoring
Low Dark Current Noise of < 50pA RMS (Sample to Sample Variance)
Lower effective dark current noise achievable through
Multiple sample modes and On-Chip averaging
High-Resolution, 19-Bit charge integrating ADC
Three low-noise, 8-Bit LED current DACs
Acquisition system
Optimized architecture for transmissive and reflective heart rate or SpO2 monitoring
Low Dark Current Noise of < 50pA RMS (Sample to Sample Variance)
Lower effective dark current noise achievable through
Multiple sample modes and On-Chip averaging
High-Resolution, 19-Bit charge integrating ADC
Three low-noise, 8-Bit LED current DACs
Specifikationer
Attribute | Value |
---|---|
Sensor Technology | Optical |
Sensor Application | Heart Rate Monitoring |
Output Type | Digital |
Series | Maxim Integrated |

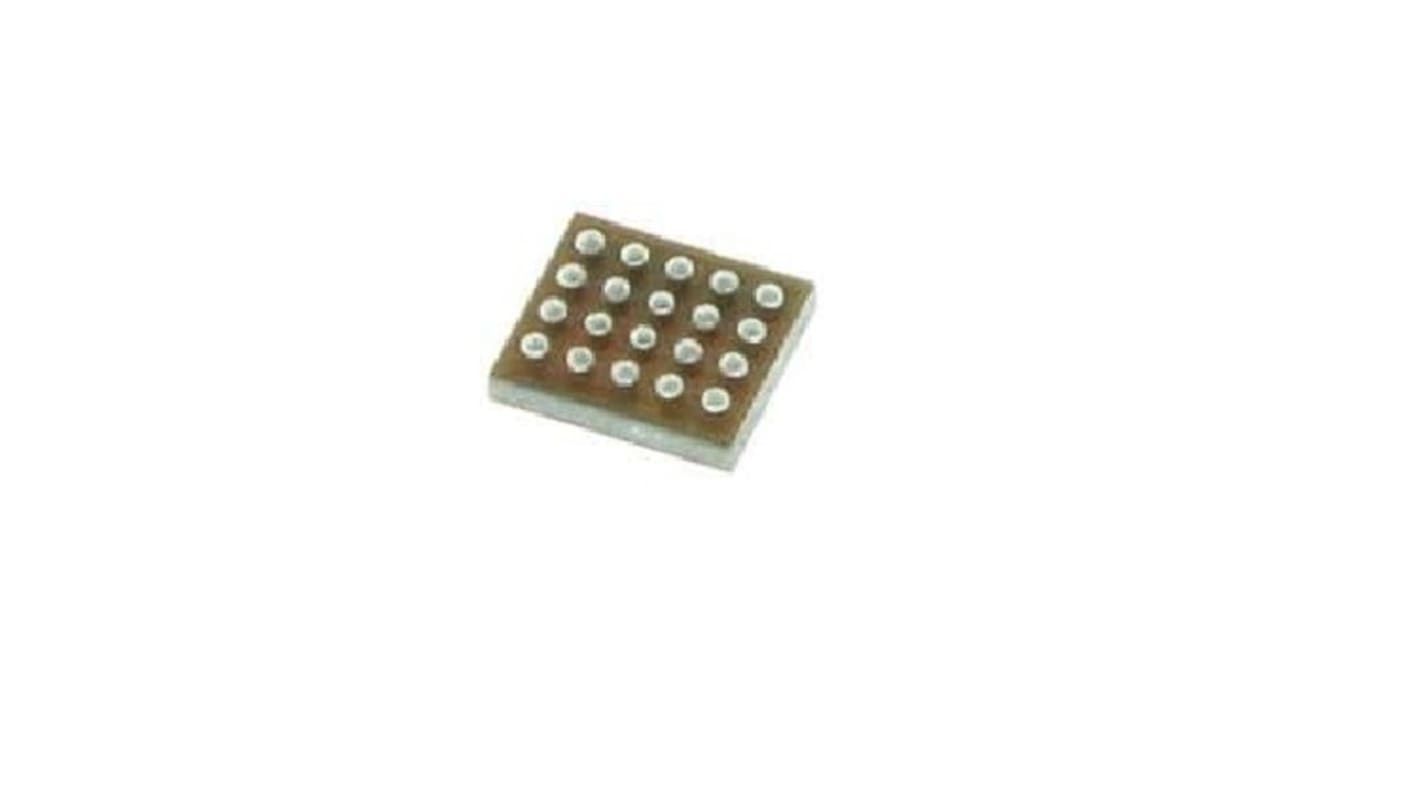

Package Type | THIN-WLP-20 |
Pin Count | 20 |
