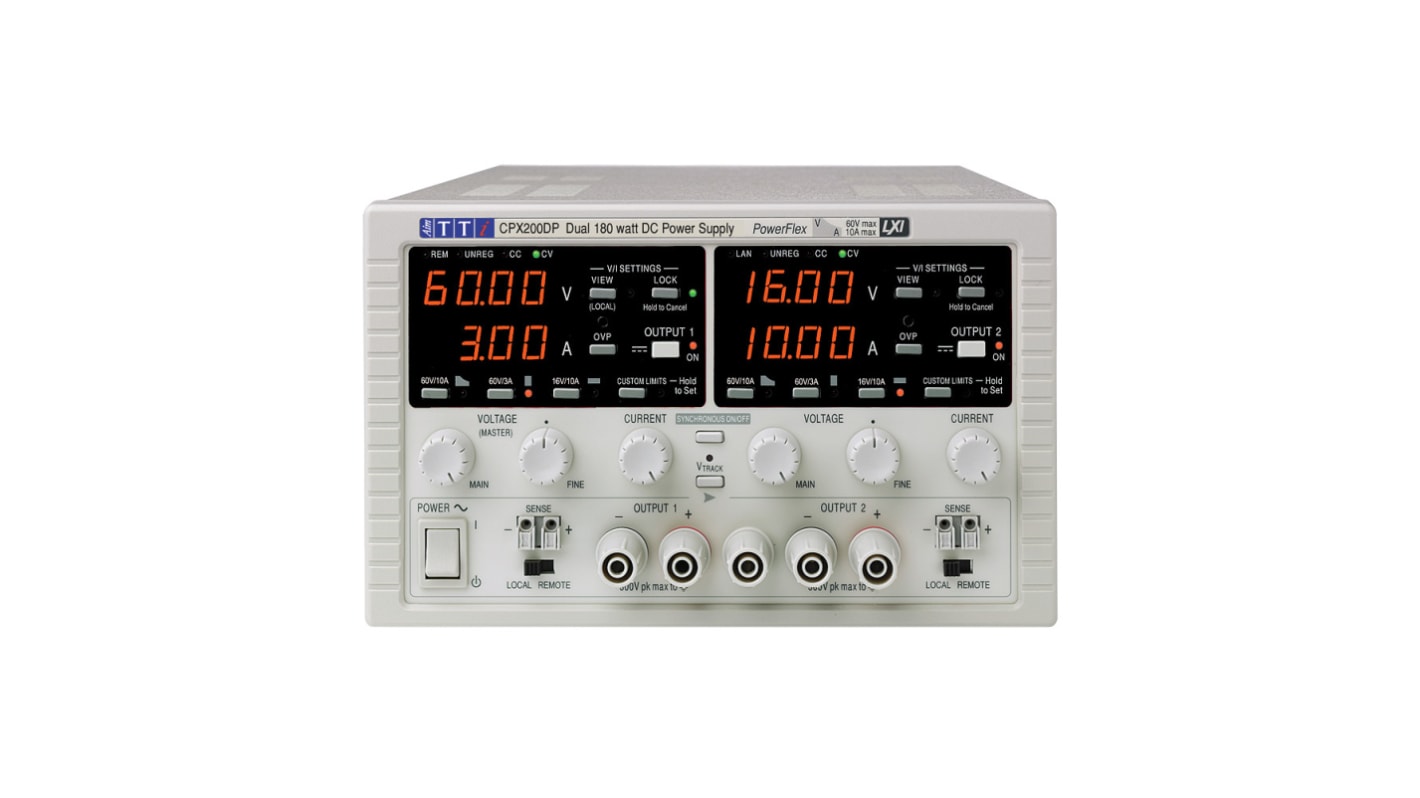

Aim-TTi CPX Series Digital Bench Power Supply, 0 → 60V, 0 → 10A, 2-Output, 360W
- RS-artikelnummer:
- 804-0419
- Tillv. art.nr:
- CPX200DP
- Tillverkare / varumärke:
- Aim-TTi
8 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
14 189,18 kr
(exkl. moms)
17 736,48 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 14 189,18 kr |
- RS-artikelnummer:
- 804-0419
- Tillv. art.nr:
- CPX200DP
- Tillverkare / varumärke:
- Aim-TTi
Datablad
Lagstiftning och ursprungsland
RoHS-status: Undantagen
- COO (Country of Origin):
- GB
Produktdetaljer
Aim-TTi CPX Series Power Supplies CPX200D & CPX200DP
A wide PowerFlex range extends maximum voltage to 60 volts, whilst the maximum current of 10 amps available up to 16 volts. S-Lock, Range Control, Voltage Tracking and Synchronous On/Off. The CPX200DP includes USB, LAN/Lxi, GPIB and RS232 digital interfaces. Test Bridge Data logging and Sequencing software to control up to 4 instruments is included.
Features and Benefits
- PowerFlex design gives variable voltage and current combinations within a maximum power range
- Up to 60V and up to 10A per output (180W maximum per output)
- Low output noise and good transient response
- True analogue controls with digital settings locking
- Independent outputs or isolated voltage tracking
- Outputs can be wired in series or parallel for 120V or 20A
- 4 digit fixed resolution meters; selectable remote sensing
- GPIB, RS-232, USB and LAN/LXi interfaces (CPX200DP only)
- Test Bridge PC Software
- Compact 1/2 rack 3U case for bench use or rack mounting
Supplied with
Test Bridge Logging and sequencing software
- Multi instrument control
- Logging to table and graph format
- Timed sequence control across all instruments and channels
- USB, LAN and RS232 compatible
Specifikationer
Attribute | Value |
|---|---|
| Series | CPX |
| Model Number | CPX200DP |
| Number of Outputs | 2 |
| Output Voltage | 0 → 60V |
| Supply Voltage | 110 → 240V ac |
| Output Current | 0 → 10A |
| Power Rating | 360W |
| Number of Displays | 4 |
| Type | Digital |
| Bench Power Supply Type | Autoranging Power Supply |
| Digital/Analogue | Digital |
| Output Connector | Binding Post Terminal |
| Input Connector | IEC 320 |
| Minimum Temperature | +5°C |
| Maximum Temperature | +40°C |
