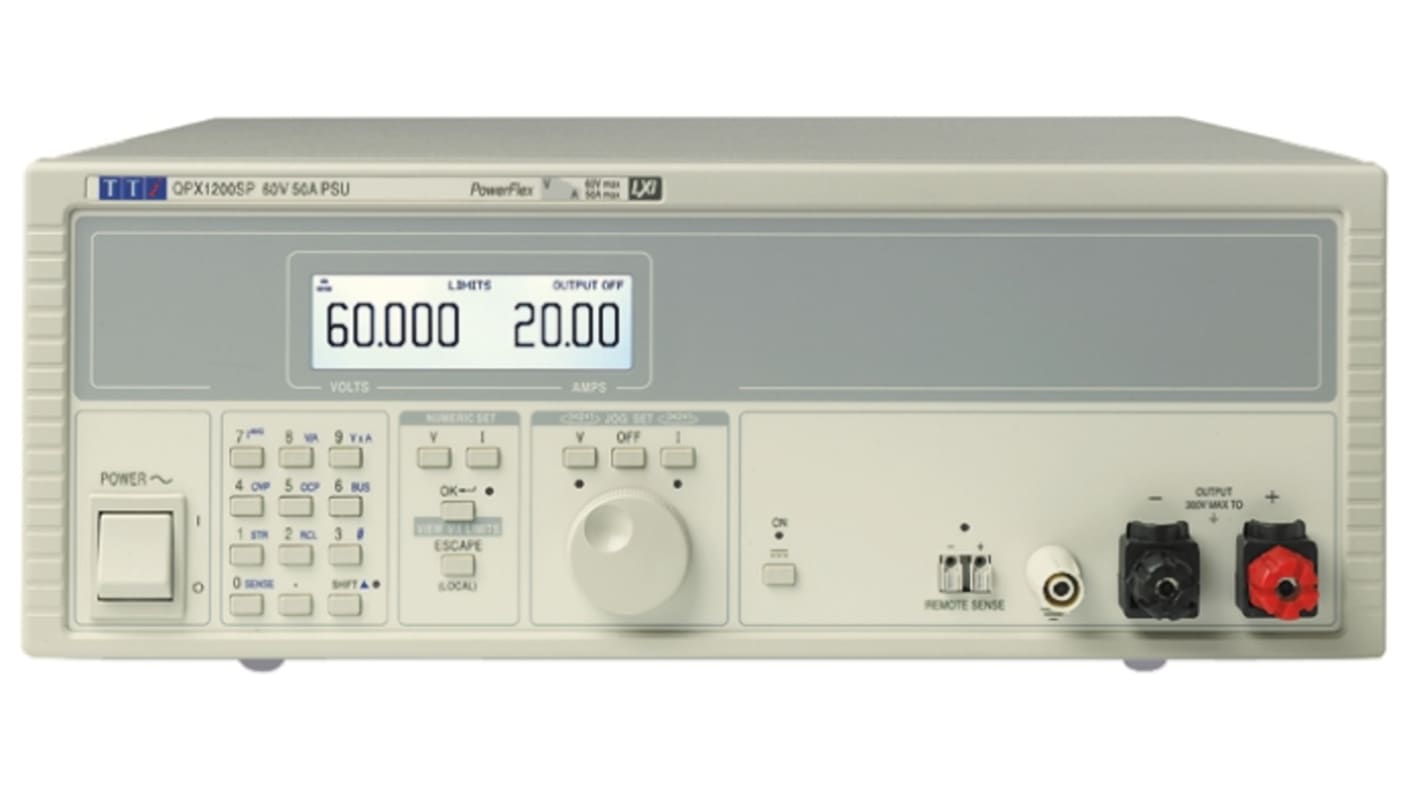

Aim-TTi Digital Bench Power Supply 1.2kW, 1 Output 0 → 60V 0 → 50A With UKAS Calibration

  • RS-artikelnummer 729-0768
  • Tillv. art.nr QPX1200S
  • Tillverkare / varumärke Aim-TTi
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): GB
Produktdetaljer

1.2KW PowerFlex, 60V/50A QPX1200S & SP

Suitable for bench or system use with terminals front and rear. The PowerFlex design offers voltage and current combinations between 60V/20A and 20V/50A. Mixed mode regulation with linear output stage gives low output noise. Both versions include an analogue interface. The SP version includes USB, RS232, GPIB and LAN (Ethernet) with support for LXI.

PowerFlex design gives variable voltage/current combinations
Up to 60V and up to 50A within power envelope
Setting by direct numeric entry or spin wheel
High setting resolution 1mV
3U sized casing suitable for bench-top or rack mounted use, front and rear terminals
Analogue remote control interface
Full range of digital interfaces, RS232, USB,LXI compliant LAN and GPIB (QPX1200SP only)

Note

Interfaces are standard analogue ( 731-2858 ) +LXi, USB, RS232, GPIB ( 731-2852 )

Supplied with

Manual, mains lead and CD containing driver software

//media.rs-online.com/t_line/L6654915-01.gif
Specifikationer
Attribute Value
Output Voltage 0 → 60V
Output Current 0 → 50A
Number of Outputs 1
Type Digital
Power Rating 1.2kW
Supply Voltage 110 → 240V ac
Number of Displays 2
Calibrated UKAS
Minimum Temperature +5°C
Maximum Temperature +40°C
5 I lager för leverans inom 3-5 arbetsdagar
Pris (ex. moms) Each
15 206,66 kr
(exkl. moms)
19 008,32 kr
(inkl. moms)
Enheter
Per unit
1 +
15 206,66 kr
Nästa dag-leverans inte möjlig
