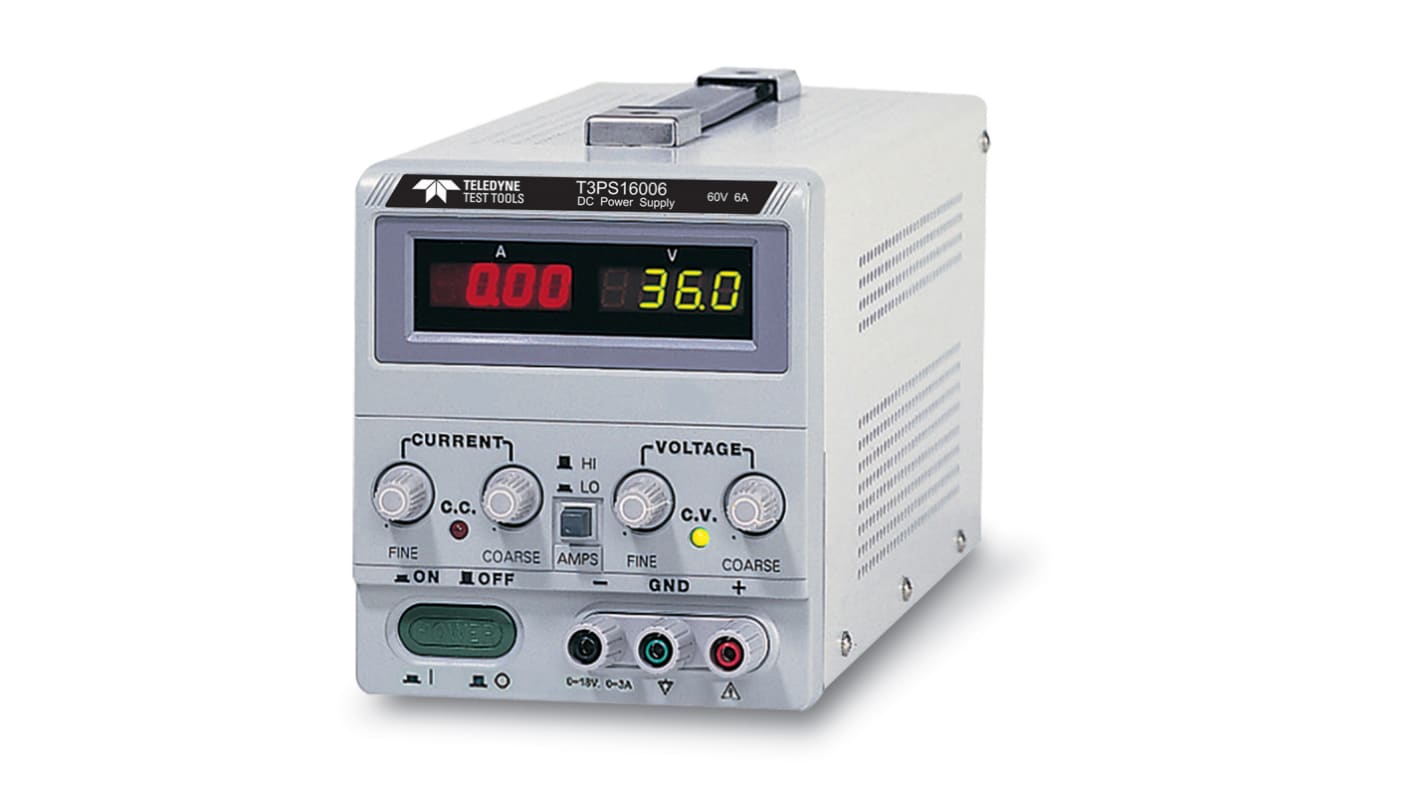

Teledyne LeCroy T3PS Series Digital Bench Power Supply, 0 → 60V, 0 → 6A, 1-Output, 360W
- RS-artikelnummer:
- 195-4323
- Tillv. art.nr:
- T3PS16006
- Tillverkare / varumärke:
- Teledyne LeCroy
Tillfälligt slut i lager – restorder för leverans 2024-07-08
Nästa dag-leverans inte möjlig
Lagt till varukorgen
Pris (ex. moms) Varje
11 100,00 kr
(exkl. moms)
13 875,00 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 11 100,00 kr |
Alternativ
Denna produkt är för närvarande inte tillgänglig. Vi rekommenderar denna produkt istället.
- RS-artikelnummer:
- 195-4323
- Tillv. art.nr:
- T3PS16006
- Tillverkare / varumärke:
- Teledyne LeCroy
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer
The T3PS1000 Series are single output, 360 W, switching DC power supplies. OVP protects the T3PS1000 Series and their load from unexpected conditions. High regulation is maintained at 0.01%. Remote sensing adds an extra level of precision by compensating for cable losses between the power supply and load. Turning the output On/Off from an external device is available through Remote control terminals.
The T3PS1000 Series is an ideal solution for power-efficient bench-top or portable applications requiring high regulation.
The T3PS1000 Series is an ideal solution for power-efficient bench-top or portable applications requiring high regulation.
Three independent isolated outputs.
Flexible output configurations of Ch1 and Ch2
Independent Mode: 2 x 0-30V / 0-6A or 0-60V / 0-3A.
Series Mode: 0-6A / 0-60V or 0-120V / 0-3A.
Parallel Mode: 0-30V / 0-12A or 0-60V / 0-6A.
375 Watt high power density switching DC power supply design.
Main outputs support Constant Voltage or Constant Current operation.
Third output offers 0.1 - 5 V / 0 - 3 A.
Temperature controlled fan for quiet operation.
Remote on / off control of the output (not programmable).
Flexible output configurations of Ch1 and Ch2
Independent Mode: 2 x 0-30V / 0-6A or 0-60V / 0-3A.
Series Mode: 0-6A / 0-60V or 0-120V / 0-3A.
Parallel Mode: 0-30V / 0-12A or 0-60V / 0-6A.
375 Watt high power density switching DC power supply design.
Main outputs support Constant Voltage or Constant Current operation.
Third output offers 0.1 - 5 V / 0 - 3 A.
Temperature controlled fan for quiet operation.
Remote on / off control of the output (not programmable).
Specifikationer
Attribute | Value |
|---|---|
| Series | T3PS |
| Model Number | T3PS16006 |
| Number of Outputs | 1 |
| Output Voltage | 0 → 60V |
| Supply Voltage | 230V ac |
| Output Current | 0 → 6A |
| Power Rating | 360W |
| Number of Displays | 2 |
| Type | Digital |
| Bench Power Supply Type | Switching Power Supply |
| Digital/Analogue | Digital |
| Minimum Temperature | 0°C |
| Maximum Temperature | +40°C |
