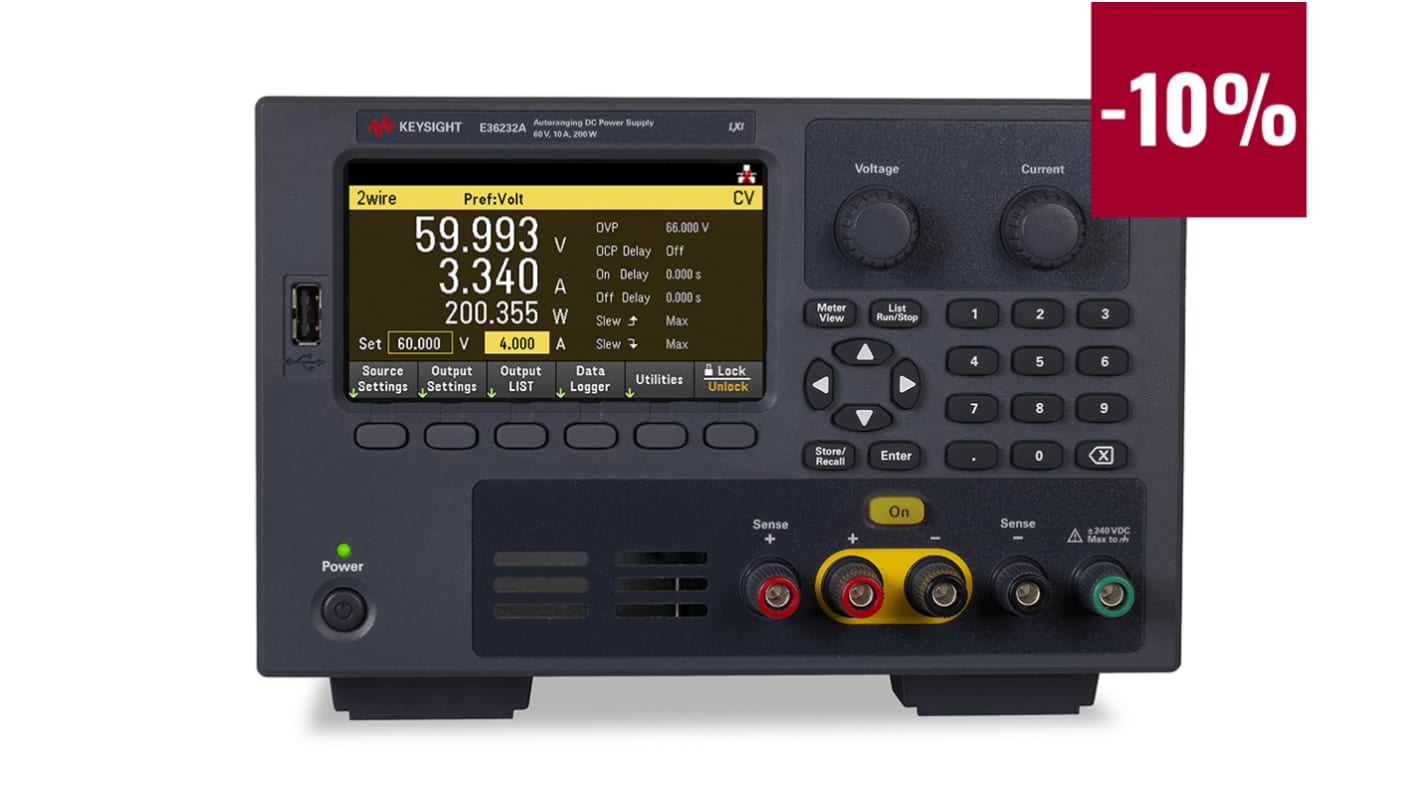

Keysight Technologies E36200 Series Digital Bench Power Supply, 0 → 60V dc, 0 → 10A, 1-Output, 200W - RS
- RS-artikelnummer:
- 187-3445
- Tillv. art.nr:
- E36232A
- Tillverkare / varumärke:
- Keysight Technologies
1 I lager för leverans inom 3-5 arbetsdagar
Nästa dag-leverans inte möjlig
Lagt till varukorgen
Pris (ex. moms) Varje
18 673,10 kr
(exkl. moms)
23 341,38 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 18 673,10 kr |
- RS-artikelnummer:
- 187-3445
- Tillv. art.nr:
- E36232A
- Tillverkare / varumärke:
- Keysight Technologies
Lagstiftning och ursprungsland
- COO (Country of Origin):
- MY
Produktdetaljer
The E36200 series consists of two 200 W single output power supplies and two 400 W dual output power supplies. Auto ranging technology provides the highest current available at all output voltage. Power devices with up to 40 A (E36233A) or voltage up to 120 V (E36234A) using auto-parallel or auto-series to internally connect the two outputs into a single output with twice the power. A single output supply can power devices requiring up to 200 W. A dual output supply provides two independent 200 W channels which can be combined into a single 400 W channel.
Auto ranging more current at all voltage settings
Auto-parallel for higher current up to 40 A
Auto-series for higher voltage up to 120 V
Variable slew rate to control inrush current
Low noise, DUT protection & precision measurements
350 μVrms noise
Overvoltage, overcurrent and over-temperature protection
Local 2–wire or remote 4-wire measurements
Low range current measurement
Fully programmable power supply
USB, LAN, digital I/O and optional GPIB
BenchVue PS application
E3633A/34A mode
Advanced features
Data logger
Output LIST
RS are offering an exclusive -10% off on selected Keysight E36xxx Power Supply models from the 1st March – 31st August 2024. The RS price has been updated to reflect the change. The promotion is available in EMEA only and applies to new and existing customers.
Specifikationer
Attribute | Value |
|---|---|
| Series | E36200 |
| Model Number | E36232A |
| Number of Outputs | 1 |
| Calibrated | RSCAL |
| Supply Voltage | 100 → 240V ac |
| Output Voltage | 0 → 60V dc |
| Output Current | 0 → 10A |
| Power Rating | 200W |
| Number of Displays | 1 |
| Bench Power Supply Type | Autoranging Power Supply |
| Type | Digital |
| Digital/Analogue | Digital |
| Minimum Temperature | 0°C |
| Maximum Temperature | +40°C |
