RS PRO Bench Power Supply, 0 → 30V, 3A, 3-Output, 195W
- RS-artikelnummer:
- 123-3566
- Tillverkare / varumärke:
- RS PRO
Denna produkt har utgått
Alternativ
Denna produkt är för närvarande inte tillgänglig. Vi rekommenderar denna produkt istället.
- RS-artikelnummer:
- 123-3566
- Tillverkare / varumärke:
- RS PRO
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer

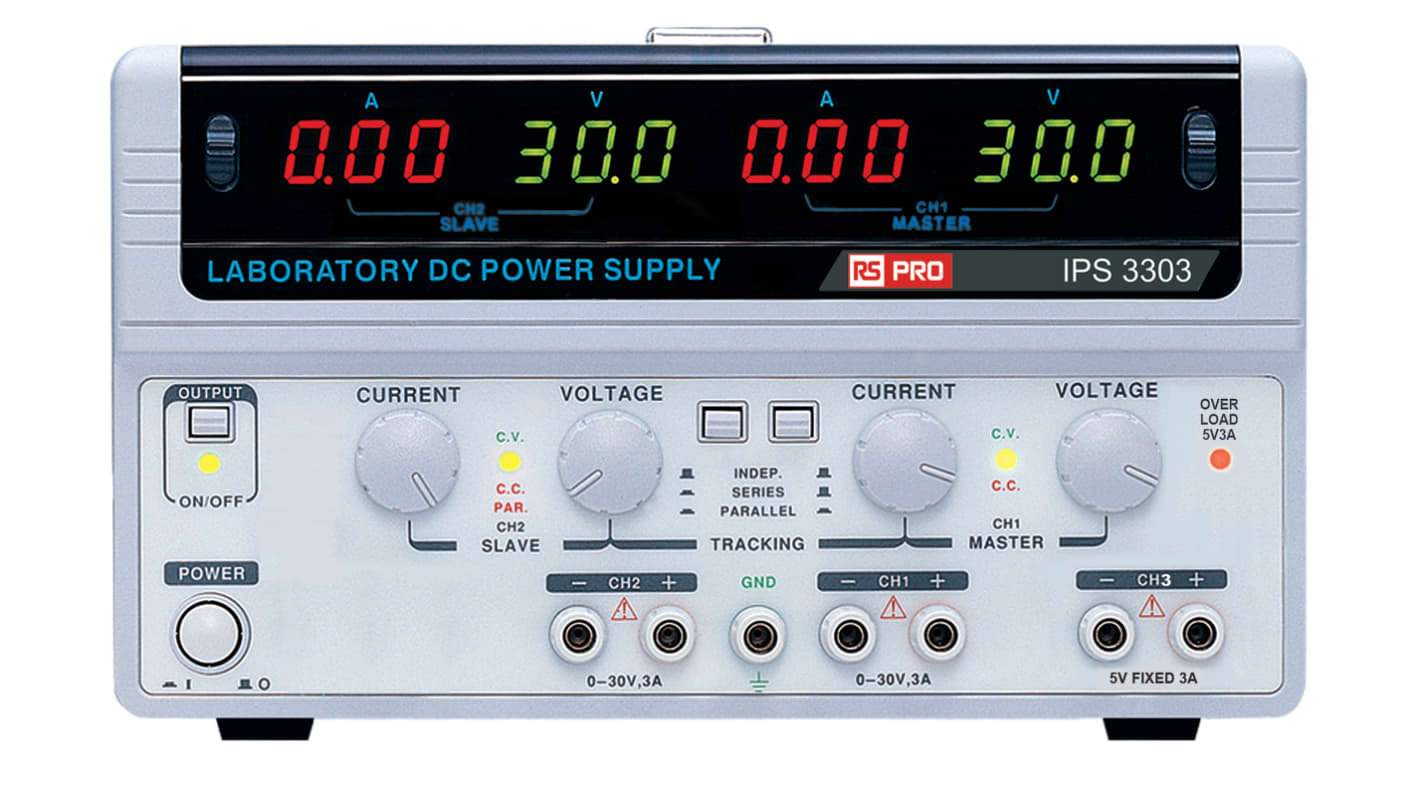

RS Pro IPS Multiple Output Linear DC Power Supply, bundle, containing Japanese mains power lead and spare fuse
RS Pro IPS Series 3 channel linear DC power supply is an entry-level general purpose power supply recognised for its affordability. 195W power rating, overload and reverse polarity protection, and an output ON / OFF switch for safety. Tracking mode switches allow voltage/current to be output in parallel or series and an intelligent fan reduces noise.
Features and Benefits
3 independent isolated outputs
4 LED display sets (3-digit)
0.01% load and line regulation
Low ripple and noise
Tracking and auto Series/Parallel operation
Output ON / OFF switch
Output voltage and current setting when output disabled
Fan speed control circuit to minimise fan noise
Overload and reverse polarity protection
Power source AC 100 V / 120 V / 220 V ±10%, 230 V (+10% ∼ -6%), 50 / 60 Hz
Dimensions 255 x 145 x 265 mm
Weight approximately 7 kg
Supplied with
User manual, Japanese mains power cord and 6.3A replacement fuse.
Specifikationer
Attribute | Value |
|---|---|
| Number of Outputs | 3 |
| Supply Voltage | 100 → 230V ac |
| Output Voltage | 0 → 30V |
| Output Current | 3A |
| Power Rating | 195W |
| Number of Displays | 4 |
| Type | Digital, Linear |
| Input Connector | IEC 320 |
| Output Connector | Plug-In Terminal Block |
| Maximum Temperature | +40°C |
| Minimum Temperature | 0°C |
