- RS-artikelnummer:
- 185-4762
- Tillverkare / varumärke:
- RS PRO
73 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
11,92 kr
(exkl. moms)
14,90 kr
(inkl. moms)
Enheter | Per unit |
1 + | 11,92 kr |
- RS-artikelnummer:
- 185-4762
- Tillverkare / varumärke:
- RS PRO
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer

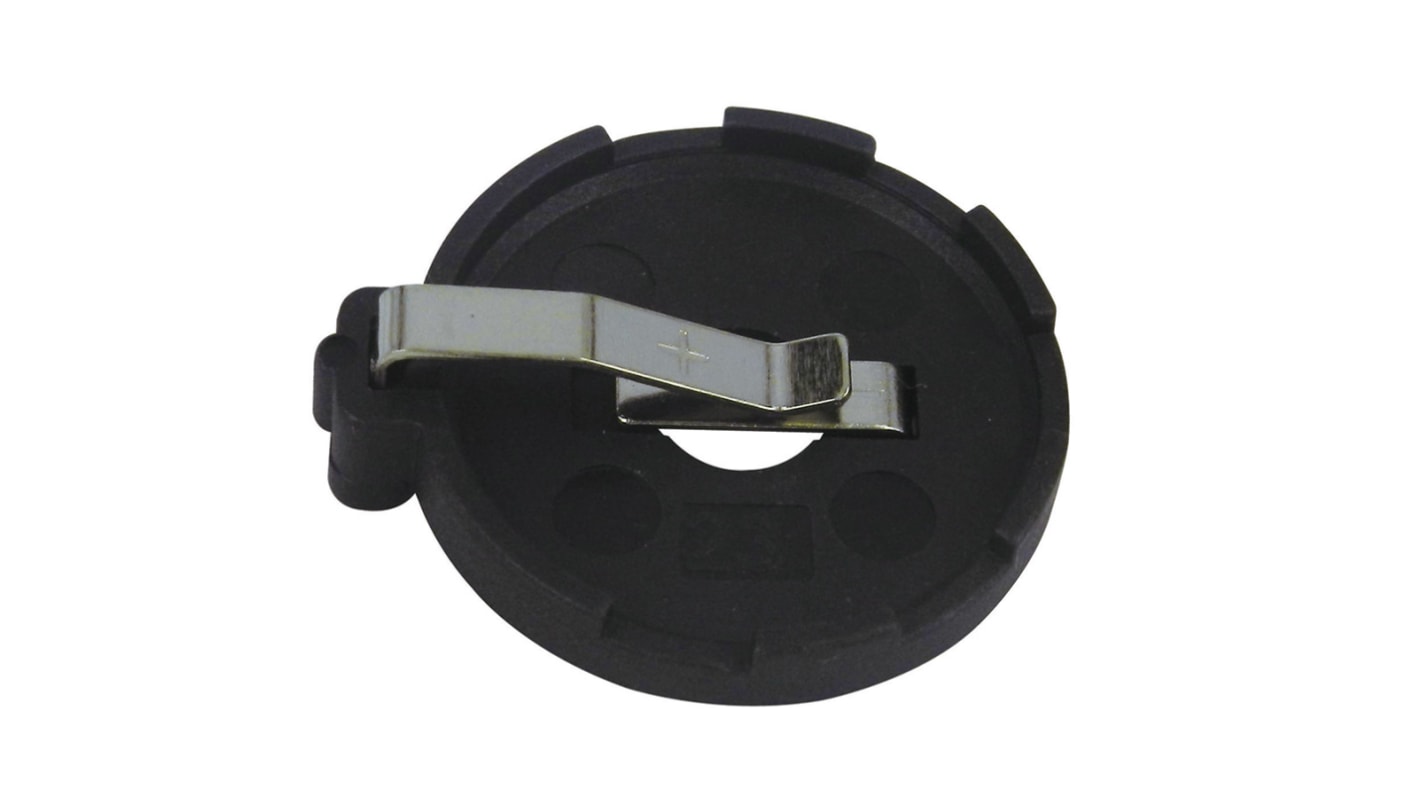

RS PRO Battery Holder
The RS PRO battery holder is suitable for a CR2325 battery and it has dimensions of 29mm x 25.4mm. It has a voltage rating of 500V (AC/DC) and a current rating of 3A.
Features and Benefits
Material: PBT
Operating temperature ranges between -40°C and 105°C
Contact: Electrode: Phosphor bronze 0.6mm thick gold 1u plated over nickel 5u minimum
Insulation resistance: 500megaohms
Contact resistance: 12milliohms maximum
Humidity: 40°C
Operating temperature ranges between -40°C and 105°C
Contact: Electrode: Phosphor bronze 0.6mm thick gold 1u plated over nickel 5u minimum
Insulation resistance: 500megaohms
Contact resistance: 12milliohms maximum
Humidity: 40°C
Certifications
UL 94V0 approved
Specifikationer
Attribute | Value |
---|---|
Type | Battery Holder |
Dimensions | 29 x 25.4mm |
Body Material | PBT |
